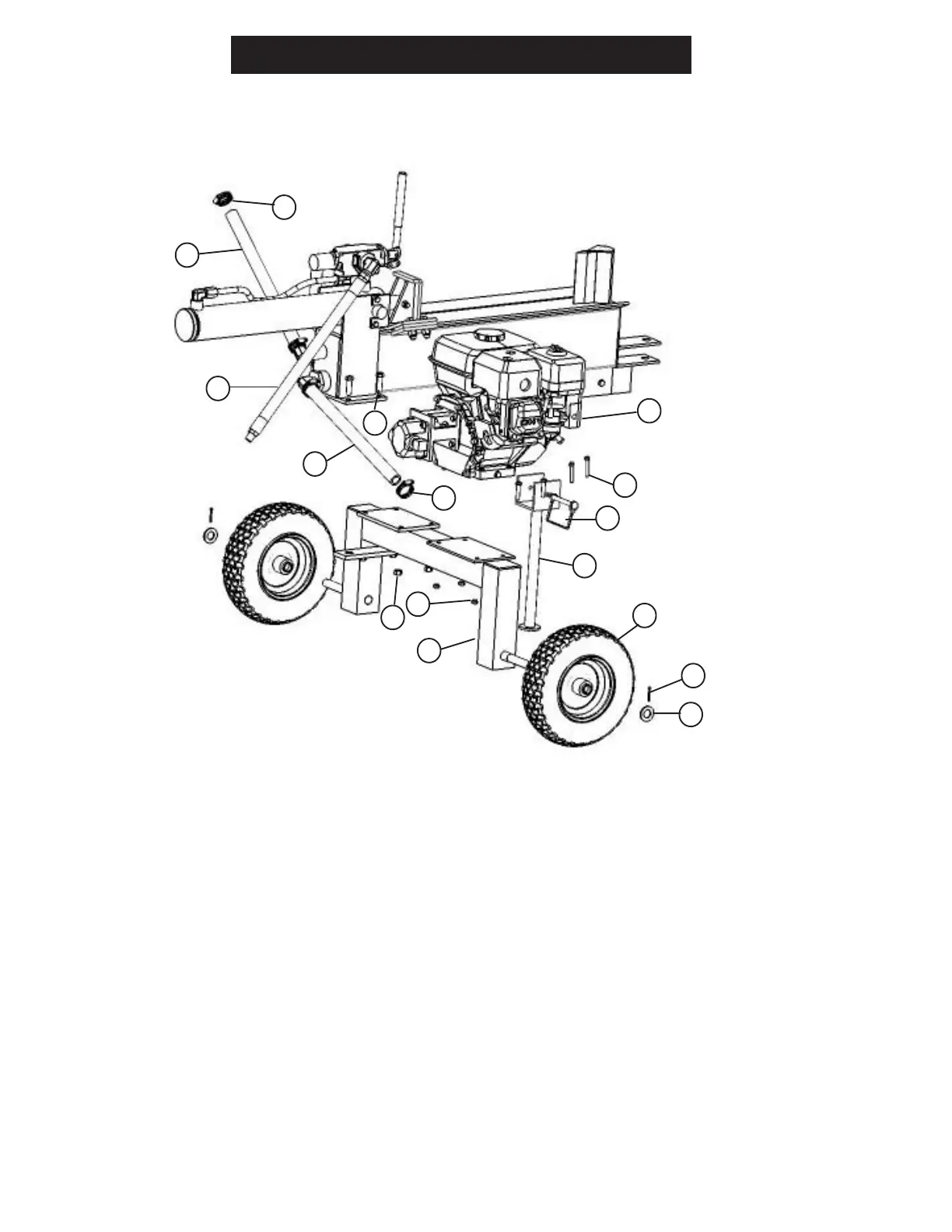

SpeeCo SplitMaster 40151000 - Parts List and Illustrations; Illustration 1: General Assembly Diagram

Reference Part No. Description Quantity
No.
1 40127800 Frame/Axle 1
2 40035500 Tire 2
3 O/L 1/8” x 1” Cotter Pin 2
4 O/L 3/4” Washer 2
5 07096700 Lock Pin 1
6 O/L 5/16” x 1-1/2” Hex Cap Bolt 4
7 40128000 Ground Stand 1
8 O/L 7/16” x 1-1/2” Hex Cap Bolt 4
9 O/L 5/16” Nut 4
10 O/L 7/16” Nut 4
11 39031600 Hose Clamp 2
12 39038200 Suction Hose and Return Hose 2
13 39026100 Pressure Hose 1
14 39053900 6.5 HP SpeeCo Engine 1
Page 10
Illustration 1
4
3
2
5
1
9
10
14
12
13
12
11
8
11
6
7
MODEL NO. 40151000 LOG SPLITTER
