MODEL NO. 40151000 LOG SPLITTER
Page 11
Reference Part No. Description Quantity
No.
1 40128100 Tank/beam 1
2 O/L 3/8” Nylock Nut 1
3 40128300 Push Plate 1
4 O/L 3/8” x 2-1/2” Hex Cap Bolt 1
5 39039100 Swivel Elbow, 3/4”, 1/2” 1
6 390410C0 Auto-Return Valve 1
7 39034300 1/2”-1/2” Hex Nipple 1
8 39013300 2-3/4” x 18” Cylinder 1
9 39031100 3/4 in. NPTF -1/2 in. NPTF Reducer Bushing 2
10 39026100 Pressure Hose 1
11 39032400 3/4”x 45° Elbow 2
12 39038000 Hydraulic Cylinder Tubing 1
13 O/L 5/16” x 5/8” Hex Cap Bolt 4
14 40128500 Cylinder Retainer 2
15 39038200 3/4” x16” Return Hose 1
16 39031600 Hose Clamp 2
17 39032000 3/4” NPT-3/4” Tube 90° 2
18 39038200 3/4” x 16” Suction Hose 1
19 39090200 Suction Filter 1
20 40128900 Breather Tube 1
21 40127900 Tongue 1
22 O/L 3/8” x 3-1/2” Bolt 2
23 O/L 3/8” Nut 2

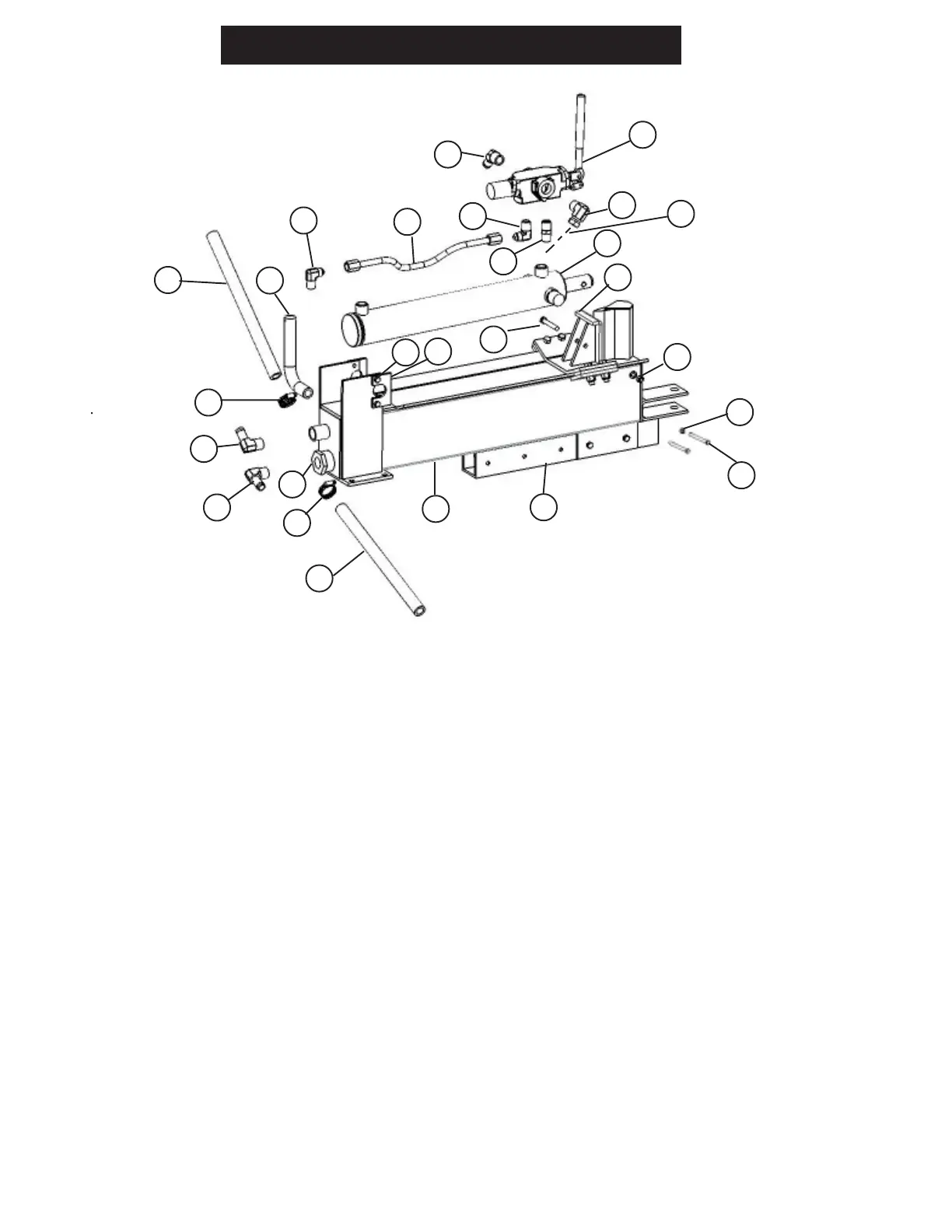

Illustration 2
21
18
16
19
3
8
4
2
17
17
15
9
12
9
6
5
7
11
10
22
1
16
23
13
14
20
