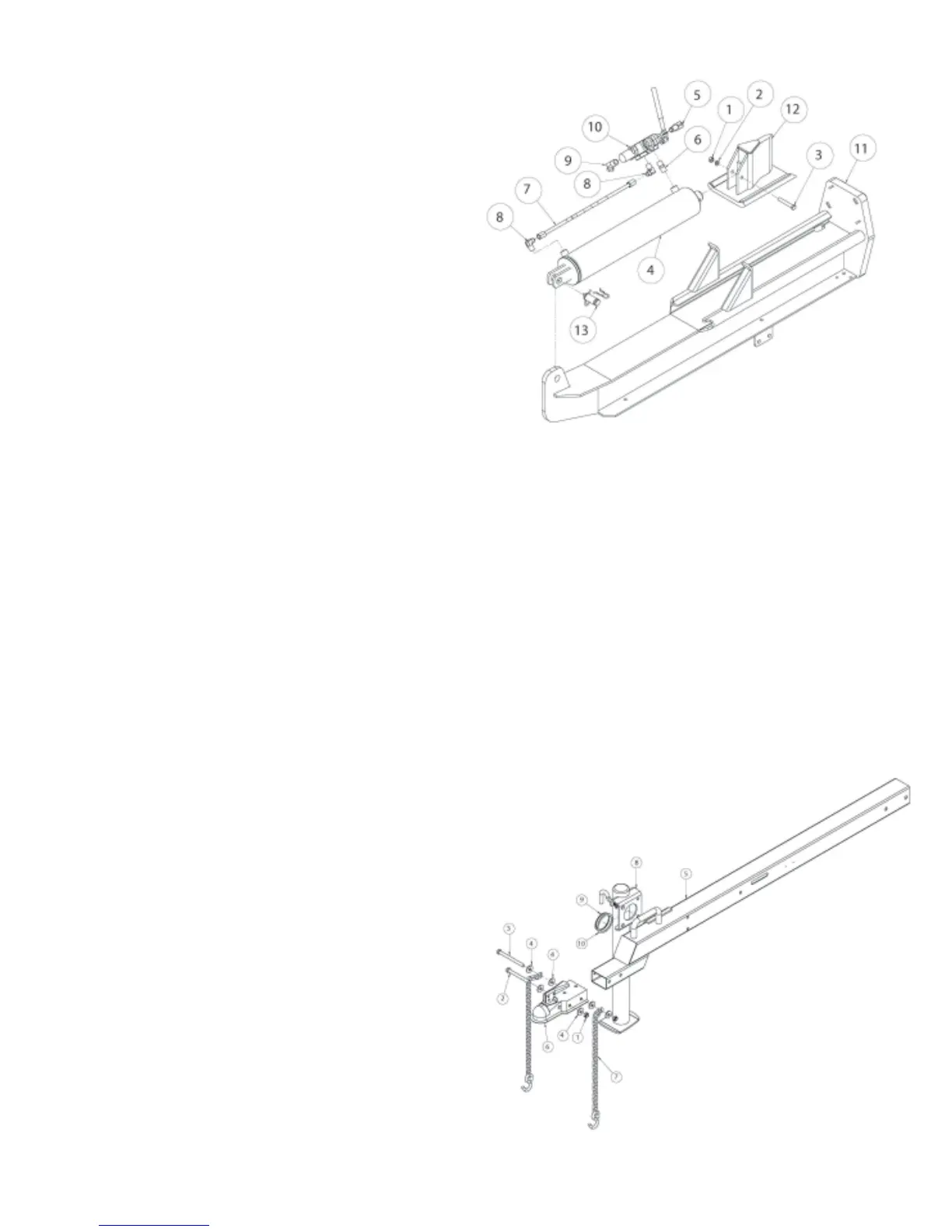

BEAM ASSEMBLY BREAKDOWN
ITEM NO. PART NO. DESCRIPTION QTY
1 O/L 1/2” Hex Nut 1
2 O/L 1/2” Regular Lock Washer 1
3 O/L 1/2” x 3-1/4” Hex Bolt 1
4 390119B0 4.5” x 24” Hydraulic Cylinder 1
5 39032000 3/4” NPT x 3/4” Tube 1
6 39034300 1/2” NPT Nipple 1
7 39034600 1/2” Steel Tubing 1
8 39034700 1/2” Pipe to Steel Tubing 2
9 39039000 45° Fitting, 34” Male, 1/2” Fem. 1
10 390406SC Auto-Return Valve 1
11 401413S0 Beam 1
12 40141800 Wedge 1
13 07073100 Cylinder Pin 1
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
TONGUE ASSEMBLY BREAKDOWN
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L M10 x 1.5 Nylock Nut 2
2 O/L M10 x 1.5 x 100mm GR5 Hex Bolt 1
3 O/L M10 x 1.5 x 120mm GR5 Hex Bolt 1
4 O/L M10 Flat Washer 5
5 401273A0 Tongue 1
6 40034600 Hitch Ball Assembly 1
7 400323A0 Chain 2
8 40127400 Ground Stand Assembly 1
9 9114-1 Retaining Ring 1
10 9132-1 Spacer Washer 1
