SpeeCo Splitmaster 401628BB - Parts Breakdown; Tank;Engine and Pump;Engine Components

ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L 5/16”-18 UNC Nylock Nut 4
2 O/L 5/16” Flat Washer 8
3 O/L 5/16” x 1-1/2” GR5 Hex Bolt 4
4 39027400 Return Line Hose 1
5 39027500 1/2” x 38” Hydraulic Pressue Hose 1
6 39032000 3/4” NPT x 3/4” Tube 1
7 39034900 3/4” Hex Nipple 1
8 39038100 Straight Fitting, 3/4”NPT to 1/2” Tube 1
9 39038900 1” ID Suction Hose 1
10 390604B0 Filter Base 1
10A 390601A0 Filter Element 1
11 39073200 Briggs & Stratton 1350/Pump Assy. 1
12 39031600 Worm Gear Clamp 3
13 401188PB Tank 1
14 071022WC Pivot Pin 1
15 O/L 1/2”-3/4” Hairpin Cotter 1
16 3903750 Dip Stick/Breather Cap 1
17 390601A0 Filter Element 1
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.

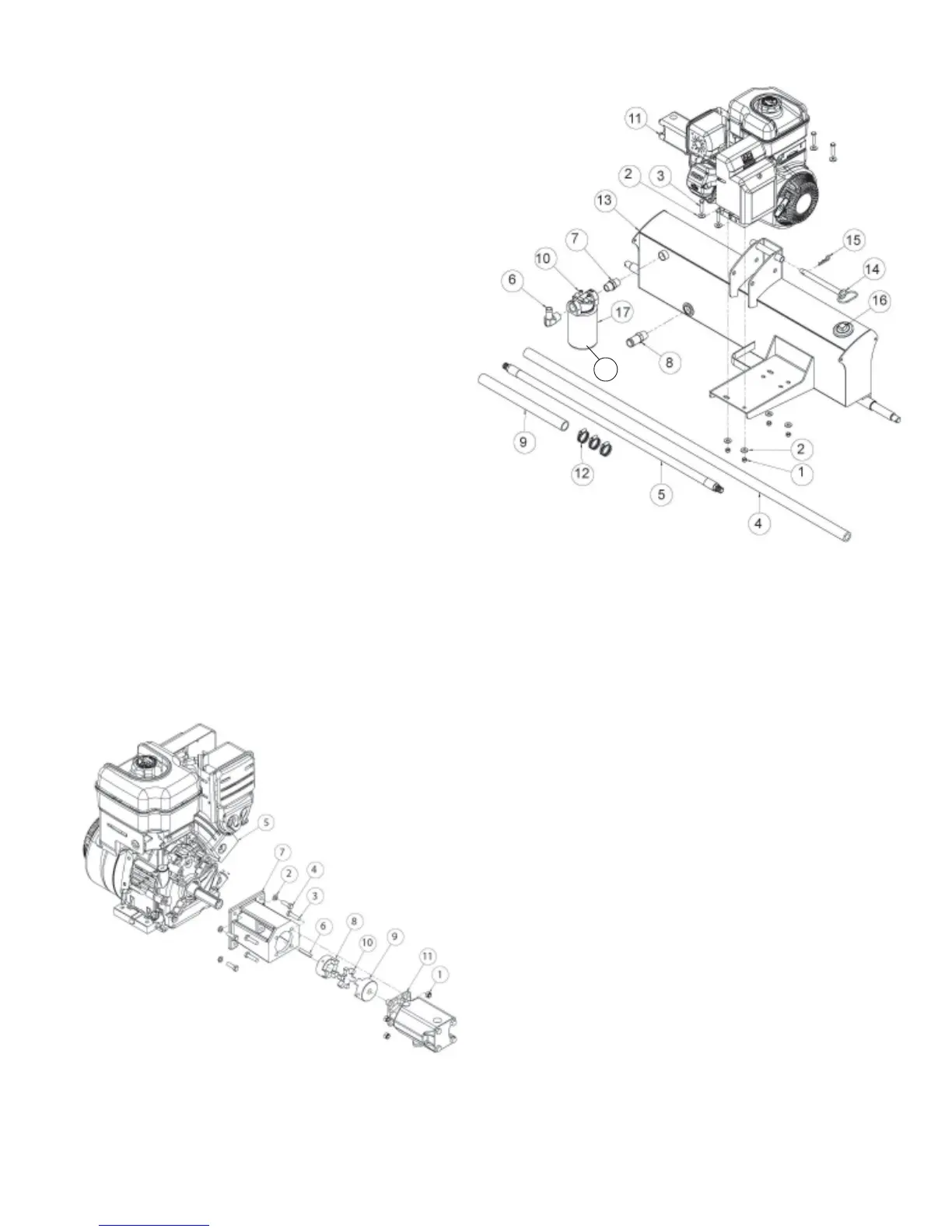

PUMP/ENGINE ASSEMBLY BREAKDOWN
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L 5/16”-18 UNC Nylock Nut 4
2 O/L 5/16” Regular Lock WAsher 4
3 O/L 5/16” x 1-1/4”GR5 Hex Bolt 4
4 O/L 5/16” x 1 UNF GR5 Hex Bolt 4
5 39054500 Briggs & Stratton 1450 Engine 1
390545CA Briggs & Stratton 1450 Engine (CA) 1
6 40034300 1/4” Square x 1-1/2” Square Key 1
7 40081800 Pump Mount 1
8 400825L0 Jaw Coupler 1” Bore 1
9 400826L0 Jaw Coupler 1/2” Bore 1
10 400827L0 Rubber Coupler Spider 1
11 39070900 16 GPM Pump 1
TANK/ENGINE ASSEMBLY BREAKDOWN
Page 10
10A
