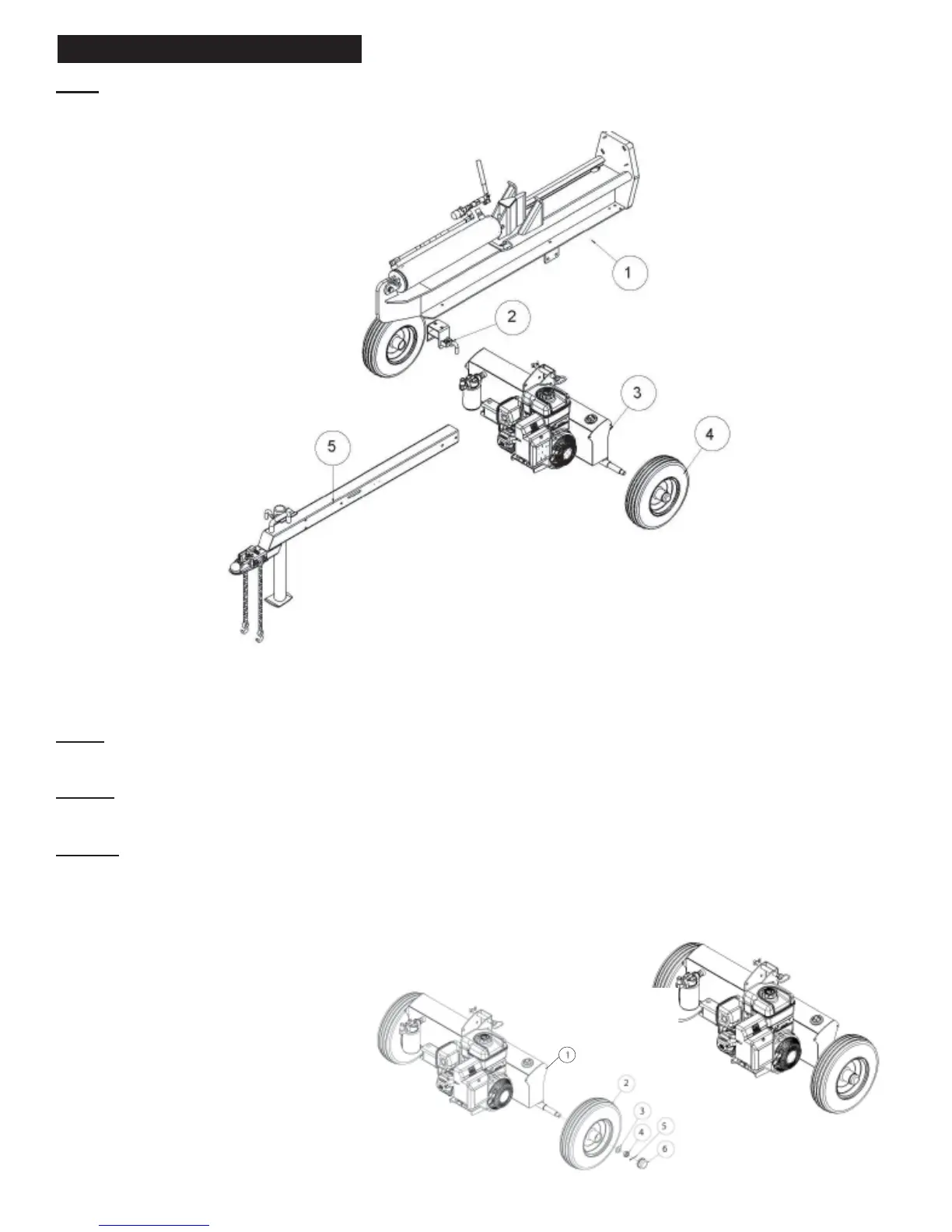

ASSEMBLY INSTRUCTIONS
NOTE: This log splitter was partially assembled at the factory. Refer to the drawing and parts list should it become
necessary to disassemble the unit for repair or replacement of parts.
STEP 1: Remove all the components from the crate. Inspect each piece for shipping damage. If any part is damaged,
contact your dealer or delivering carrier.
Page 7
NOTE: This log splitter was partially assembled at the factory. Refer to the drawings and parts list should it become
necessary to disassemble the unit for repair or replacement of parts
1 401612S0 Beam Assembly 1
2 40127500 Beam Lock Assembly 1
3 40160900 Tank Assembly 1
401609CA Tank Assembly (CA) 1
4 400312B0 Tire and Wheel 2
5 40127300 Tongue Assembly 1
40115400 Hardware Kit 1
STEP 2: Attach the two wheels (2) to the tank assembly (1) wheel spindles using the 3/4” light flat washers(3) ,3/4” NF
slotted nuts (4), 1/8” x 1-1/2” cotter pins (5) and the hub caps (6). These items are in the hardware package.
Tighten the slotted nuts and make sure the wheels rotate freely.
ITEM NO. PART NO. DESCRIPTION QTY.
1 40160900 Tank Assembly 1
401609CA Tank Assembly (CA) 1
2 400312B0 Wheel Assembly 2
3 O/L 3/4” Light Flatwasher 2
4 17012000 3/4” Slotted Nut 2
5 O/L 1/8” x 1-1/2” Cotter Pin 2
6 40033200 Hub Cap 2
To Next Page
