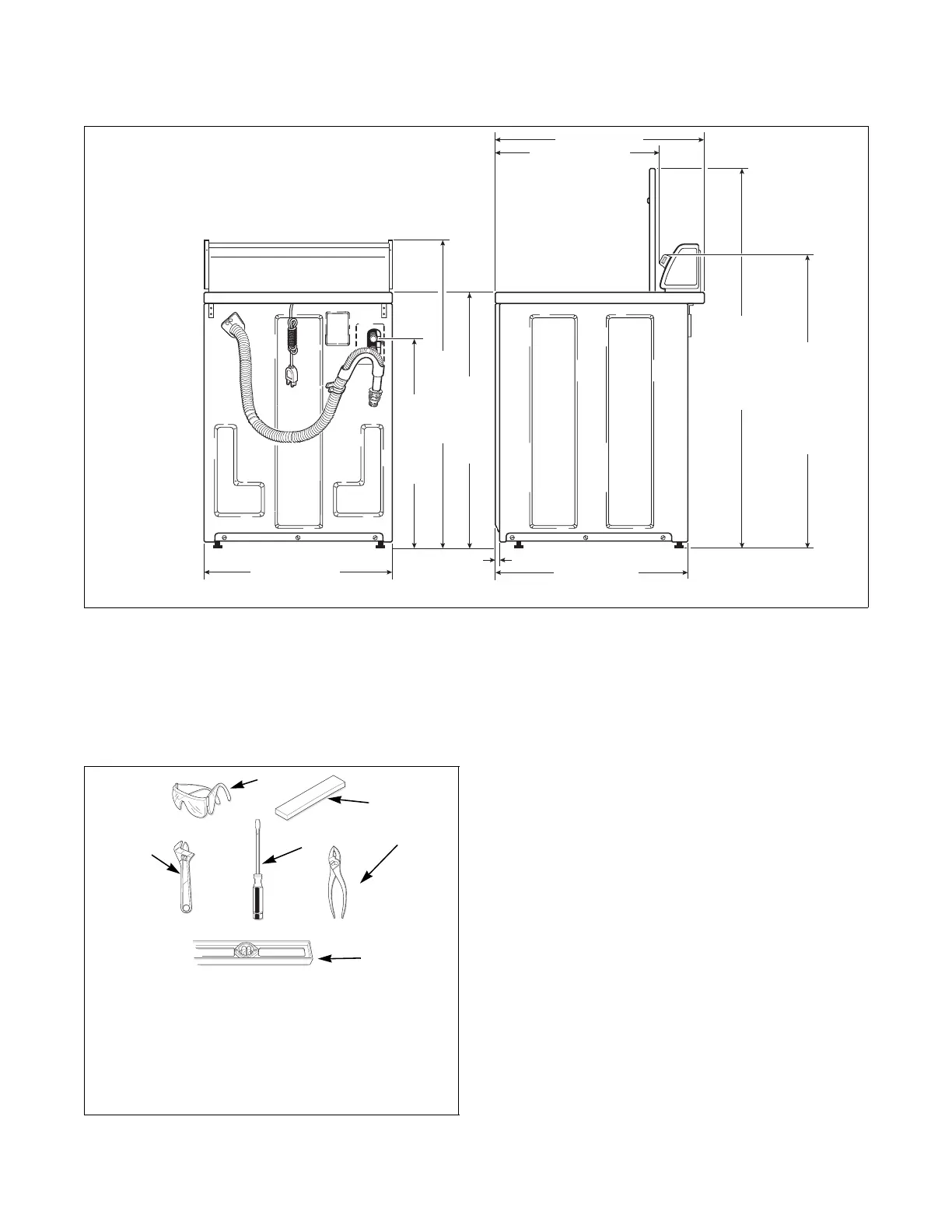

Washer Dimensions
Before You Start
Supplies
For most installations, the basic supplies you will need
are:
Parts Included
An accessories bag has been shipped inside your
washer. It includes:
• Two fill hoses with washers and filter screens.
Refer to step 3 of Installation.
• Four rubber feet. Refer to step 5 of Installation.
• Beaded strap. Refer to step 4 of Installation.
• Installation Instructions.
• User’s Guide.
• Product Registration Card.
• Warranty Bond.
NOTE: If the washer is delivered on a cold day
(below freezing), or is stored in an unheated room
or area during the cold months, do not attempt to
operate it until the washer has had a chance to
warm up.
NOTE: Install dryer before washer. This allows
room for attaching exhaust duct.
*With leveling legs turned into base.
TLW2075N
Figure 1
28 in. (71.1 cm)
*53 in. (134.6 cm)
.4 in.
(10.2 mm)
26 in. (66 cm)25.6 in. (65 cm)
*29 in. (73.7 cm)
*43 in. (109.2 cm)
*36 in. (91.4 cm)
22.13 in. (56.2 cm)
*40.25 in. (102.2 cm)
TLW1978N
1 Safety Glasses
2 Wood Block
3 Wrench
4 Screwdriver
5 Pliers
6 Level
Figure 2
2
5
6
4
3
