VAJRA80 Rotorcraft User's manual
23 / 36
7.Connect 5.8G transmitter(FPV)

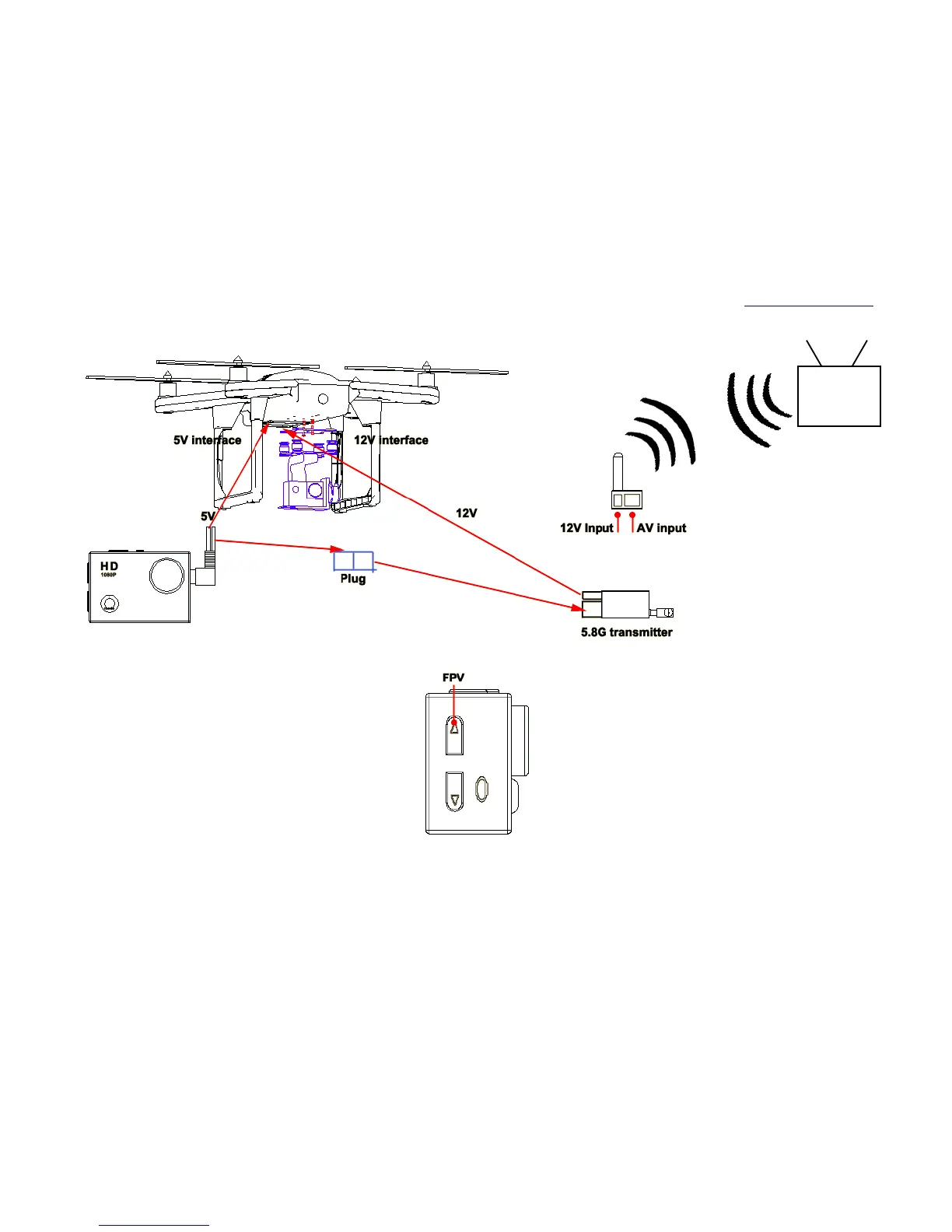

Image 14 Connection 5.8G diagram
Image 15 FPV button of camera
If press 3 second FPV button,the camera will change to FPV mode,5.8G transmitter;If press 3second FPV button again,the
camera will automatically quit FPV button.then the display need to choose "C-8".
