Installation
1. Select a location on the airframe that does not have metal or carbon
surfaces above the case of the module.
2. Install the Remote ID module using the included adhesive backed hook
and loop pads, or double sided tape.
3. Connect the module to your receiver or power source.
There are three connection options, listed in order of preference:
1. SRXL2 or XBUS Telemetry port
2. Any open servo port operating at standard servo voltages
3. Any DC power source, 3.3V-9V

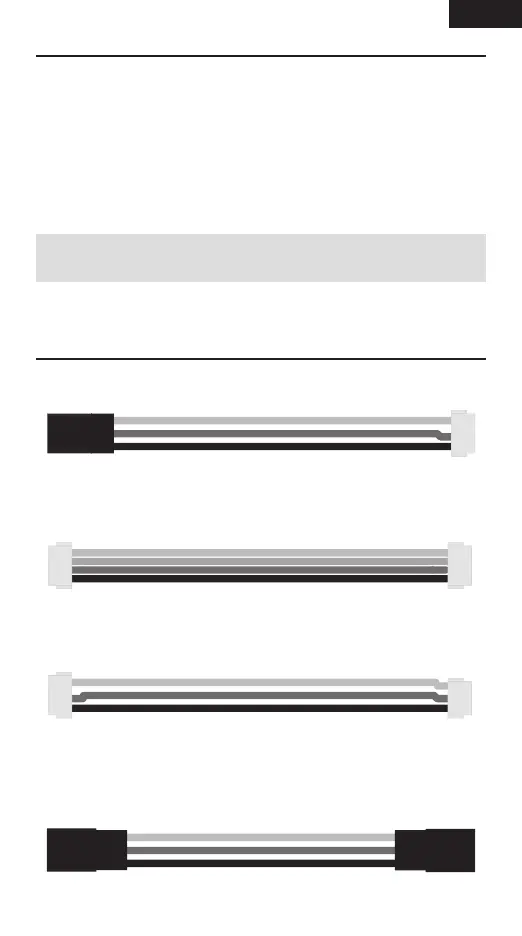

Wiring Options
4-Pin ZH to 3-Pin Servo Connector enables connection with any Spektrum
receiver with an SRXL2 connection, or any standard servo port.
4-Pin ZH to 4-Pin Servo Connector enables connection with any Spektrum
receiver with an SRXL2 or XBUS port.
4-Pin ZH to 3-Pin Servo Connector enables connection with Spektrum Micro
Receivers with a 3 pin ZH connector.
3-Pin Female Servo Connector to 3-Pin Female Servo Connector enables
connection with SPMA3065 USB programmer.
NOTICE: Some Spektrum receivers have several connection options, see
options for several Spektrum options on the following page.
IMPORTANT: For PowerSafe receivers operating on 3S, connect the SkyID
module to the SRXL2 or XBUS port.
