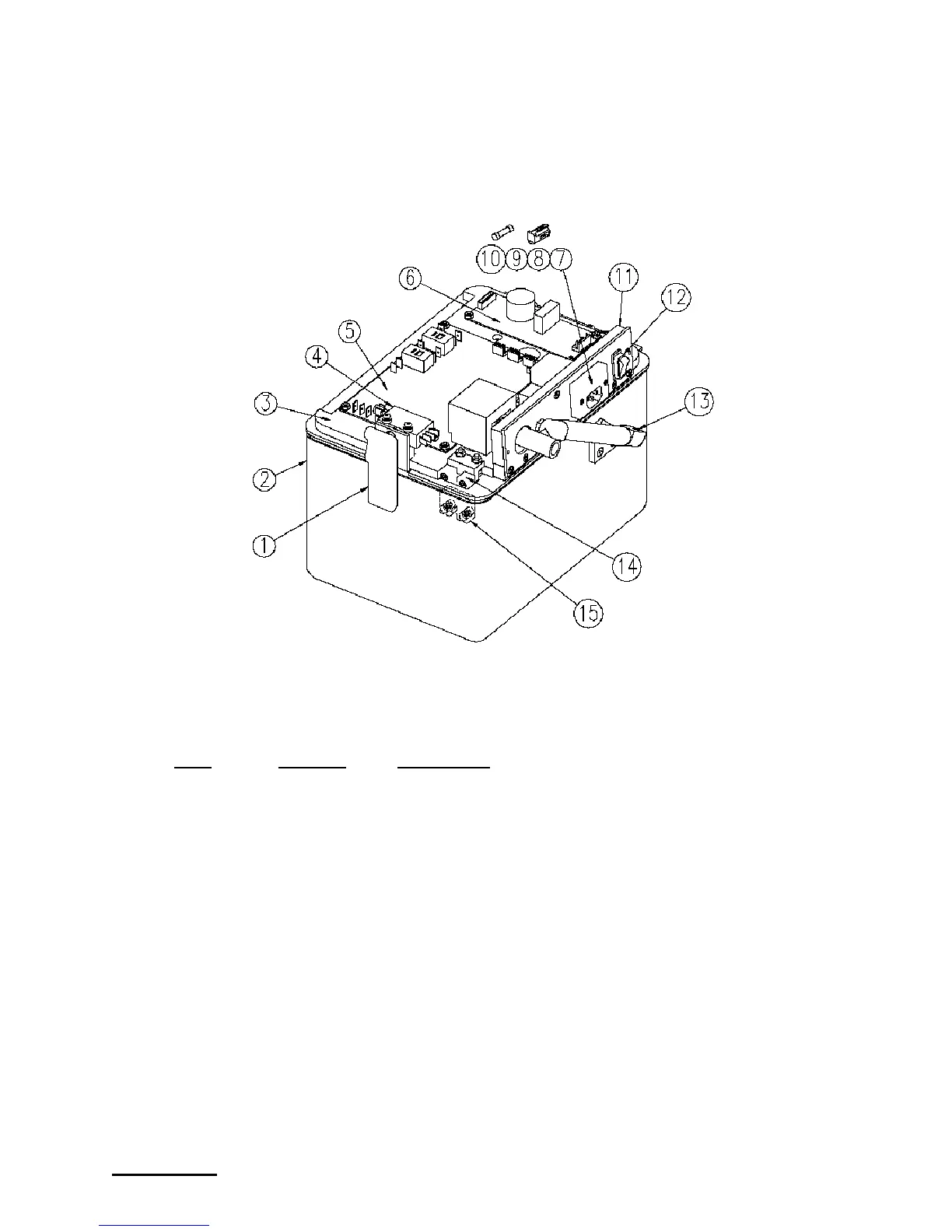

9.01 DIAGRAM “A”
(View from rear of unit w/cover removed for clarity)
Item Part No. Description
1 50587 Latch
2 38550 Tub, Outer
3 39079 Foam, Top Plate
4 92679 Switch, Pushbutton
5 38569 Driver Board
6 38579 Power Supply
7 96004 AC Inlet
8 96005 Fuse Holder
9 93850 Fuse, 8 Amp for 115V (2 required)
10 93840 Fuse, 5 Amp for 230V (2 required)
11 39080 Foam, Back-plate
12 92703 Power Switch
13 38567 Gas Spring for Lid
14 92710 Switch, Magnetic
15 92711 Actuator, Magnetic
