For the preparation and the use of the station please see the photos at Chap. 4.
1 - Connect the the high- and low pressure coupling to the hoses– fig.7.
2 - Screw the quick couplings onto the tubes (blue = low pressure – red = high pressure) – fig.8.
3 - Close the high and low pressure taps
4 - Insert the plug into the socket and turn on the general switch (M) in order to switch-on the station.
5 - Read on the display the amount of cooling liquid that is available inside the internal bottle.
6 - Fill in the fresh oil container (H) with the adequate synthetic oil for cooling (TYPE RL 100 - optional).

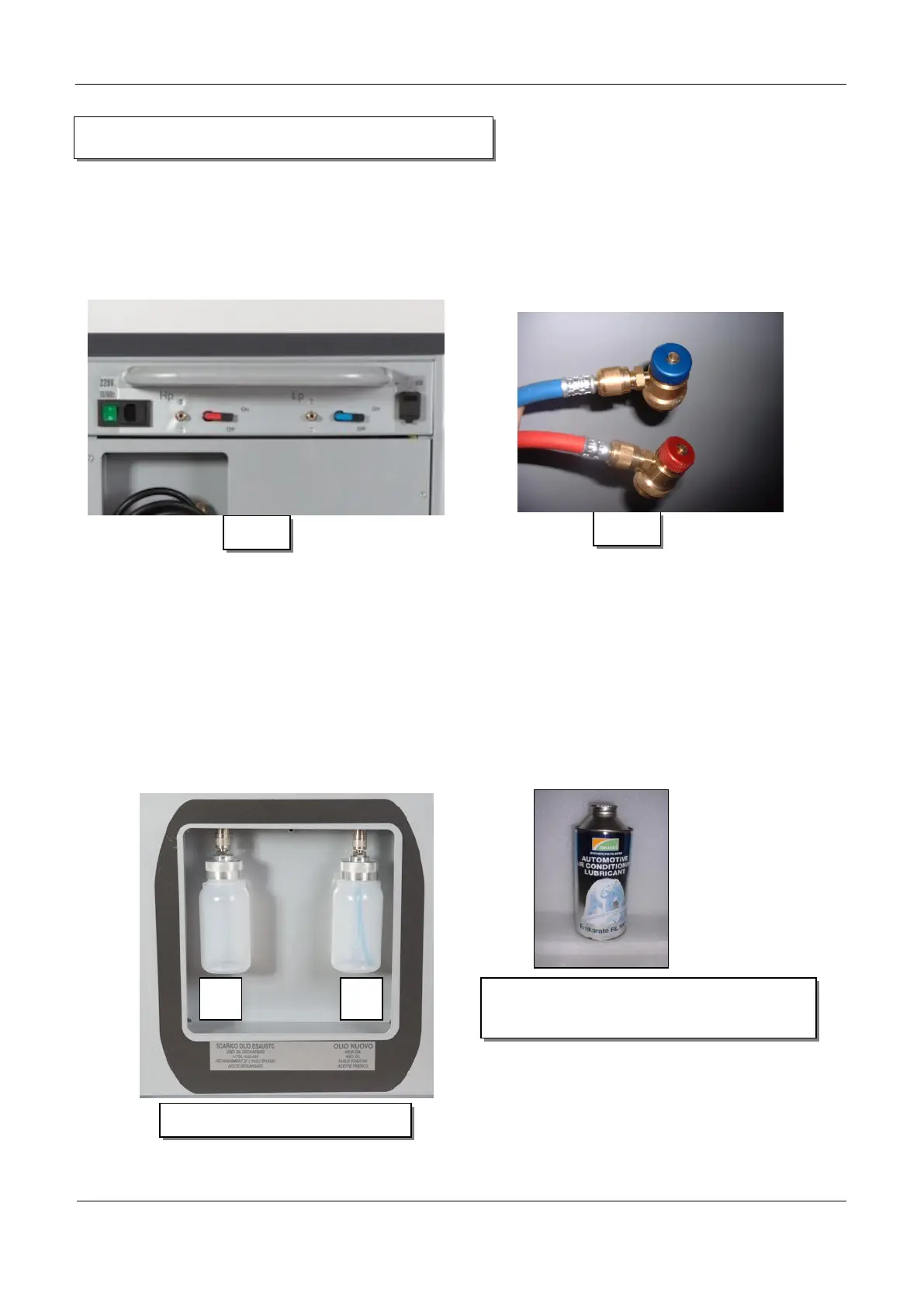

CHAP. 5 - PREPARATION OF THE STATION
Fig. 9 – New oil bottle (H)
Fig. 10 - Synthetic oil for cooling R134- ART.
21CR (optional)
