7/13 PIN CONNECTOR
This bike carrier is equipped with a lighting system. This system can be
connected to the tow bar power socket of your car. Seeing that there are
different kinds of sockets that require different kinds of plugs, this carrier comes
with the usual 7pin plug and the 13pin plug (Jaeger). As a result, the carrier can
be used with any tow bar!
Both plugs are in one housing. Please cover the plug you don’t use with the
supplied cover.
This information is only for the retrofitting by a specialised dealer. A retrofitting
by non trained persons is not permitted.

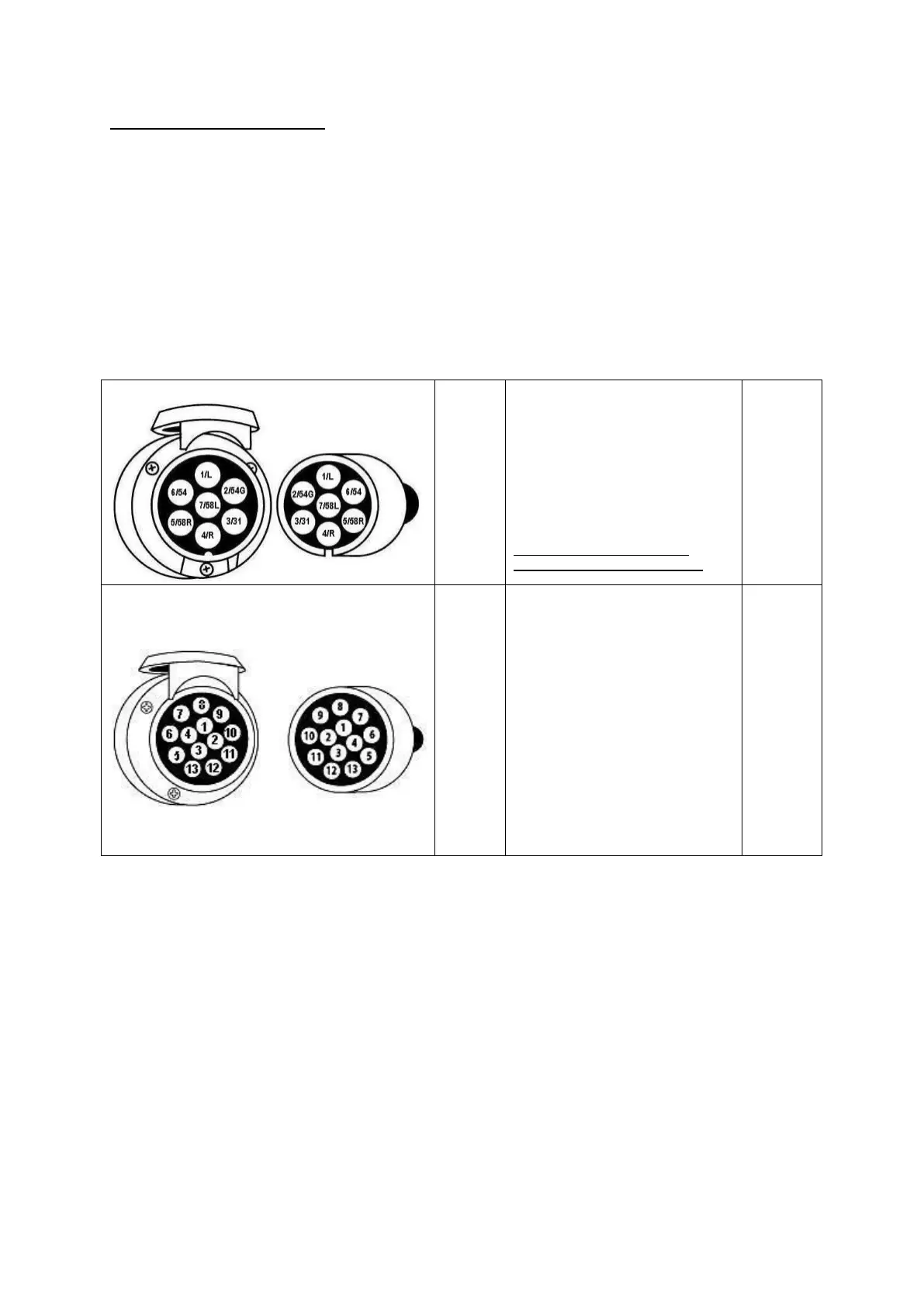

1/L
2/54G
3/31
4/R
5/58R
6/54
7/58L
Indicator left
Rear fog light
Ground
Indicator right
Rear light right
Stop lights
Rear light left
The reversing light is not
working via the 7-pin plug!
yellow
blue
white
green
brown
red
black
Jaeger system 13 pin
(DIN 72.570)
1
2
3
4
5
6
7
8
9
10
11
12
13
Indicator left
Rear fog light
Ground
Indicator right
Rear light right
Stop lights
Rear light left
Reversing light
Not used
Not used
Not used
Ground
Not used
yellow
blue
white
green
brown
red
black
gray
