ZS Rope Sense Load Displays ZS-LC/5 & ZS-LC/10 Load Display
ZS Rope Sense Load Displays
ZS-LC/5 & ZS-LC/10
Simple, soft loop attachment offers fast connection to any
applications, for quick mobile load measurement
• Design loads often vary widely from actual loads. ZS Rope Sense offers
teams the ability to quickly and easily confirm actual working loads
and refine deck hardware and rope selection.
• Used either stand alone or with ZS Open Jammers.
• Continuous load read out or ‘Peak Load’ mode.
• Wireless versions also available (no LCD Read Out) which transmits
directly to your PC via a USB aerial. Data can be viewed
instantaneously on screen as a read out and graph format.
• Easily exported to Excel.
• Overall accuracies 0.02% over full scale deection.
• Rated to IP65 for water and dirt resistance.
ZS-LC/5 5 Tonne load cell with inbuilt read out
ZS-LC/10 10 Tonne load cell with inbuilt read out
ZS-LCW/5 5 Tonne Wireless load cell, no read out. Including USB
aerial and PC software
ZS-LCW/10 10 Tonne Wireless load cell, no read out. Including USB
aerial and PC software
ZS-WD Wireless read out display for ZS-LCW/5 and ZS-LCW/10
ZS-LOOP/5 5 Tonne soft loop attachment
ZS-LOOP/10 10 Tonne soft loop attachment
Contact spt@spinlock.co.uk for custom units up to 30 tonnes
Introduction
Compact, light weight mobile load
cells for use with soft connections with
inbuilt readout.
Use
• Can safely work between a deck
eye, strong point or traveller
car and block to measure loads.
• Use with ZS/OPEN mobile jammer linked by a ZS/LOOP to measure
loads in any line.
• The unit can give a continuous TRACKING load read out or
measure PEAK load.
Operating Instructions
• Mount the load cell in the desired position.
• Designed to use either ZS-LOOP attachment in a ‘basket’ formation
or tied directly to sheets or halyards with one complete turn around

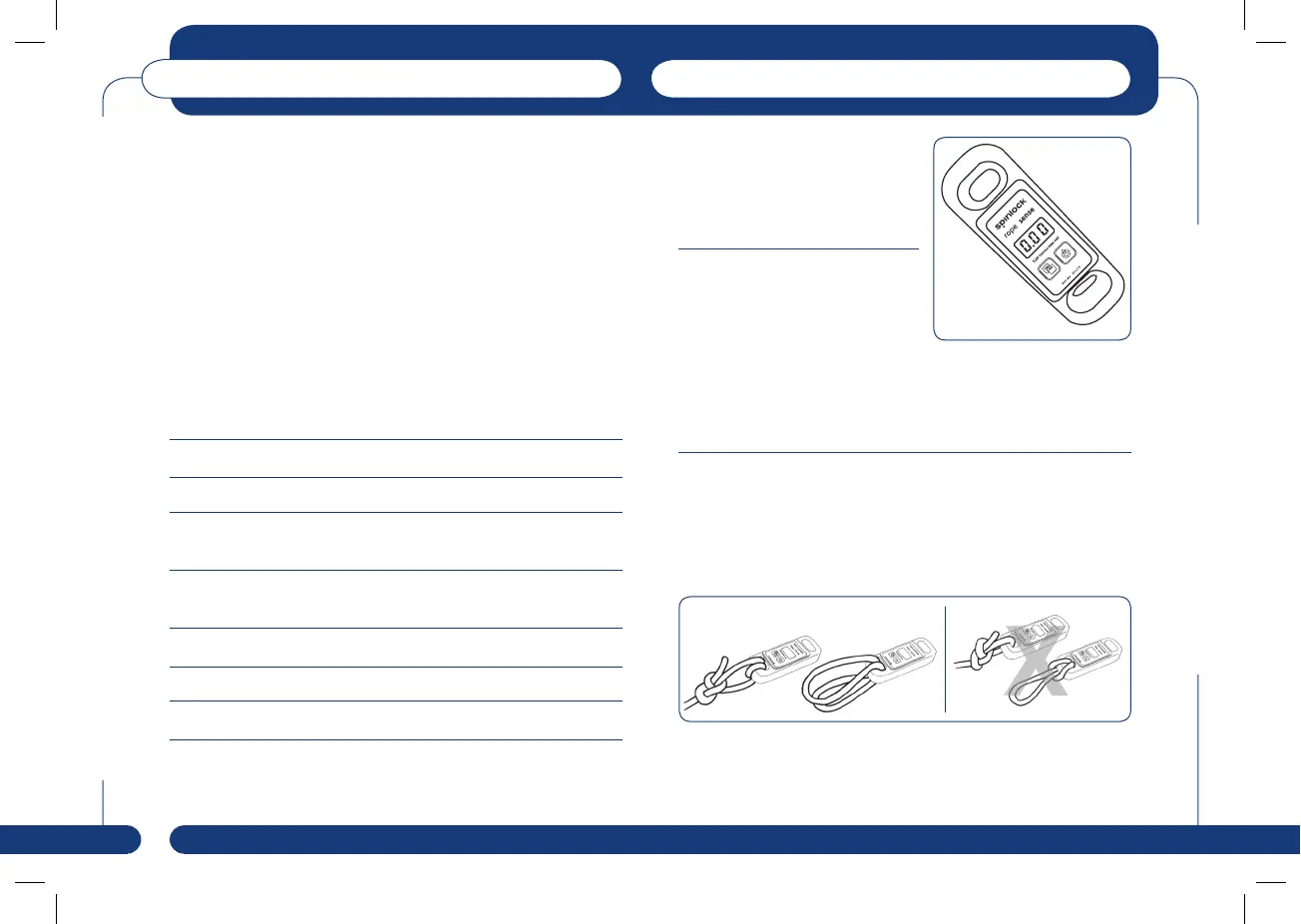

the cell before termination as illustrated below:
Line Attachment ZS-LOOP ‘Basket’
Attachment
