Use
• Can safely work between a deck eye, strong point or traveller car and
block to measure loads.
• Use with ZS/OPEN mobile jammer linked by a ZS/LOOP to measure
loads in any line.
• The unit relays load data against computer clock time in two
possible rates/speed options to a CSV excel spread sheet.
Operating Instructions

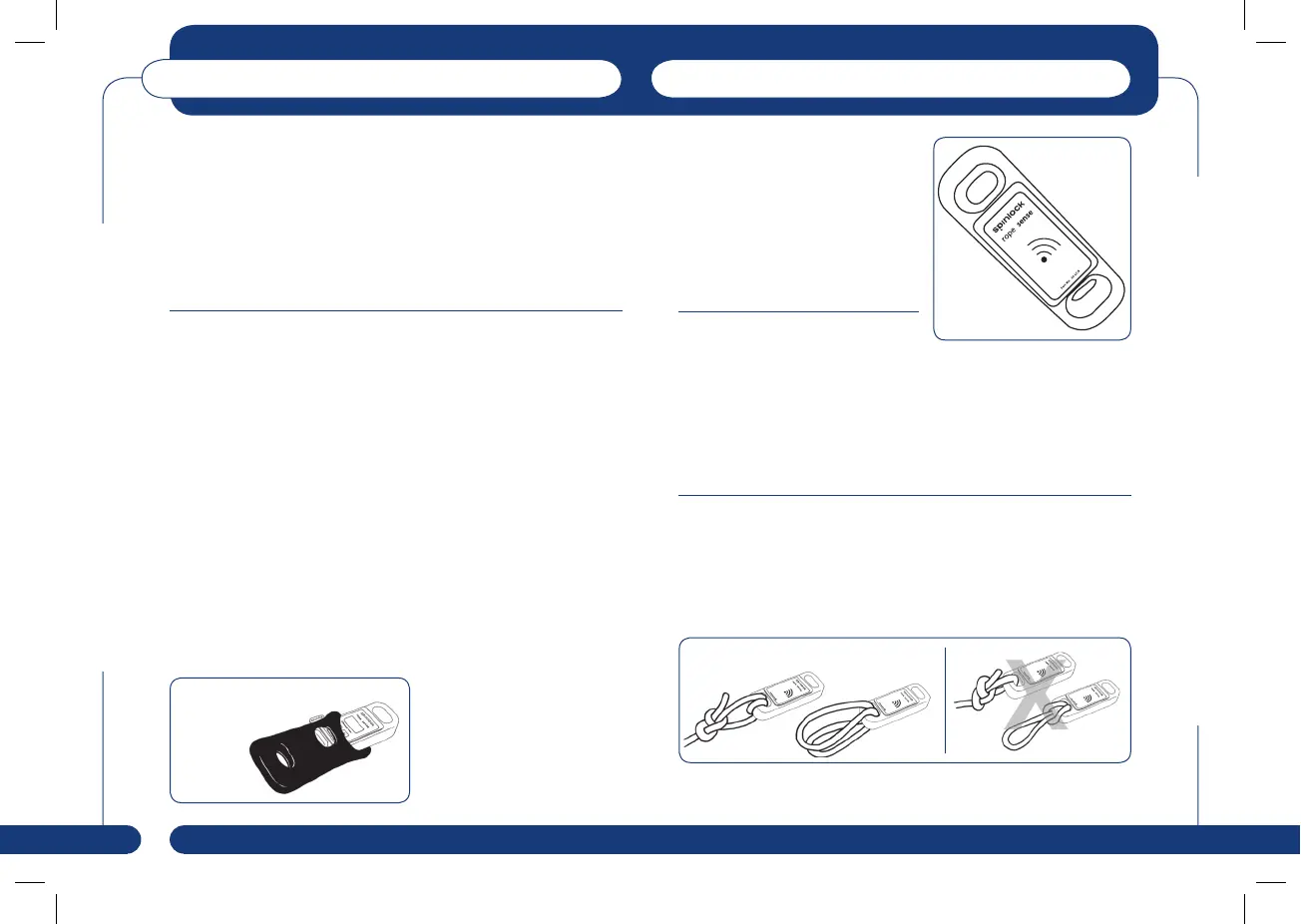

• Mount the load cell in the desired position.
• Designed to use either ZS-LOOP attachment in a ‘basket’ formation
or tied directly to sheets or halyards with one complete turn around
the cell before termination as illustrated below:
40 41
ZS-LC/5 & ZS-LC/10 Load Display ZS-LCW/5 & ZS-LCW/10 Load Display
ZS-LC/5 & ZS-LC/10
ZS-LCW/5 & ZS-LCW/10
Safety
• Make sure any operator has read and understands the safe operation
before commencing any test.
• Always check before use that the cell is not dangerous or endangering
the boat or people aboard.
• Improper mounting and use can result in inaccurate results and
damage.
Technical Data
Sampling Rate TRACKING mode - 18Hz PEAK mode - 10Hz
Max Error Band (Linearity) 0.2% full range
Proof Load 150% of rated load
IP Rating IP65 (Totally protected against dust. Protected against low
pressure jets of water from all directions - limited ingress
permitted)
Battery PP3 9v
Battery Life 3 hrs continuous (average)
Temperature range 0 - 45 degrees Celsius
(Strong direct Sun light will damage the LCD)
Body Alloy 2014T6 Aeronautical specification
Plastic Delrin type
Screen 250 micron Lexan
Adhesive (Screen) 3M® 467
Weight: 5 Tonne with Battery 0.385kg (0.85lbs)
10 Tonne with Battery 0.700kg (1.55lbs)
Dimensions ZS-LC/5 152 x 57 x 40
(nominal mm) ZS-LC/10 175 x 75 x 40
Neoprene protective cover fitting
(5 & 10 Tonne units only)
Introduction
Compact, light weight mobile load cells
for use with soft connections. Wireless
versions have no inbuilt read out and
require either a PC loaded with rope
sense software or ZS-WD handheld
read out to operate.
Line Attachment ZS-LOOP ‘Basket’
Attachment
