18
seat slider
seat post
pop-pins
seat lever
3. Position the lever straight back,
then use a 6mm allen wrench to secure the
bolt while pulling down on the lever
(as shown left). Note that after the lever is
tightened it can be adjusted to stay out of the
way by pulling just the handle straight down
and rotating it to the desired position before
releasing.
4. Install the seat post pop-pin and tighten the
bolt securely making sure that the thin washer
is properly seated and centered between the
pop-pin and the frame boss.

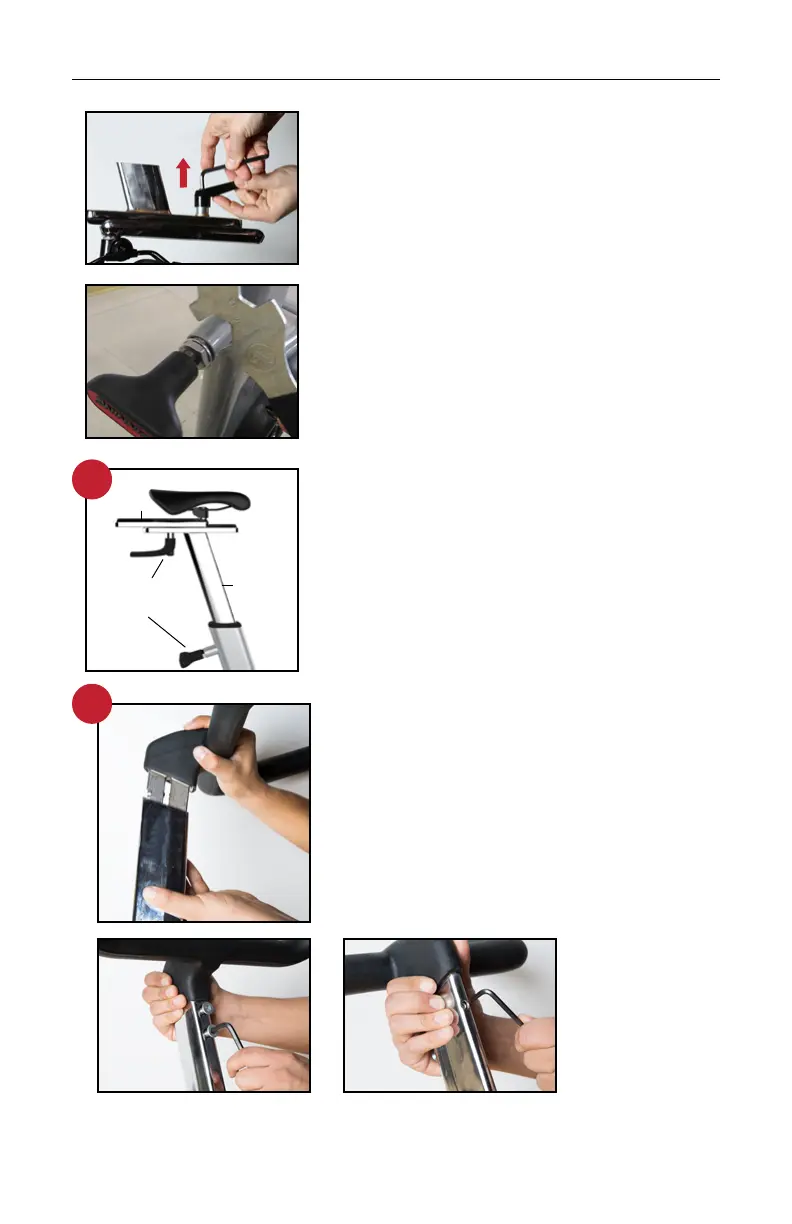

STEP 3B: INSTALL THE SADDLE
While holding and pulling back the seat post
pop-pin, slide the seat post into the seat tube.
Release the pop-pin. Adjust the seat post to
make sure the pop-pin is properly engaged.
Tighten the seat post pop-pin securely.
Adjust the seat slider (fore/aft) to your desired
position, then tighten the seat lever securely.
STEP 4: HANDLEBAR ASSEMBLY
Insert the chrome handlebar post onto
the threaded handlebar stem making sure
that the holes line up. Using a 5mm Allen
wrench, insert then tighten the two large bolts
on the front of the bar. Now insert then secure
the 3mm bolt at the rear of the post. Check
to make sure that all the bolts are tightened
securely before proceeding.
3B
4A
To Next Page
