IM-P358-26 CH Issue 1
12

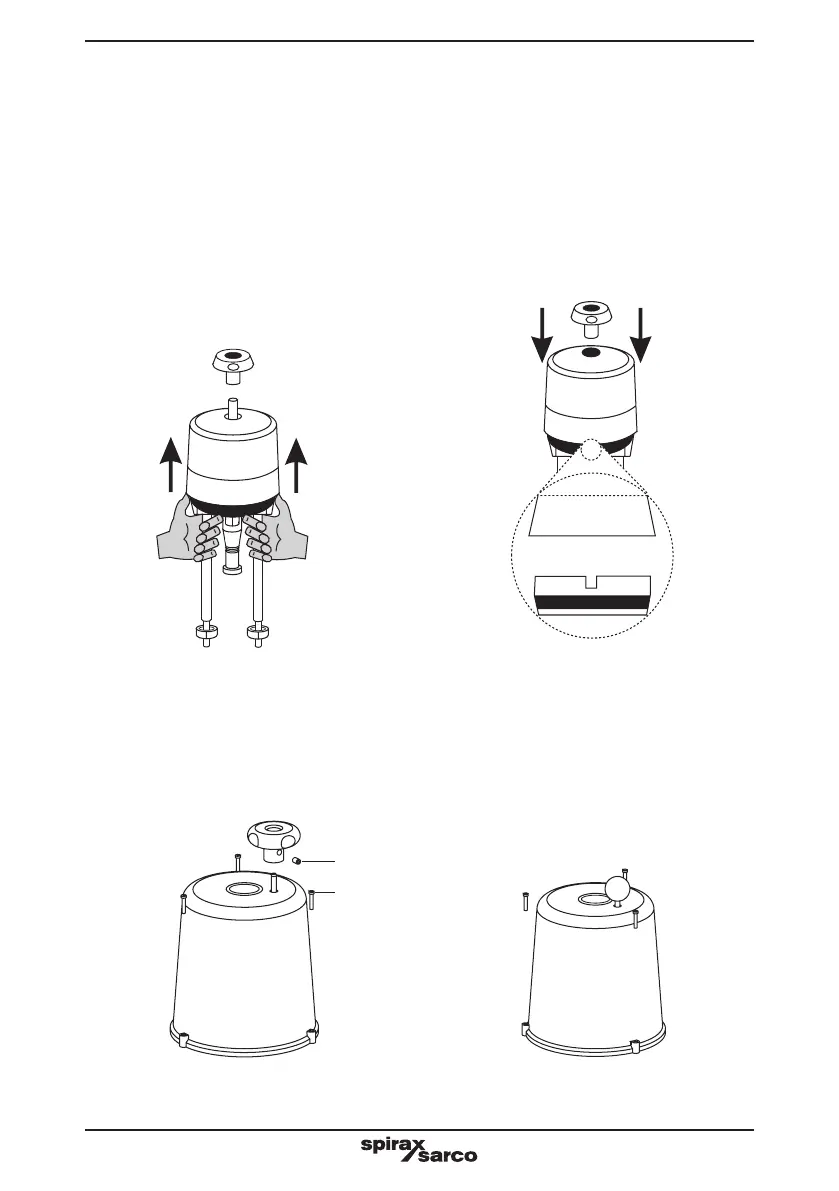

3.3 Removing and fitting the actuator cover
3.3.1 AEL51_, AEL52_, AEL53_ and AEL54_ actuators
Remove the handwheel by loosening the socket headed grub screw (3 mm A/ F allen key).
Hold both of the actuator pillars at the top. Using your thumbs gently ease the lid off.
Note: When replacing the cover ensure that the two longest locating guides on the interior
of the cover are aligned with the two recesses on the actuator housing. Firmly press down
the actuator housing ensuring the 'O' ring on the actuator is completely concealed.
Fig. 7 Fitting cover
Fig. 8 AEL55_ actuator Fig. 9 AEL56_ actuator
3.3.2 AEL55_ and AEL56_ actuators
For the AEL55_ actuator remove the handwheel first by loosening the grub screw.
Unscrew the 3 fixing screws around the bottom edge of the lid, then gently lift the lid off.
Fig. 6 Removing cover
Grub screw
3 fixing screws
