IM-P006-07 CTLS Issue 12
11
Pressure
control
pipe
Strainer with 100 mesh
stainless steel screen
Separator
Steam
supply
Spiratec
sensor
chamber
Float type
steam trap
Pilot operated
pressure reducing
valve
1 m or 15 pipe
diameters clear on
either side
Downstream isolating valve to provide
no-load conditions for setting pressure
reducing valve
Safety
valve
Discharge pipe
Check valve
Strainer

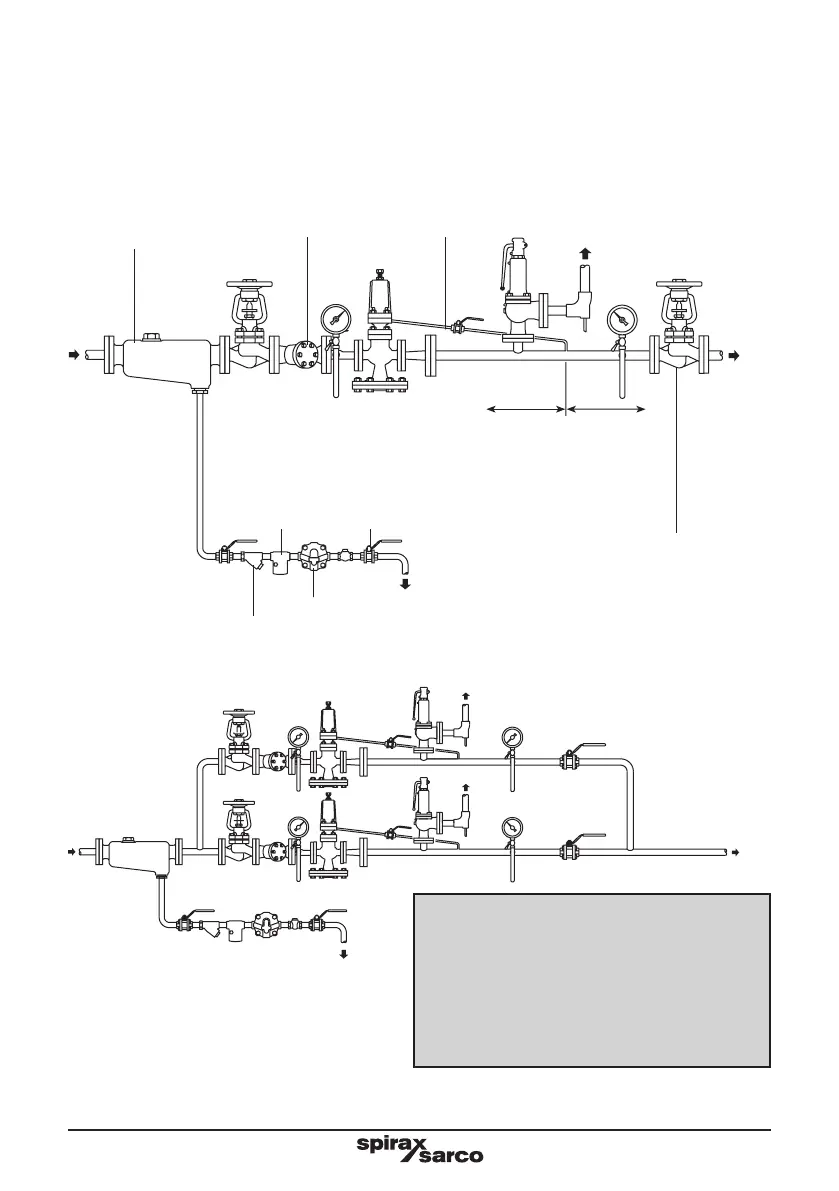

Fig. 2 Recommended installation
Steam supply
3.2 Fitting (Figure 2 and Figure 3)
The valve should always be fitted in horizontal pipework with the main diaphragm chamber below the line.
To meet high capacities or widely varying loads, or where stand-by facility is required, two or more valves
may be used in parallel.
Fig. 3
Important DP143 only
Direct injection systems
This product contains a rust inhibitor to protect
it against corrosion during storage. To avoid
any possible contamination of your product,
after first blowing down the approach pipework,
we recommend that the valve is blown through
thoroughly in order to remove any trace of the
inhibitor.
Condensate
Condensate
