IM-S02-30 CMGT Issue 14
26

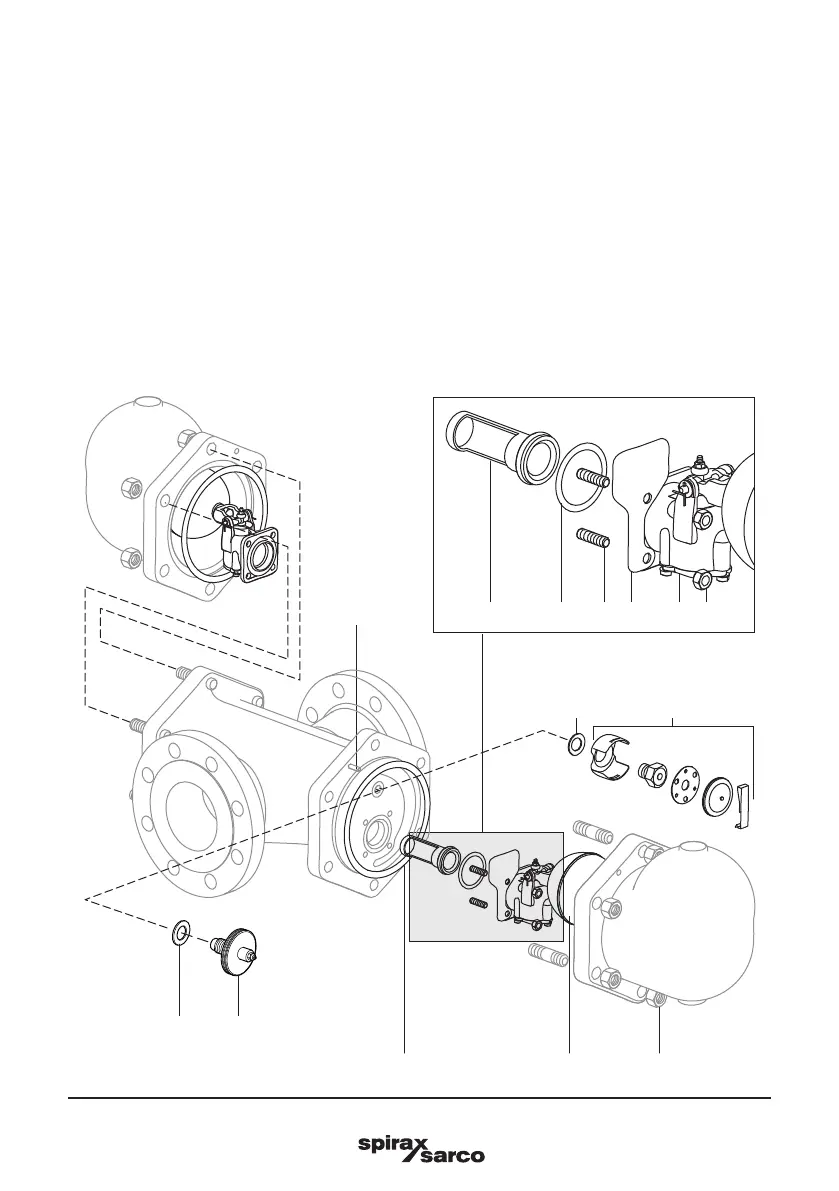

FT43, FT44, FT46 and FT47 Ball Float Steam Traps
Dowel
Air vent
assembly
17
3
28
Main valve assembly
18
6.2 FT43 and FT44 (DN80 and DN100)
Notes:
-
Before actioning any maintenance programme observe the 'Safety information' in Section 1.
-
The FT43 is not normally provided with a bimetallic air vent due to its PN16 rating. This
arrangement can be made available on request.
Warning
The cover gasket contains a thin stainless steel support ring which may cause physical injury if
not handled and disposed of carefully.
12 7 26 5 76
18
17
Bimetallic air vent
assembly
