FT43, FT44, FT46 and FT47 Ball Float Steam Traps
Dowel
Air vent
assembly
17
3
28
Main valve assembly
18
18
12 7 26 5 76
Spare parts

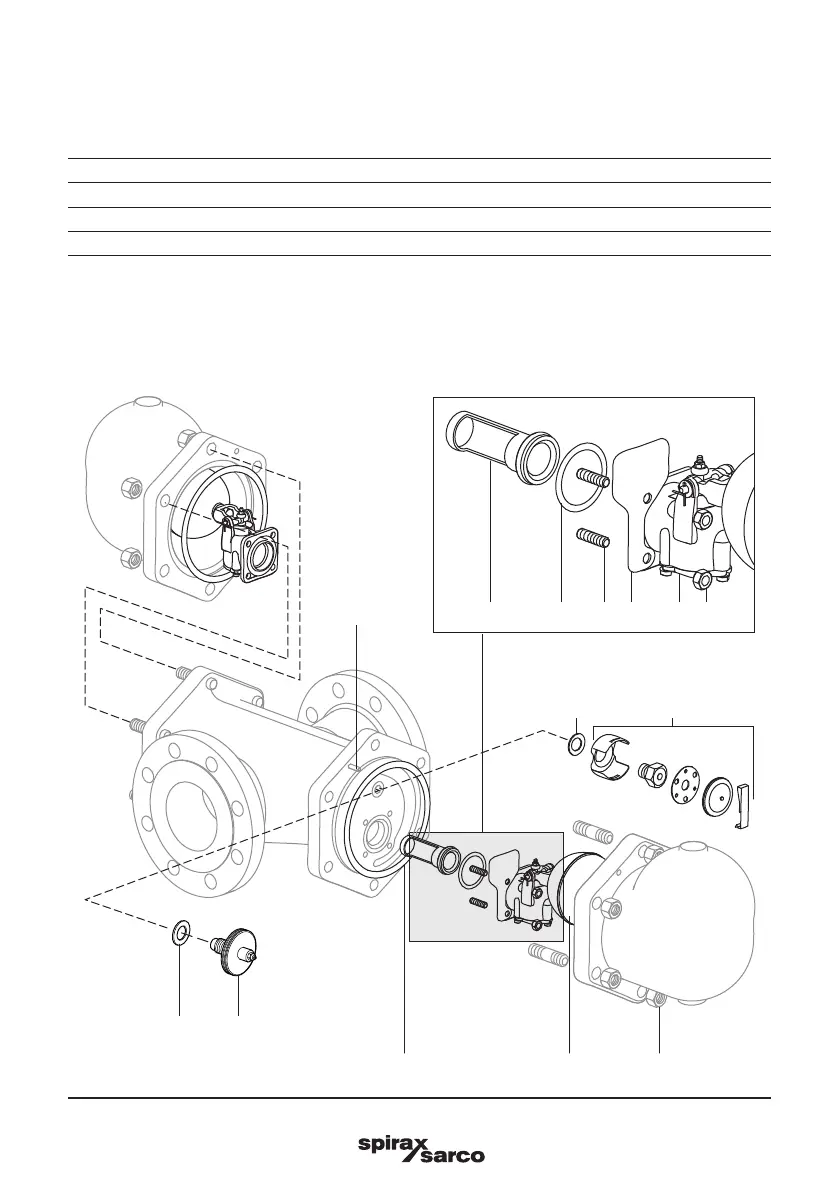

The spare parts available are shown in heavy outline. Parts drawn in a grey line are not supplied as spares.
Available spares
Main valve assembly 5, 6, 7, 12, 26
Ball float and lever 8
Air vent assembly Bimetallic air vent assembly/Capsule air vent assembly 17, 18
Set of all gaskets (packet of 3 sets) 3, 6, 18
Note: For a complete overhaul 2 off of each spare are required.
How to order spares
Always order spare parts by using the description given in the column headed 'Available spares' and state
the size, Model No. and pressure rating of the trap.
Example: 1 - Main valve assembly for a DN80 Spirax Sarco FT43-10TV ball float steam trap.
