IM-S02-30 CMGT Issue 14
6
FT43, FT44, FT46 and FT47 Ball Float Steam Traps

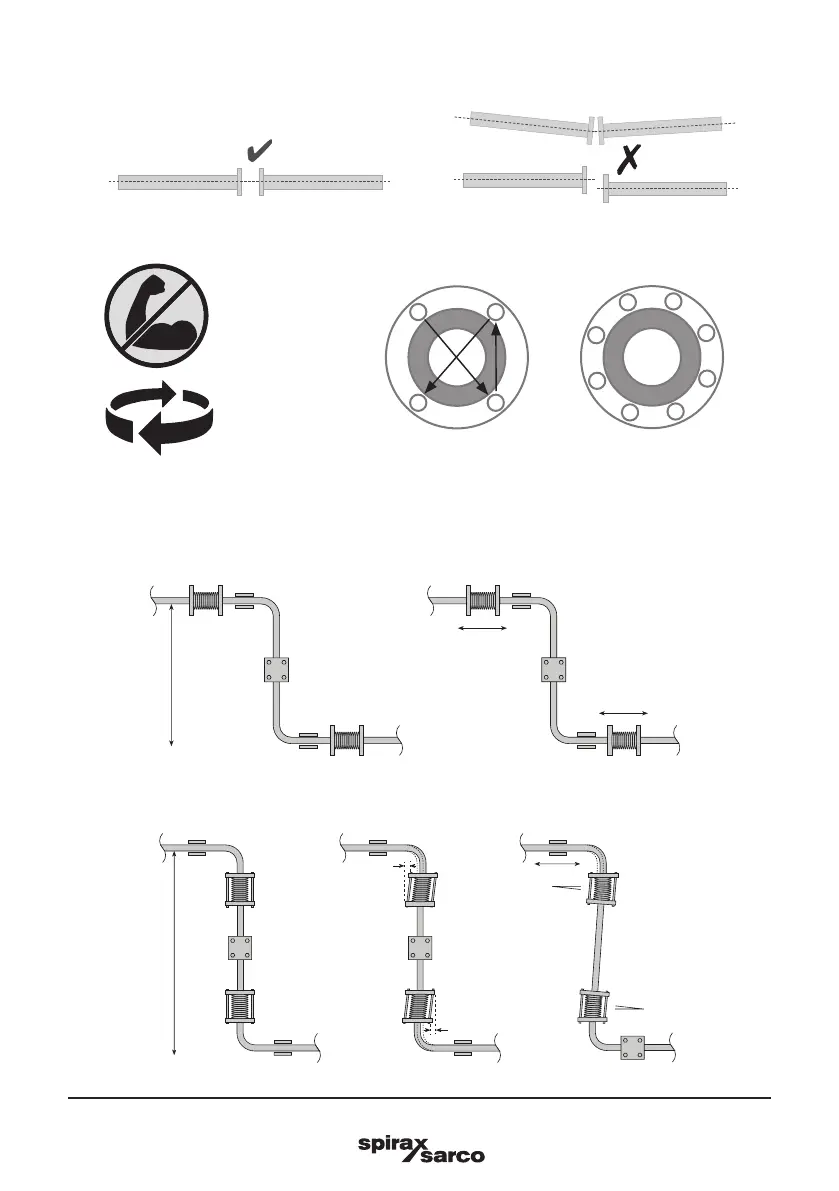

Prevention of tensile stressing
Pipe misalignment:
Installing products or re-assembling after maintenance:
Thermal expansion:
Do not over tighten.
Use correct torque gures.
1
1
4 2
3
8
2
6
3
7
Flange bolts should be gradually tightened across
diameters to ensure even load and alignment.
Guides
Guides
Limit
rods
Limit rods
Fixing point
Medium
distance
Small
lateral
movement
Small lateral
movement
Large lateral
movement
Large lateral
movement
Short
distance
Fixing point
Axial
movement
Axial movement
Guides
Guides
5
4
