IM-S02-30 CMGT Issue 14
8
FT43, FT44, FT46 and FT47 Ball Float Steam Traps
2.2 FT43 - Cast iron

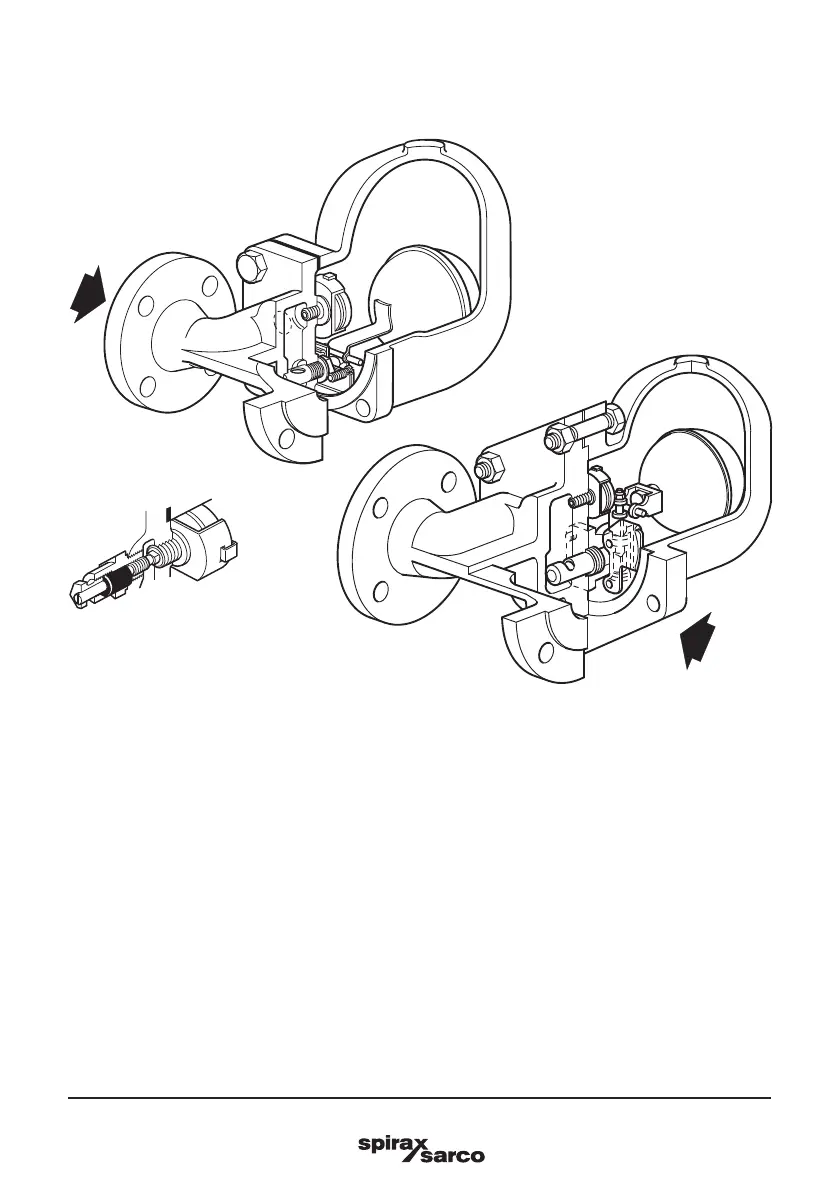

Fig. 1
Sizes and pipe connections
DN25, DN40 and DN50
Note: Flow direction, for FT43 horizontal orientated traps, when facing the body:
- DN25 is left to right. (R-L versions are available for DN25 FT43TV PN16 only)
- DN40 and DN50 is right to left.
Flow direction, for FT43V vertically orientated traps is downwards only.
* Note: Only the one size, DN25, is available with JIS/KS flange connections with flow vertically downward
FT43V.
Standard flanges are EN 1092 PN16 with face-to-face dimensions in accordance with EN 26554 (Series 1).
On request - ASME B 16.1 Class 125 and JIS/KS 10 flanges are also available.
Note: ASME and JIS/KS flanges are supplied with tapped holes to receive flange bolts. ASME flanges have
UNC threads and JIS/KS have metric threads.
FT43 DN40 and DN50
FT43 DN25
FT43-C
