5.9 PN9400RH (handwheel) :
-
Screw the adaptor (A) with the spindle of the actuator (B).
-
Ensure the indicator is at the highest point.
-
Fit the handwheel assembly (C).
-
Fit and tighten the securing bolts (D) to a torque of 50 Nm.
5.9.1 Removal of handwheel
PN9400RH
-
Ensure indicator is at the highest
position.
-
Loose and remove 4 securing
bolts (E).
-
Remove handwheel assembly

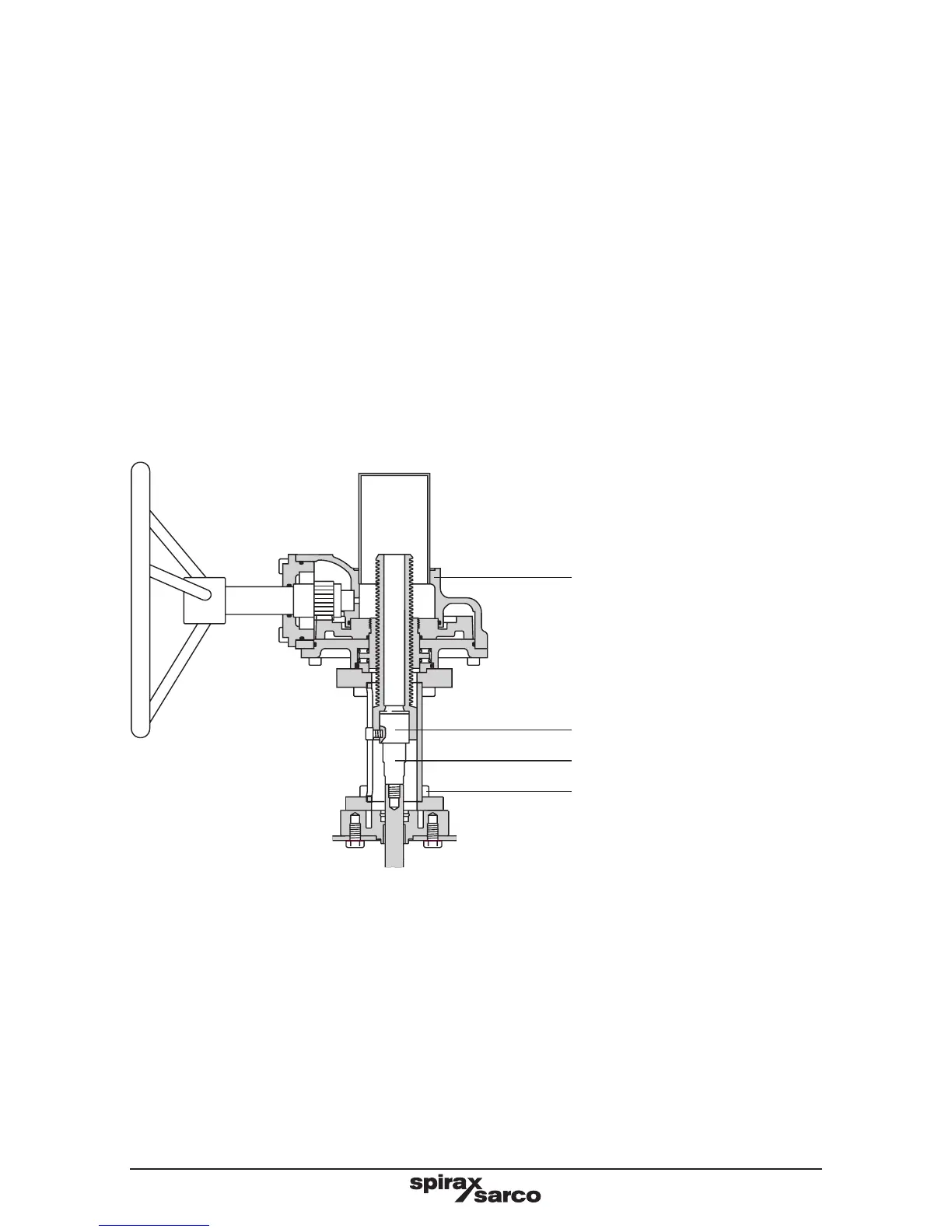

Fig. 21
A
B
D
C
