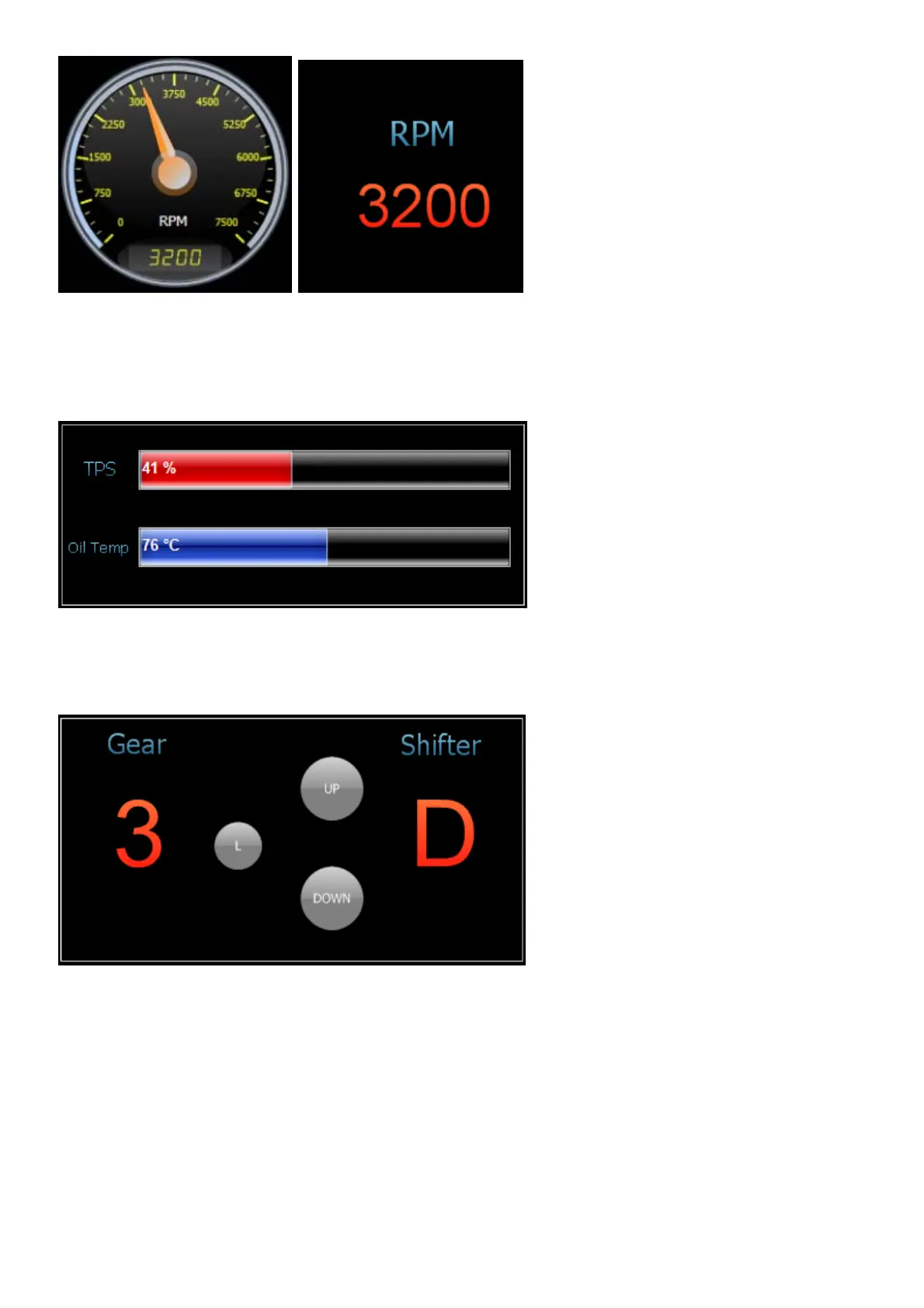

Revcounter - calibrate it according to an accurate revolution counter. It is critical that it functions
correctly to ensure proper gear shifting at all times. Double click will toggle between the two
options.
Throttle Position Sensor – must be calibrated to operate between 0% and 100 %. This is critical for
shifting as well as line pressures.
Oil Temp is reserved for future development.
Gear – Indicates the electronic selection of the gears by the TCU.
Shifter – Indicates which position the shifter is situated in depending on the information from the
switches in the shifter or transmission.
L – Indicates whether the Lockup Clutch is engaged (green) or not engaged (grey).
UP – Indicates whether the UP-Shift button is pressed (green).
DOWN – Indicates whether the DOWN-Shift button is pressed (green).
