Spitwater HP201 - Page 5

5

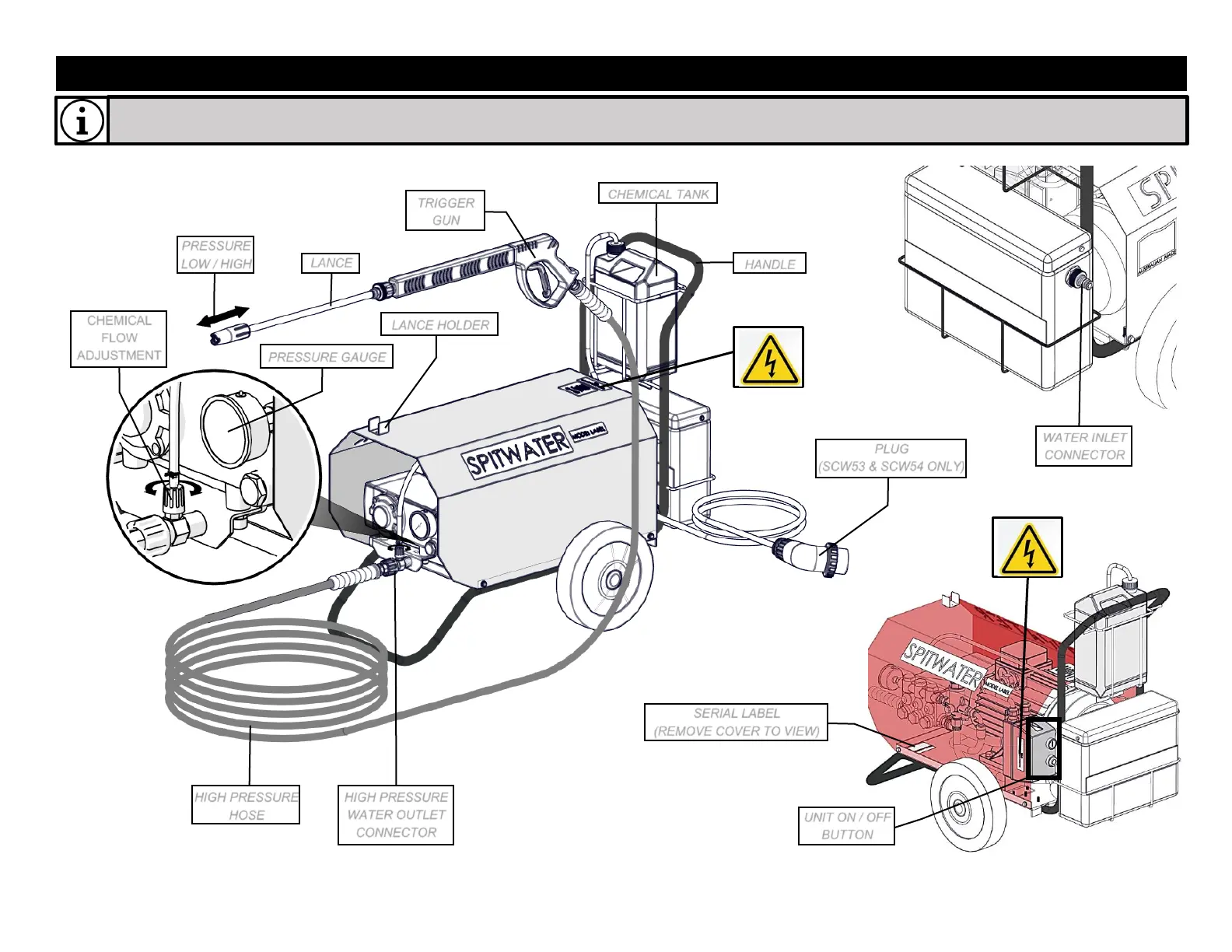

SAFETY LABELS, UNIT COMPONENTS FEATURES & CONTROLS
WATER INLET
CONNECTOR
PRESSURE GAUGE
TRIGGER
GUN
UNIT ON / OFF
BUTTON
HIGH PRESSURE
HOSE
PRESSURE
LOW / HIGH
HANDLE
PLUG
(SCW53 & SCW54 ONLY)
LANCE
CHEMICAL TANK
HIGH PRESSURE
WATER OUTLET
CONNECTOR
Always pay attention to the safety instructions provided on each label. Do not alter or remove safety labels
CHEMICAL
FLOW
ADJUSTMENT
LANCE HOLDER
SERIAL LABEL
(REMOVE COVER TO VIEW)
