SPL 2489 - Connectivity

6
Surround Monitor Controller 2489

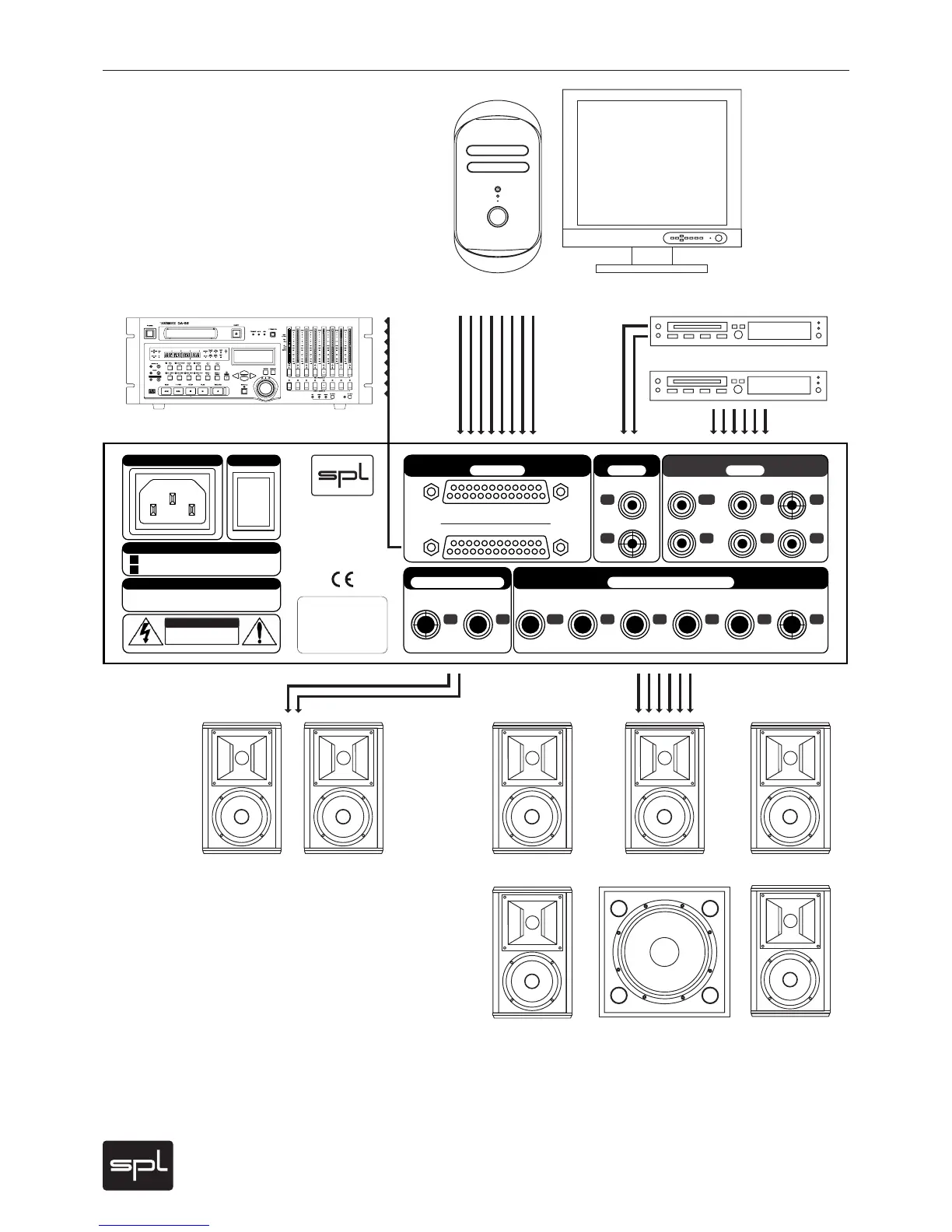

Rear panel/connections
CD/DAT player
DAW/
DA converter
Multitrack recorder
Stereo speakers Surround speakers
SACD/DVD player
RCA
1/4" TRS 1/4" TRS
Sub-D-25
Sub-D-25
RCA
Balanced Input
See Manual for Pin Configuration
Sound
Performance Lab
Surround Monitor
Controller
Model 2489
Made in Germany
SLAVE OUT
Input A + CInput DInput B
L
L
R
R
L
L
R
R
LS
LS
RS
RS
C
C
LFE
LFE
Input D Input BInput A + C
L
L
R
R
Stereo Speaker Outs
Stereo Speaker Outs
L
L
R
R
LS
LS
RS
RS
C
C
LFE
LFE
Balanced Outputs: Use Stereo Jacks / Unbalanced Outputs: Use Mono Jacks
Surround Speaker Outputs
Surround Speaker Outputs
MAINS INPUT
POWER
SERIAL No.
AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE
220 – 240 V ~ 50 Hz / Fuse: 315 mA
110 – 120 V ~ 60 Hz / Fuse: 630 mA
VOLTAGE SETTING / FUSE RATING
WARNING
Vector graphics courtesy of TASCAM Germany (www.tascam.de) and
Christian Preissig, media dell‘ arte - text&ton, E-Mail: media_dell_arte@mac.com
