Step 7: Attaching the Berth Pipe to the SplashLadder
Please note: If you have purchased an OmegaPool, please refer to the last page of the manual for the OmegaLadder
“Horseshoe” Berth Pipe installation instructions.
Step 8: Attaching the SplashLadder with the
Berth Pipe to the Buttress Leg of the Pool
1. Remove release paper from back of Long Foam Strip (T), and install Foam Strip onto the under-
side of the Ladder top platform. 2. Select a desired Buttress Leg on a straight side of the pool for
the SplashLadder. Set Ladder onto top rail of the Splash Pool so that waterside steps are in the
water and the top platform Foam Strip is resting on the top rail. 3. Attach the Berth Pipe to the
Buttress Leg with the two Metal “J” Hooks (P) from inside the Buttress Leg. 4. Place the large
washer on the threaded end of the “J” Hooks that extend through the Berth Pipe. 5. Tighten the “J”
Hooks to the Berth Pipe with the corresponding nuts. (A wrench will be required for this step). 6.
Tighten the long screws on the Berth Pipe and Bottom Ladder Supports. Screw the Round Plastic
Caps (S) onto the exposed thread of the “J” Hooks. Your Splash Ladder is now secure.
27

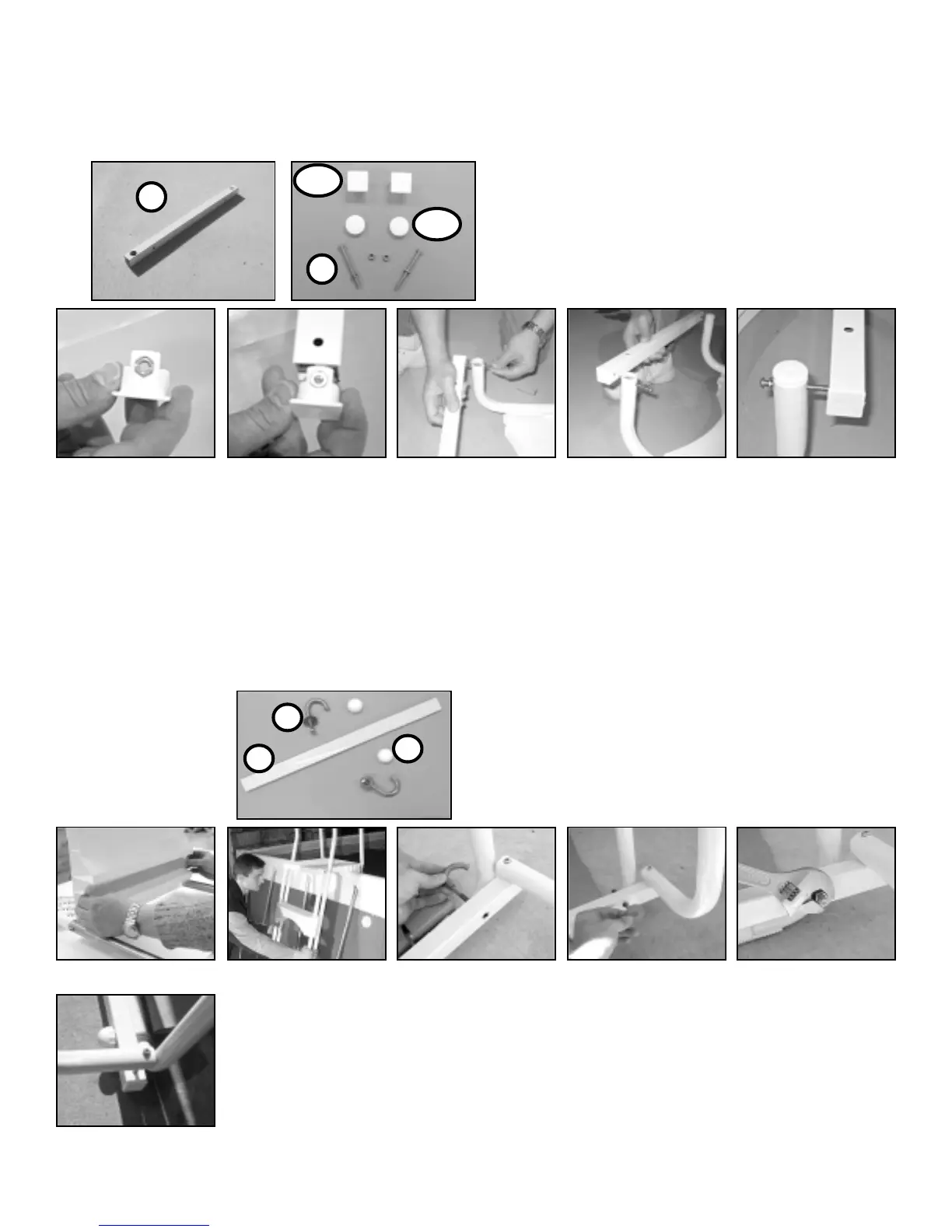

1. Insert Metal Nut into hex shaped recess in Square Plastic Plug (M-1), repeat with second Plug. 2. Insert Square
Plastic Plug (M-1) (with nut installed) into the end of Berth Pipe, making certain to align the nut with the small hole in
the Berth Pipe. Repeat at other end. 3. Line up one nut hole in Berth Pipe with hole in Bottom Ladder Support.
4. Insert a Long Metal Screw, with washer, through hole in Bottom Ladder Support and screw into Berth Pipe.
Repeat at other end of Berth Pipe. Do not over tighten, leaving some slack. 5. Insert Round Plastic Caps (M-2) in
ends of Bottom Ladder Support.
1
2345
6
©
2003-Splash Superpools Ltd.
Parts Needed:
I. (1) Berth Pipe
M-1. (2) Square Plastic Plugs with Nut Slot
M-2. (2) Round Plastic Plugs
O. (2) Long Metal Screws with Nuts and Washers
I
O
M-1
M-2
Parts Needed:
P. (2) Metal “J” Hooks with large Washers and Nuts
S. (2) Round Plastic Caps
T. (1) Long Foam Strip
23451
P
T
S
