-12-

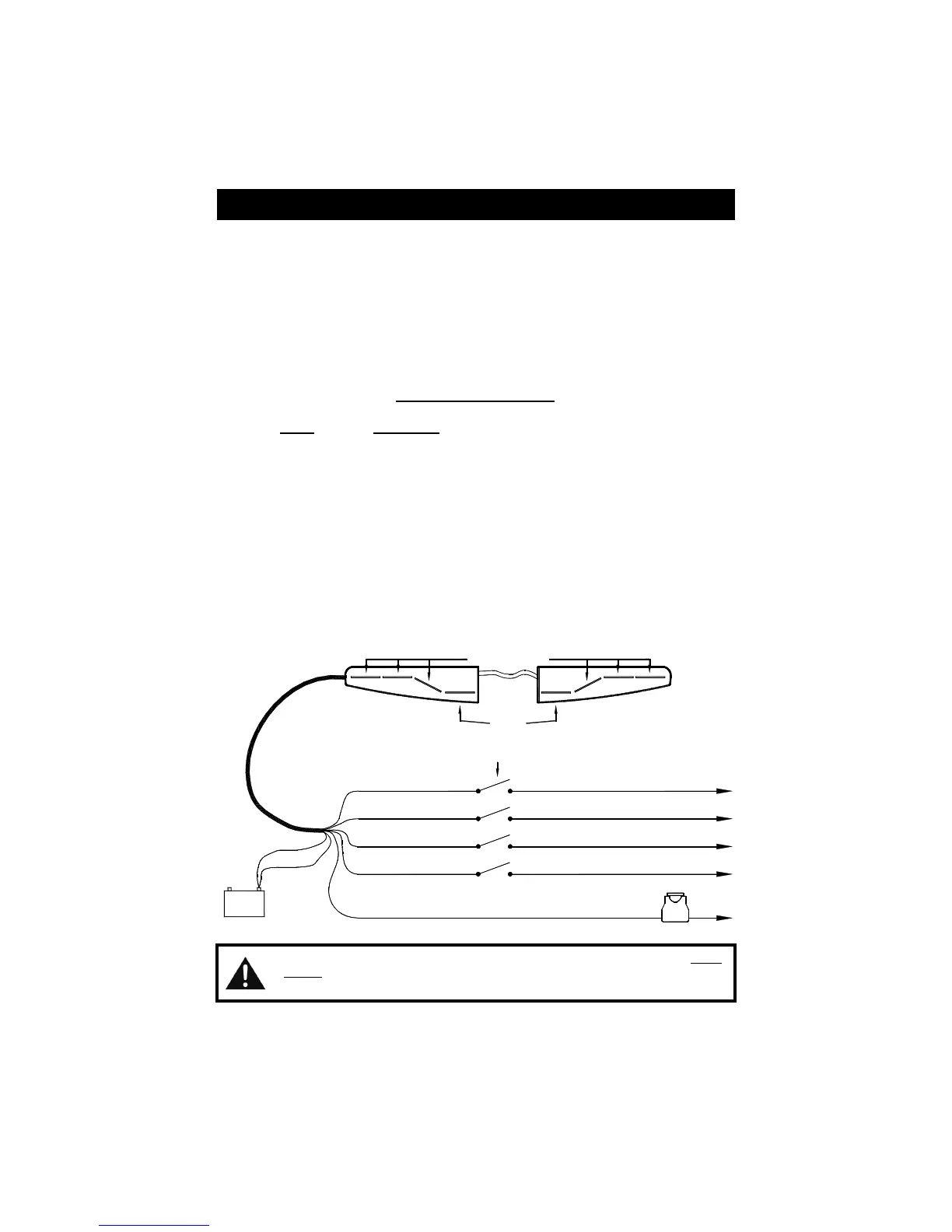

Wiring
For proper installation and full operability, this light requires a 10.5A ignition
switched power source, connections to the negative terminal of the battery,
and four external switches rated for a minimum 1A (user supplied).
These lights come with a pre-installed 6-conductor harness. In addition, the cable
also contains a bare drain wire and foil shielding.
+ -
BLACK
BARE
Orange w/Red
Flashing Warning Lights
Steady Burn Warning Lights
Green w/Red
White w/Brown
Pursuit Lights (Flashing DLP)
Green w/Yellow
Takedown Lights (Steady Burn DLP)
Warning Lights
DLP
Lights
Ignition Switched +12VDC
Red
User Supplied Switches
10 AMP
FUSE
Wire
Function
Bare Ground
Black Ground
Red Power to light
(+12VDC ignition switched – 10.5A)
Orange w/Red Warning LED Flashing Mode
Green w/Red Warning LED Steady Burn (and Burst)
White w/Brown DLP LED Pursuit Mode
Green w/Yellow DLP LED Takedown Mode (Steady Burn)
Quick Wiring Guide
All wires connected to the positive terminal of the battery should be fused at the
battery for their rated load. Testing the light before this fuse is properly
installed will void the warranty on the light.
