11
Installation of Bearing Display Module BDM
Own program (14-20)
Sets program number 14 – 20
3 seconds
3 seconds
Increases value at 20 mA
3 seconds
Displayed value
at 20 mA
Displayed value
at 4 mA
Increases value at 4 mA
Sets decimal point position
Ends programming mode
• Positive value: jumps to max.
• Value 0: toggles between + and –
• Negative value: jumps to min.
Starts programming mode
• Positive value: jumps to max.
• Value 0: toggles between + and –
• Negative value: jumps to min.
Own programs
You can make programs for any type of meas-
ured quantity with a measuring range of –99 to
999 and represented by the incoming analog
signal. You set
• Program number 14 to 20
• Display format (max. 3 digits, 0 to 2
decimals.
• Measured value represented by 20 mA.
• Measured value represented by 4 mA.
If you overstep the desired number setting with
button B, you have to start over again from the
beginning. For any value on the display other
than 0, pressing A while you hold down B takes
you straight to the max. value.
To set negative values, use button B to set the
display to 0, then change from + to – by press-
ing A while holding down B.

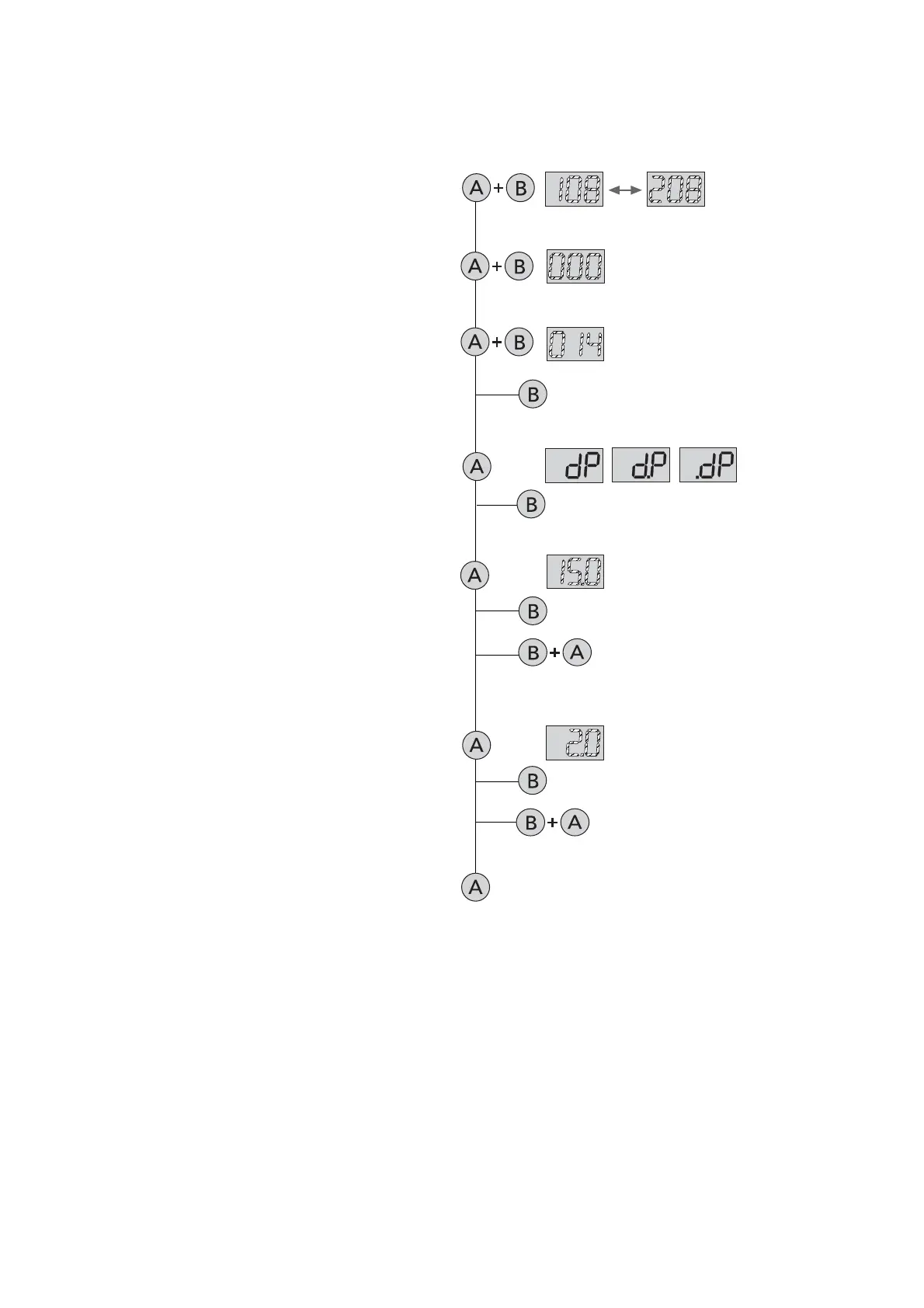

1. Hold down A+B until all LEDs light up. The
display shows the active program(s).
2. Hold down A+B until the display flashes
”000”.
3. Hold down A+B until the display shows a
program number (flashing).
4. Press B repeatedly until the desired
program number (14 - 20) is shown.
5. Press A to go to the decimal point setting.
B moves from none to one to two decimal
places.
6. Press A to go to the value represented by
20 mA. B increases value.
7. Press A to go to the value represented by 4
mA. B increases value.
8. Press A to exit the programming mode.
Program number
Decimal
point
3 seconds
3 seconds
To select the program, go to programming "One
channel mode" (see page 7) or "Two channel
mode" (see page 8).
