Spod BantamX - DIP Switch Settings; DIP Switch 1 Functions; DIP Switch 2 Voltage Selection; DIP Switch 3 Key-on Control

DIP SWITCH
1
2
3
4
5
6
USE / DESCRIPTION
Three purposes:
1) Initialize “pairing mode” for Bluetooth applications.
2) Disable deep sleep mode.
3) Troubleshooting.
Change between 12V (OFF position) and 24V (ON
position) electrical systems.
Key-on lock-out control. ON position allows switch #1 to
only be active when the ignition is on.
Key-on lock-out control. ON position allows switch #2 to
only be active when the ignition is on.
Multiple Source select. Used to identify Bantam.
Multiple Source select. Used to identify Bantam.

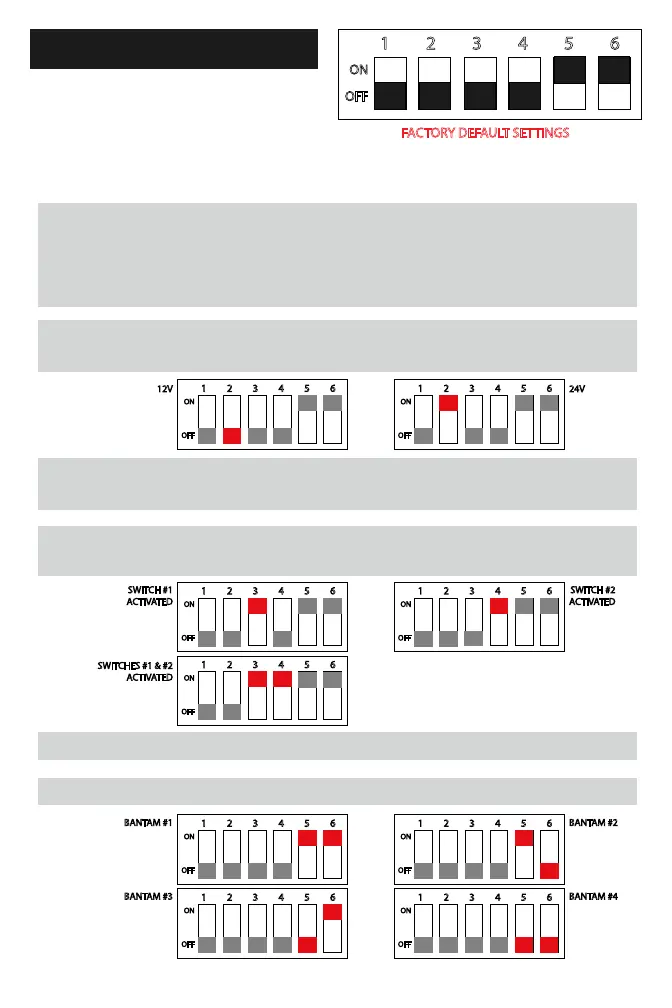

DIP SWITCH SETTINGS
1 2 3 4 5 6
OFF
ON
FACTORY DEFAULT SETTINGS
1 2 3 4 5 6
ON
OFF
1 2 3 4 5 6
ON
OFF
1 2 3 4 5 6
ON
OFF
1 2 3 4 5 6
ON
OFF
1 2 3 4 5 6
ON
OFF
1 2 3 4 5 6
ON
OFF
1 2 3 4 5 6
ON
OFF
1 2 3 4 5 6
ON
OFF
1 2 3 4 5 6
ON
OFF
12V 24V
SWITCH #1
ACTIVATED
SWITCH #2
ACTIVATED
SWITCHES #1 & #2
ACTIVATED
BANTAM #1 BANTAM #2
BANTAM #3 BANTAM #4
