8. STEPS OF ASSEMBLY

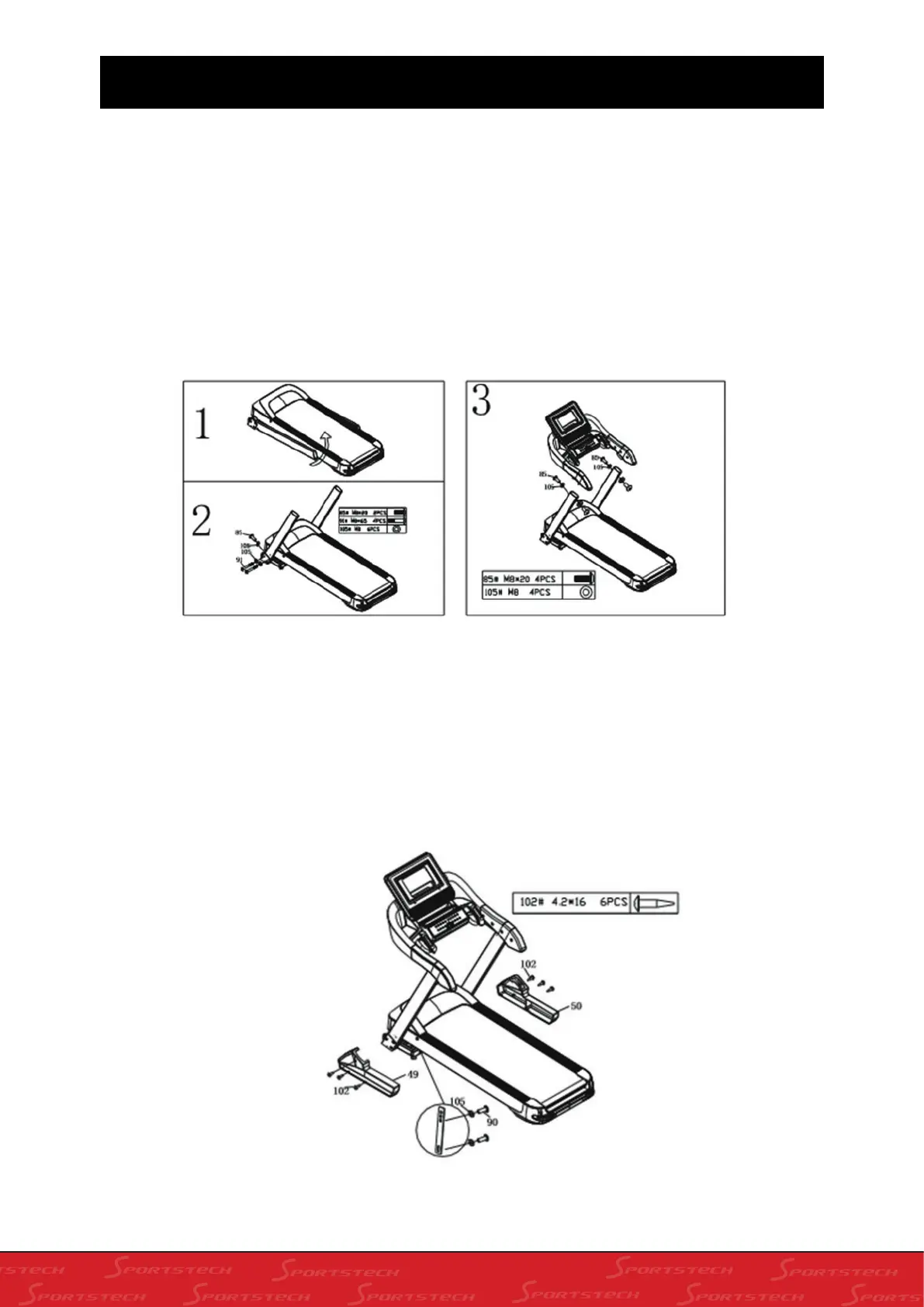

STEP 1: INSTALLATION OF COMPLETE MACHINE
1. Hold the electronic meter and slowly lift it to fixed screw hole.
2. Fix electronic meter onto column with 85# screw,and105# flat gasket.
3. Fix column onto pedestal with 85# screw,91# screw and 105# flat gasket.
Then remove package stator (red) fixing frame and pedestal, and prevent the frame from hurting people when
bouncing off.
STEP 2: ASSEMBLY OF LEFT AND RIGHT SIDE COVERS
remove package stator (red) fixing frame and pedestal, and prevent the frame from hurting people when bouncing off.
1. Fix the left and right side covers on both sides of pedestal with 102# screw and lock them.
