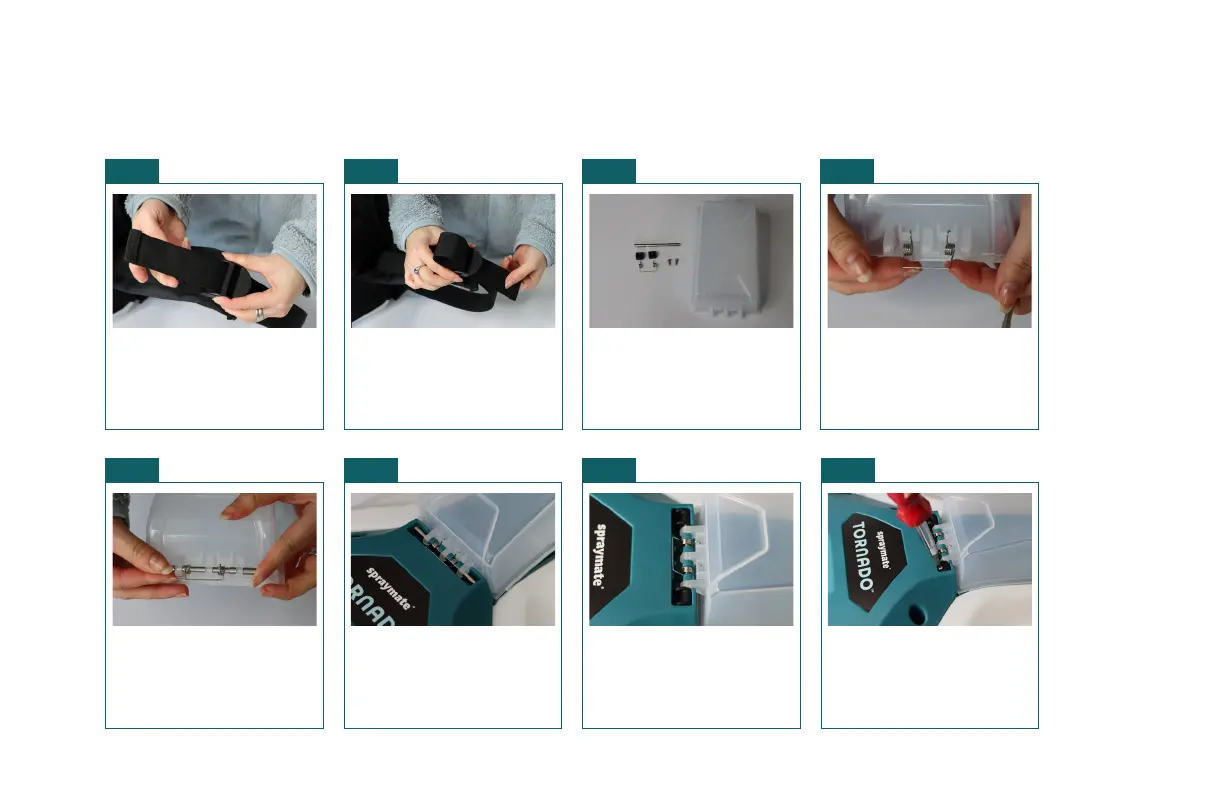

Gather parts needed to install
battery door cover: battery door
(5), spring, pivot pin, screws (x2),
clamps (x2). (6)
11
Set the spring inside the pockets
of the battery door and align the
spring with the pockets.
12
Install the pivot pin by inserting
through the battery door and
the spring pockets.
13
Place battery door (5) onto
battery holster and rmly press
into place. Push the pivot pin
under and behind the teal hinge
pocket.
14
Once the battery door (5) is
inserted, place the clamps as
shown.
15
Place the screws into the
clamps. Using a Phillips head
screwdriver, screw into place to
secure battery door.
16
To connect the padded strap
to the lower strap, begin by
inserting the lower strap through
the upper side of the buckle.
9
Loop the strap over and through
the buckle, the strap should
come out underneath the tab
on the buckle. Pull through to
tighten.
10
Copyright © WESSOL, LLC
11
TORNADO | SMSASM Operation Guide
