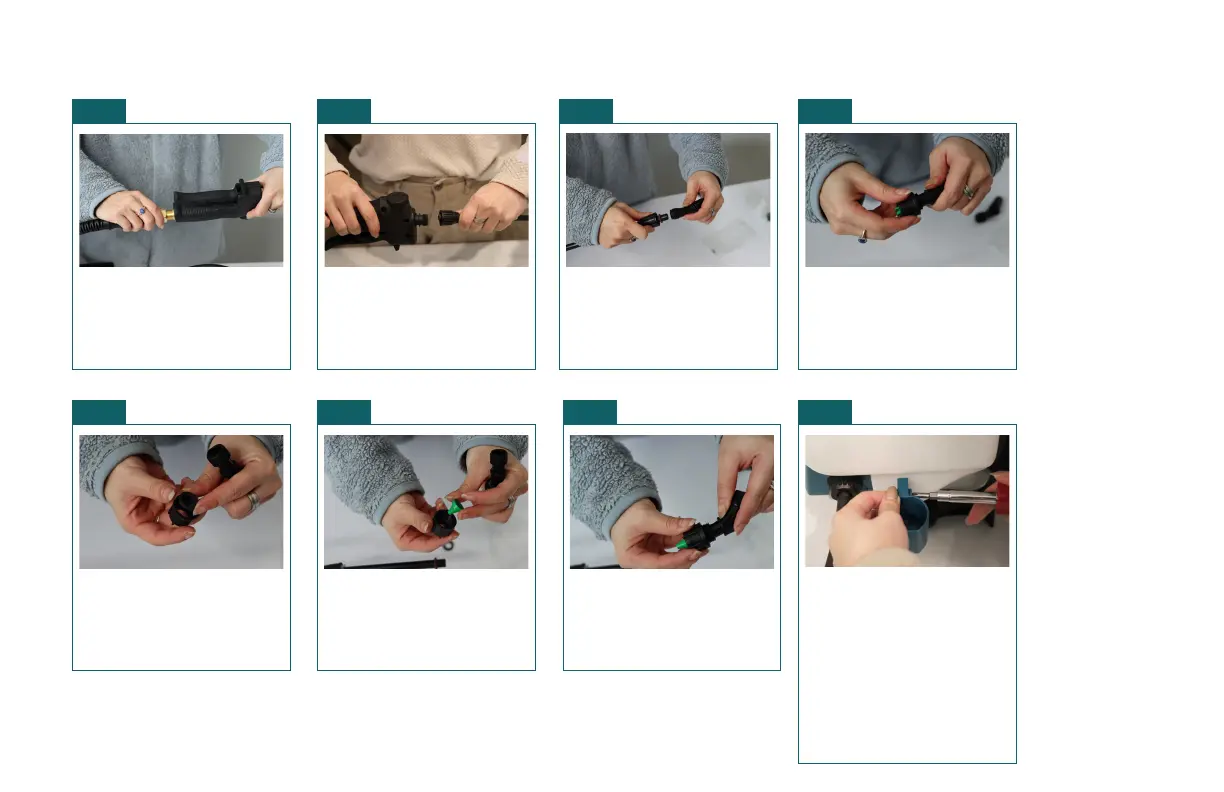

Attach the hose (14) by threading
it onto the inline spray handle.
(11)
17
Insert your spray tip of choice,
then place the o-ring gasket on
top of the spray tip.
22
Attach your nozzle of choice to
the carbon ber wand (10) by
screwing the wand collar into
the threads on the nozzle.
19
To change the TeeJet® style
nozzle included with your
sprayer, begin by unscrewing
the cap from the 45° base.
20
Remove the TeeJet® style tip
along with the o-ring gasket
from inside the cap.
21
Screw the nozzle base back onto
the nozzle tip and cap.
23
Attach the carbon ber spray
wand (10) onto the other end of
the in-line spray handle (11) by
screwing the wand collar into
the threads on the spray handle.
18
Place the bottom holster (9)
on the proper location on tank.
While holding the holster, place a
nut on one side of the hexagonal
slot and screw the bolt through
the other side until it fastens into
the nut. Repeat for other slot on
bottom holster. The wand can be
placed in the holster until ready
to spray.
24
