Chapter 1: Introduction
Chapter 1:4
Starter Selection
Important Notes
PCEC Controller Panel - 120V Control Voltage
DELTA Connected - 6 Wire Line Connected - 3 Wire
Frame Size
With 120VAC 50/60 Hz
Control Voltage
Catalog Number
Maximum Horsepower
Overload
Range
Maximum Horsepower
Overload
Range 200V 240V 480V 575V 200V 240V 480V 575V
10 10 20 30 10.9…32.9 5 5 10 15 6.3…19 1 PCEC-032-600V-120V
15 15 30 40 17…51 7.5 10 20 25 10…30 1 PCEC-051-600V-120V
20 20 40 60 21.3…64 10 10 25 30 12.3…37 1 PCEC-064-600V-120V
20 25 50 60 24.7…74 10 15 30 40 14.3…43 2 PCEC-074-600V-120V
30 40 75 100 34.7…104 15 20 40 50 20…60 2 PCEC-104-600V-120V
40 50 100 150 49…147 25 30 60 75 28.3…85 2 PCEC-147-600V-120V
75 75 150 200 59…234 40 50 100 125 34…135 3
PCEC-234-600V-120V
PCEC Controller Panel - 230V Control Voltage
DELTA Connected - 6 Wire Line Connected - 3 Wire
Frame Size
With 230VAC 50/60 Hz
Control Voltage
Catalog Number
Maximum Horsepower
Overload
Range
Maximum Horsepower
Overload
Range 200V 240V 480V 575V 200V 240V 480V 575V
10 10 20 30 10.9…32.9 5 5 10 15 6.3…19 1 PCEC-032-600V-230V
15 15 30 40 17…51 7.5 10 20 25 10…30 1 PCEC-051-600V-230V
20 20 40 60 21.3…64 10 10 25 30 12.3…37 1 PCEC-064-600V-230V
20 25 50 60 24.7…74 10 15 30 40 14.3…43 2 PCEC-074-600V-230V
30 40 75 100 34.7…104 15 20 40 50 20…60 2 PCEC-104-600V-230V
40 50 100 150 49…147 25 30 60 75 28.3…85 2 PCEC-147-600V-230V
75 75 150 200 59…234 40 50 100 125 34…135 3
PCEC-234-600V-230V
Motor FLA must fall within the specified range to operate correctly.
The PCEC Controller panel powerwire jumpers and parameter DIP switch settings are shipped in the DELTA connection mode
by default. LINE connection requires the power wires to be reconfigured and DIP Switch #15 to be programmed for LINE
connection mode by the customer.
Internal fan is optional for PCEC-032…064. See Replacement Parts on page 4:4 to purchase separately. All other PCEC units
have internal fan as standard.
Purchase additional PCE Auxiliary Contact Blocks separately. See Section D of currently published catalog. One Auxiliary
Contact Block (one or two pole) may be mounted on the right side of the PCE controller.
Separate 120V or 240V single phase is required for PCEC fan operation.
The PCEC Hydraulic Elevator duty rating is 80 starts per hour at 50% duty cycle (160 calls per hour). Starts per hour are based
on when the motor starts, the motor only runs on “up” calls. Installing an optional fan (PCV-64) is recommended for PCEC-
032A…064A for maximum starts per hour performance. All other PCEC units have an internal fan as standard.

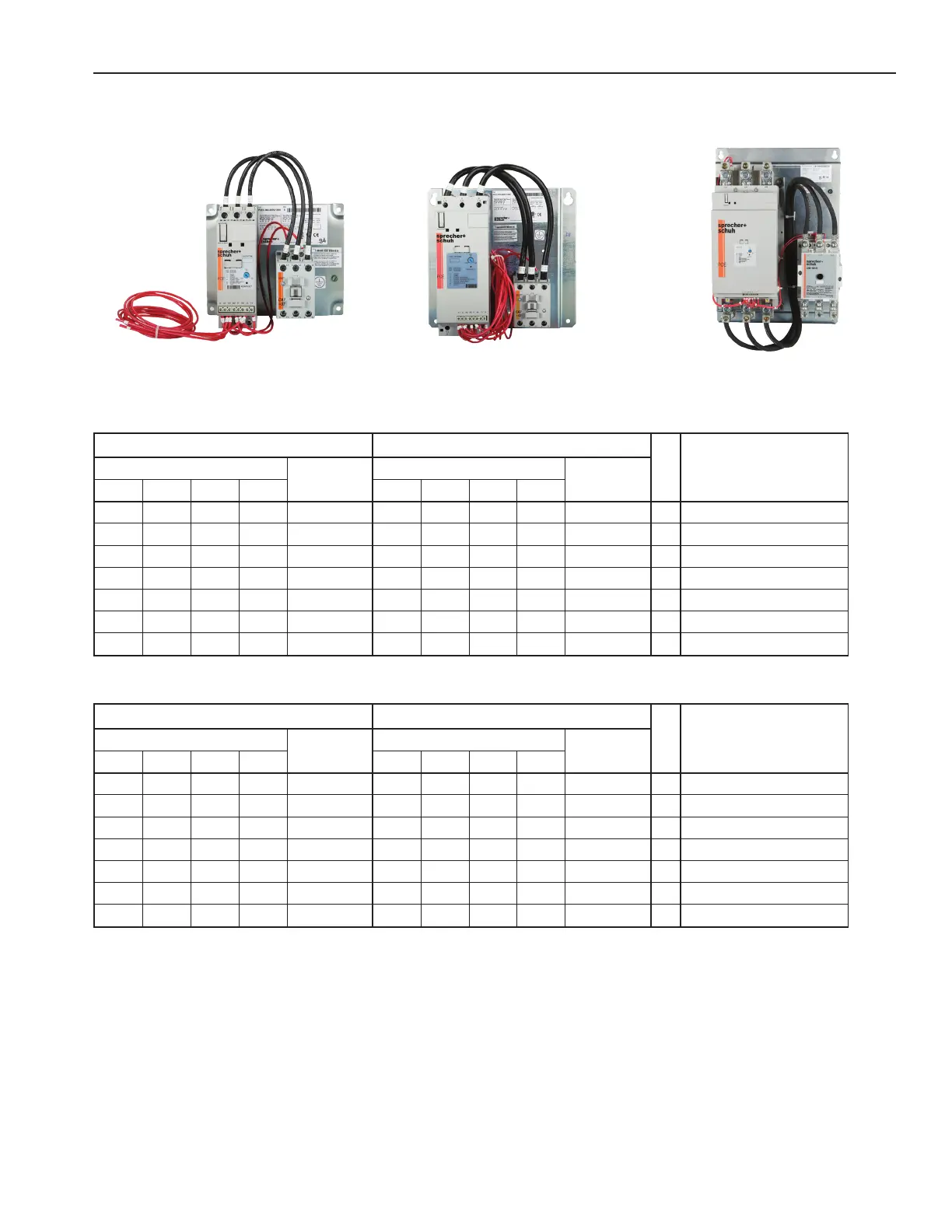

Frame Size 1 - 32…64 Amp Frame Size 2 - 74…147 Amp Frame Size 3 - 234 Amp
