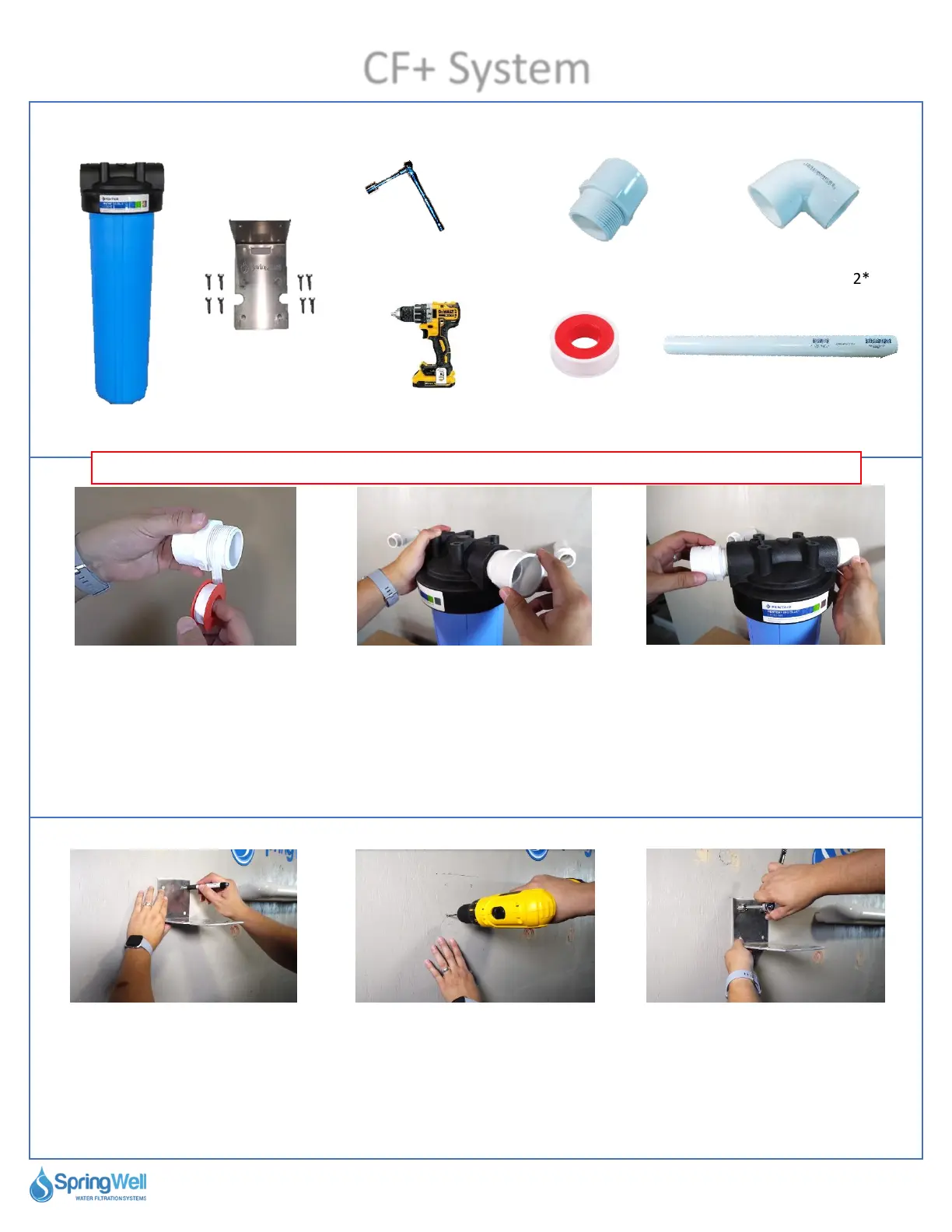

Installing the Pre-Filter
This step will require the materials listed below
Prepped Pre-Filter
Housing
39) Note: Plumbers tape will
need to be applied to all PVC
threads during the installation.
40) Install a PVC adapter onto
one side of the Pre-Filter
Housing. Fully tighten.
41) Repeat on the other side. Fully
tighten.
42) Identify the optimal area to
secure the mounting bracket
and mark for pre-drilling. The
bracket should mount to a stud
due to weight.
43) Pre-drill the holes for the
mount using the 3/16” drill bit.
Mounting
Bracket
1.5-inch Adapter (Slip x
Thread)(x2)
Plumbers Tape
44) Use 4 of the provided bolts and
washers to secure the mounting
bracket in place using a half inch
socket.
Drill with 3/16” drill bit
1/2” Socket and
Ratchet
1.5-inch Elbow
Connector (Slip) (x2*)
1.5-inch PVC Pipe (Cut to fit)
Questions? Call (800)-589-5592 10
* The quantities are suggestions. Your system configuration may vary depending on installation area.
