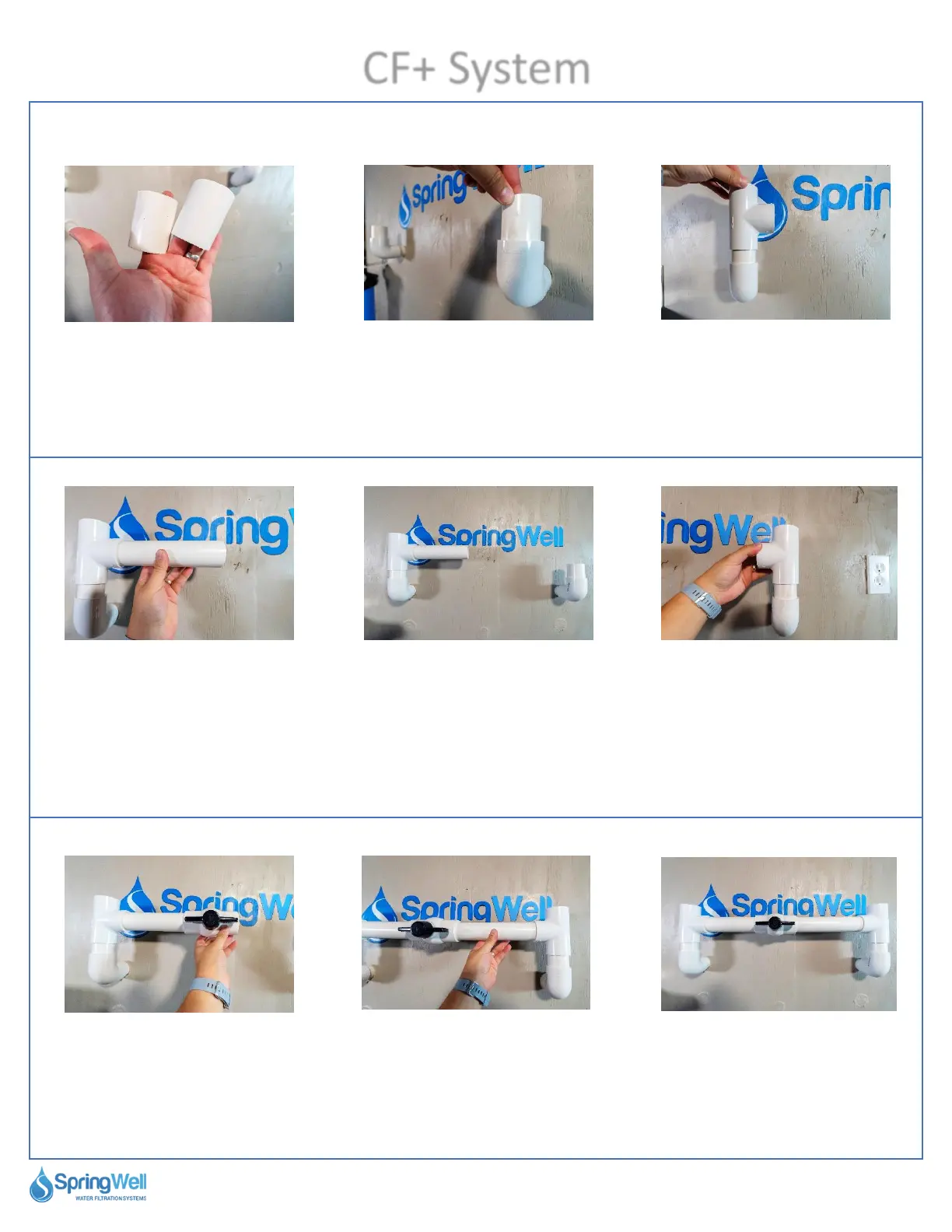

Assembling a Bypass Valve
22) Connect one of the shut off
valves to the PVC leading
between the connections.
23) Complete the connection by
cutting a piece of PVC to fit
between the connections.
24) This is what the bypass will
look like after step 23.
16) Cut two 3” pieces of PVC for the
next step.
17) Insert one piece of the cut
PVC into each of the elbows
facing upward.
18) Attach one of the 3-way
splitters with the openings
facing up and towards the
other connector
19) Cut and attach a piece of
PVC approx. 1/3
rd
of the length
to the neighboring connector.
20) This is what your bypass
should look like after step 19.
21) Attach the other 3-way
splitter to the opposite
connector. Ensure the openings
are facing up and inward.
Questions? Call (800)-589-5592 7
CF+ System
To Next Page
