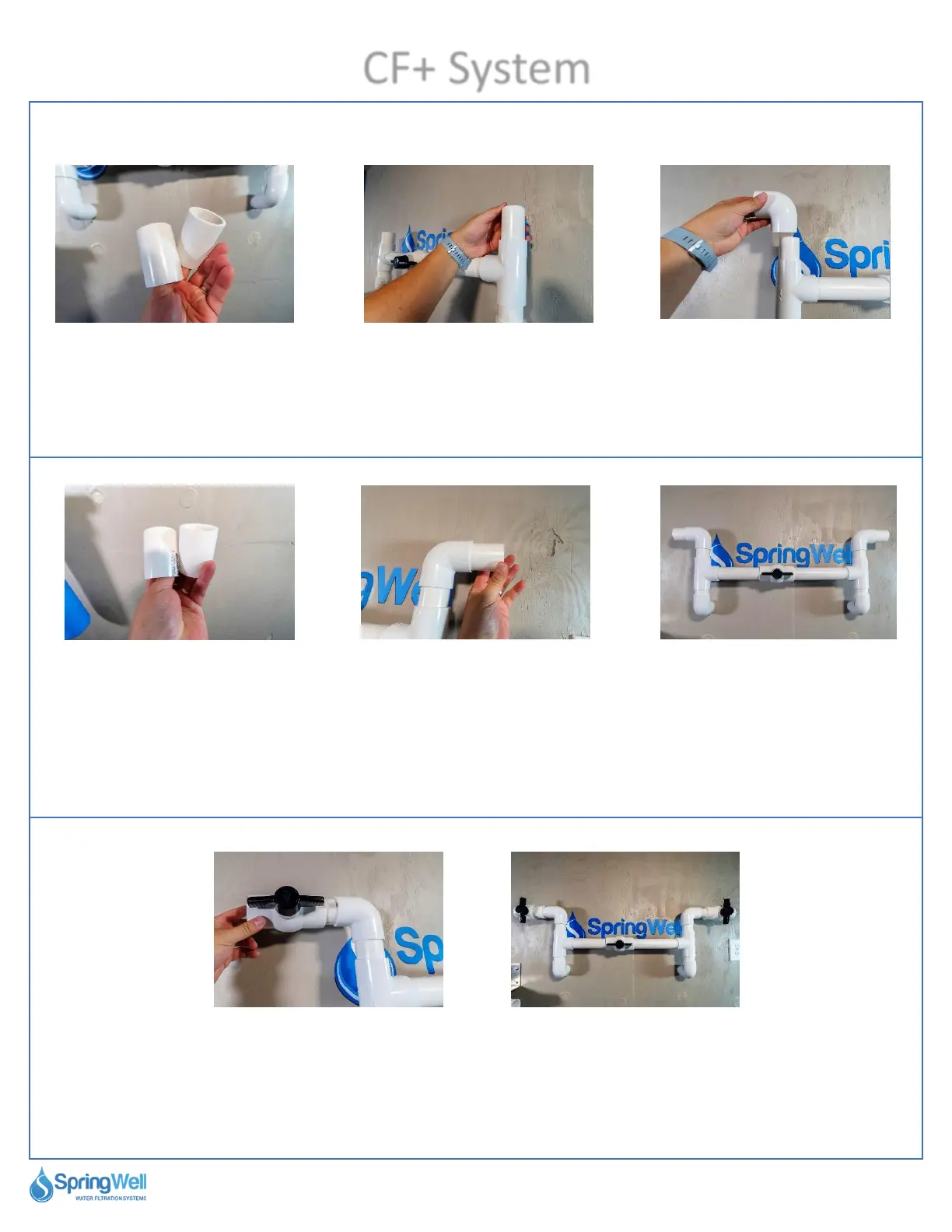

Assembling a Bypass Valve
31) Connect a shut off valve to
both sides of the bypass
assembly.
32) Assembly of the bypass
valve is now complete.
25) Cut two more 3” pieces of PVC
for the next step.
26) Insert one piece of the cut
PVC into each of the 3-way
splitters facing upward.
27) To limit the height of the
other valves, elbows are
suggested. Connect one to
both sides of the bypass
assembly facing outwards.
29) Insert the PVC pieces into
each of the elbows.
30) The bypass should look like
this after steps 25 thru 29.
28) Cut two more 3” pieces of
PVC for the next step.
