PARTS IDENTIFICATION
FRONT VIEW
2
1
3
7
2

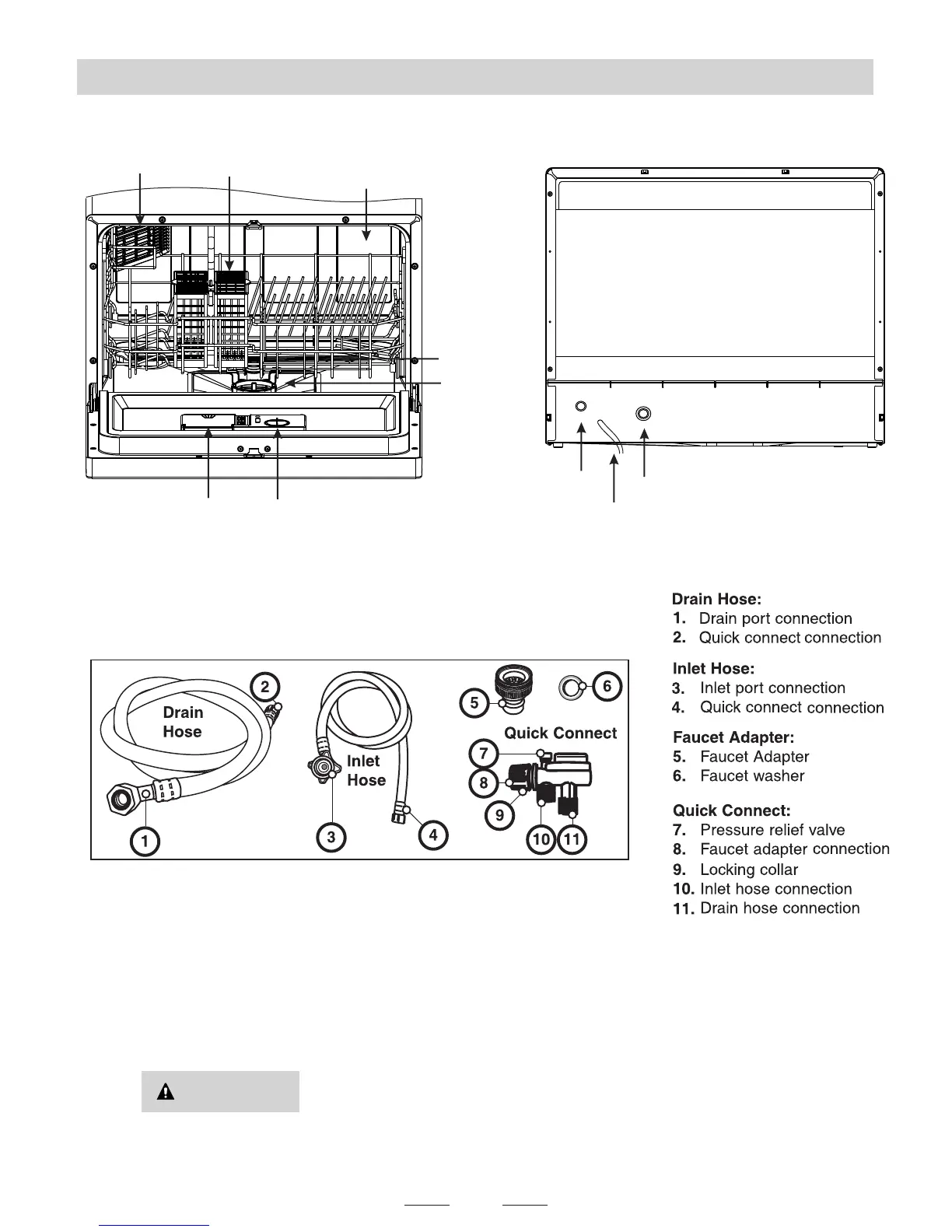

Your dishwasher comes equipped with a 'quick connect' assembly (includes inlet and drain hose). The
faucet adapter must be installed on the faucet before you can connect the dishwasher. This adapter is
included inside your dishwasher. The faucet adapter is compatible with faucets inclusive of either male
(outside) or female (inside) threaded faucet connections.
In order to avoid water pressure build up, please turn off the faucet after each use.
WARNING!
Cup Shelf
Main Basket
Cutlery Basket
Detergent
Dispenser
Rinse Aid
Dispenser
Filter
Assembly
Spray Arm
BACK VIEW
Drain Port
Inlet Port
Power Cord
ACCESSORIES
