To get the best performance from your dishwasher, read all operating instructions before using
it for the rst time.
3
Upper Basket
Sp ray Arms
Lower Basket
Detergent Dispenser
Silverware Basket
Main Filter
Cup Shelf
5
6
7
8
Rinse Aid Dispenser
Coarse Filter
9
10
12
11
3
2
1 4
Faucet Adapter Assembly (Quick Connect)
Power Cord
Caster
Front View
(Door Open)
Back View
1
2
3
4
5
6
7
8
9
10
11
12

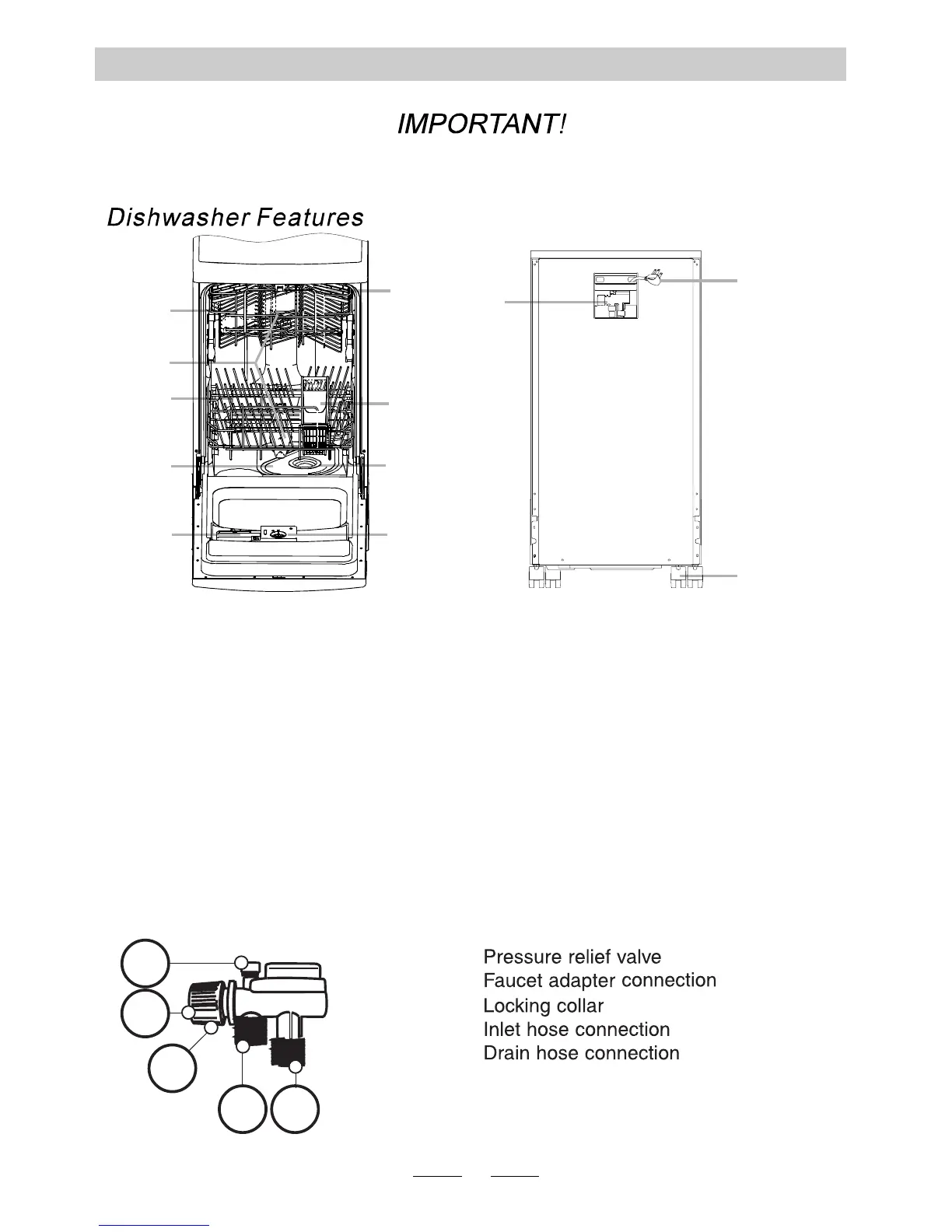

PARTS IDENTIFICATION
FAUCET ADAPTER ASSEMBLY (QUICK CONNECT)
Your dishwasher comes equipped with a Faucet Adapter Assembly (#10 above) The faucet adapter
is to be installed on the faucet. This adapter is located on the back of the dishwasher. The faucet adapter
is compatible with faucets inclusive of either male (outside) or female (inside) threaded faucet connections.
1
2
3
4
5
1.
2.
3.
4.
5.
