Single seat and change-over valve
DELTA SW4
Instruction manual: UK - rev.4
APV

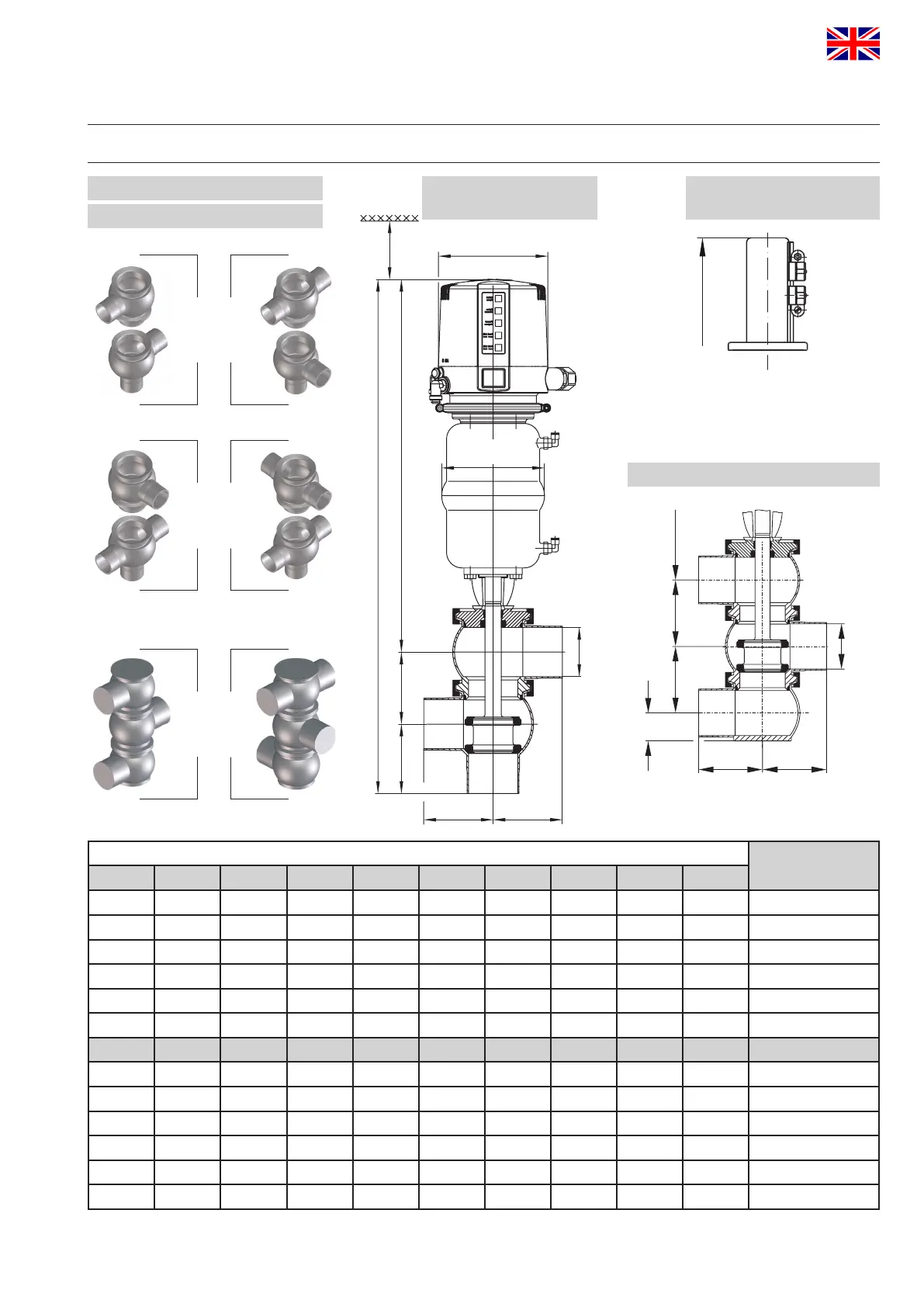

8. Dimensions/Weights
Dimensions in mm
Weight
in kg
DN A L ∅ Di F ∅ G H ∅ K A1 L1
25 410 514 26 50 18 54 86 338 442 6
40 414 547 38 67 24 66 86 342 475 6
50 451 601 50 72 32 78 126 379 529 8
65 459 638 66 85 40 94 126 387 566 8
80 512 719 81 98 47,5 109 189 440 647 15
100 522 761 100 111 57 128 189 450 689 17
Inch
1" 408 509 22,6 50 16,3 50,6 86 336 437 6
1,5" 412 542 34,9 67 22,4 62,9 86 340 470 6
2" 450 598 47,6 72 30,8 75,6 126 378 526 8
2,5" 456 629 60,3 85 37,2 88,3 126 384 557 8
3" 507 698 72,9 90 43,5 100,9 189 435 626 15
4" 520 757 97,6 111 55,8 125,6 189 448 685 17
A1 / L1
∅ Di
∅ Di
Ø 134
Ø K
F
A / A1H H
G
F
F
F
F H A
L
200
8.2. Change-over valve
housing variants
Change-over valve
with CU4 control unit
Valve position indicator
SWE 45/46
SWE 45 SWE 46
SW 47
SW 48
SW 43
SW 44
