Single seat and change-over valve
DELTA SW4
Instruction manual: UK - rev.4
APV

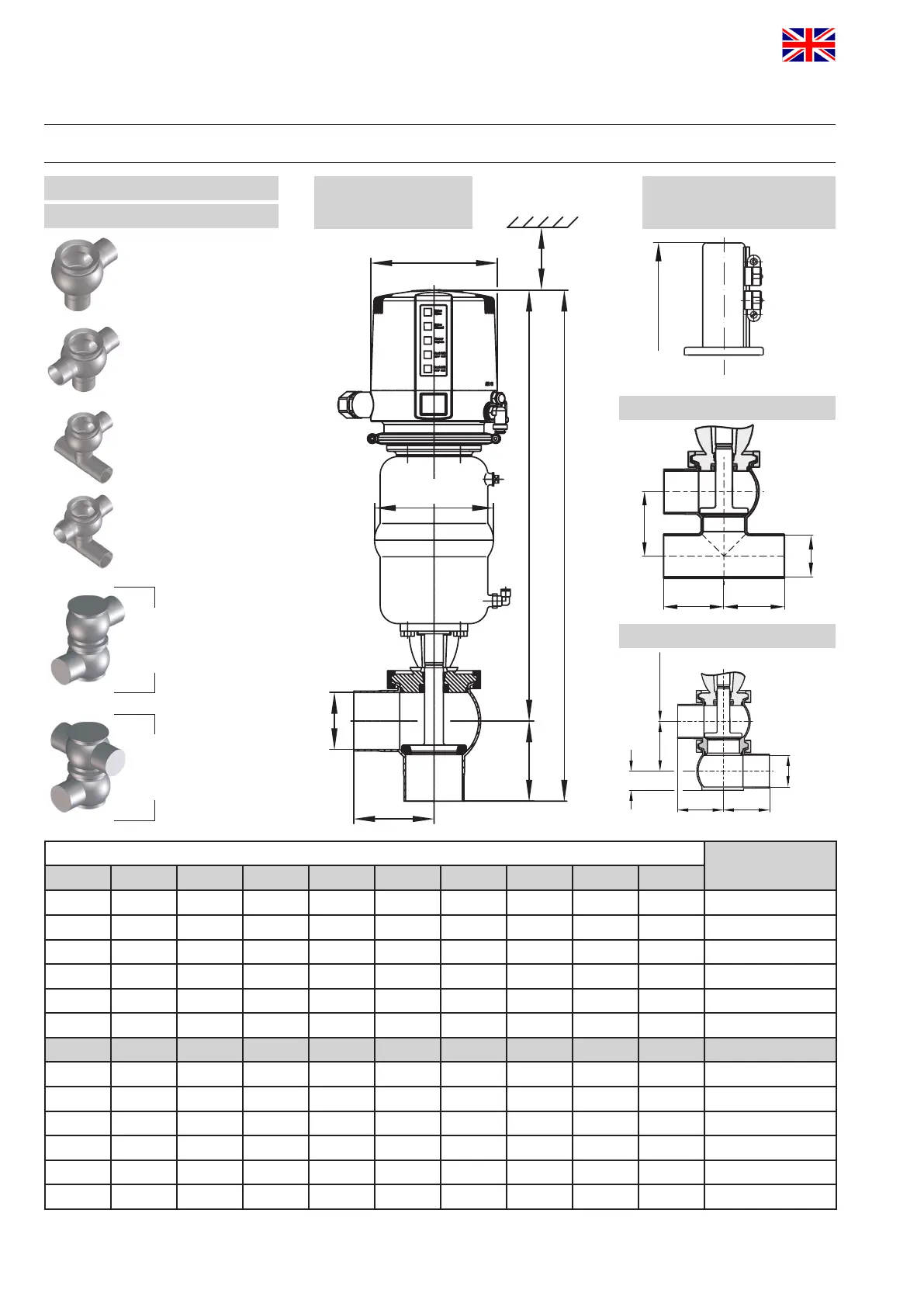

8. Dimenions/Weights
Dimensions in mm
Weight
in kg
DN A L ∅ Di F ∅ G H ∅ K A1 L1
25 410 460 26 50 18 54 86 338 388 5
40 414 481 38 67 24 66 86 342 409 5
50 451 523 50 72 32 78 126 379 451 7
65 459 544 66 85 40 94 126 387 472 7
80 512 610 81 98 47,5 109 189 440 438 13
100 522 633 100 111 57 128 189 450 561 15
Inch
1" 408 458 22,6 50 16,3 50,6 86 336 386 5
1,5" 412 479 34,9 67 22,4 62,9 86 340 407 5
2" 450 522 47,6 72 30,8 75,6 126 378 450 7
2,5" 456 541 60,3 85 37,2 88,3 126 384 469 7
3" 507 597 72,9 90 43,5 100,9 189 435 525 13
4" 520 631 97,6 111 55,8 125,6 189 448 559 15
8.1. Single seat valve
housing variants
SW 41
SW 42
SWE 43
SWE 44
SWE 42 SWE 41
Single seat valve
with CU4 control unit
Valve position indicator
SWE 43/44
SWE 41/42
