INSTALLATION, OPERATION and MAINTENANCE MANUAL | 27

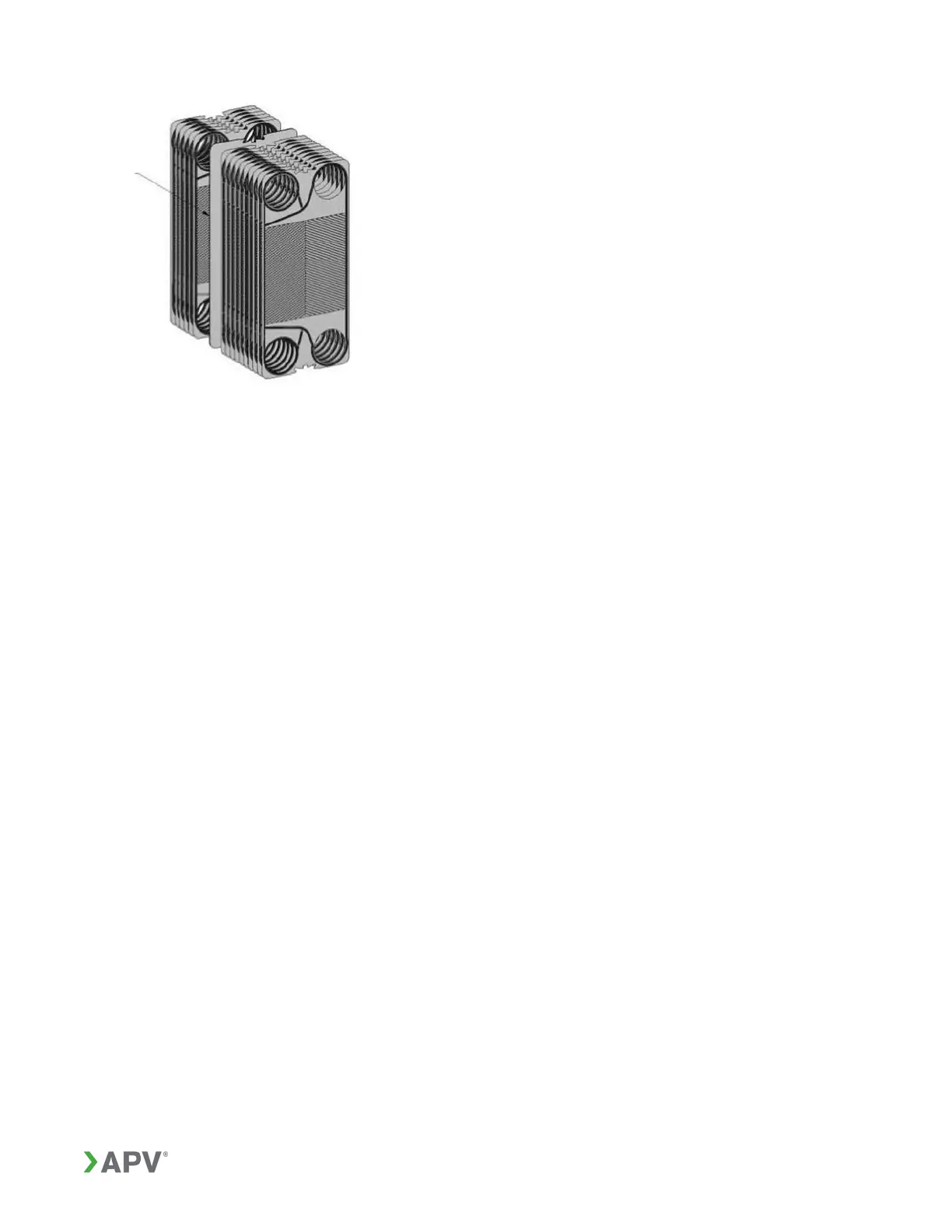

Figure 16: Divider plate
6. DRAWINGS
6.1. Customer Drawing
A customer drawing is supplied with each APV Plate Heat Exchanger. This drawing
provides detailed information concerning design specifications, operating conditions,
dimensions, connections, plates and gaskets, plate arrangement diagram and key, bill
of material and special notes. An example of the customer drawing is shown in Figure
17.
Design Specifications
The data list on the design specifications provides the key mechanical information used
to design the plate heat exchanger. This includes the design code, maximum allowable
working pressure and temperature, maximum and minimum pitch dimensions, heat
transfer area, frame size, maximum plate capacity, weights, and liquid volume in the
GPHE.
Operating Conditions
This table on the customer drawing contains the duty or operating conditions for which
the heat exchanger was designed. It specifies each fluid, the flow rates, the
temperatures, and the pressure drop.
Connection Schedule
The connection schedule identifies the size, material and type of each connection
supplied.
Plate and Gasket List
Each customer drawing contains a summary of the plates and gaskets used for the
plate arrangement. This summary includes plate types, angles, and material, and
gasket type, material, and attachment method (glued or clip in).
