4. Receiving of equipment
4.1 Receiving check

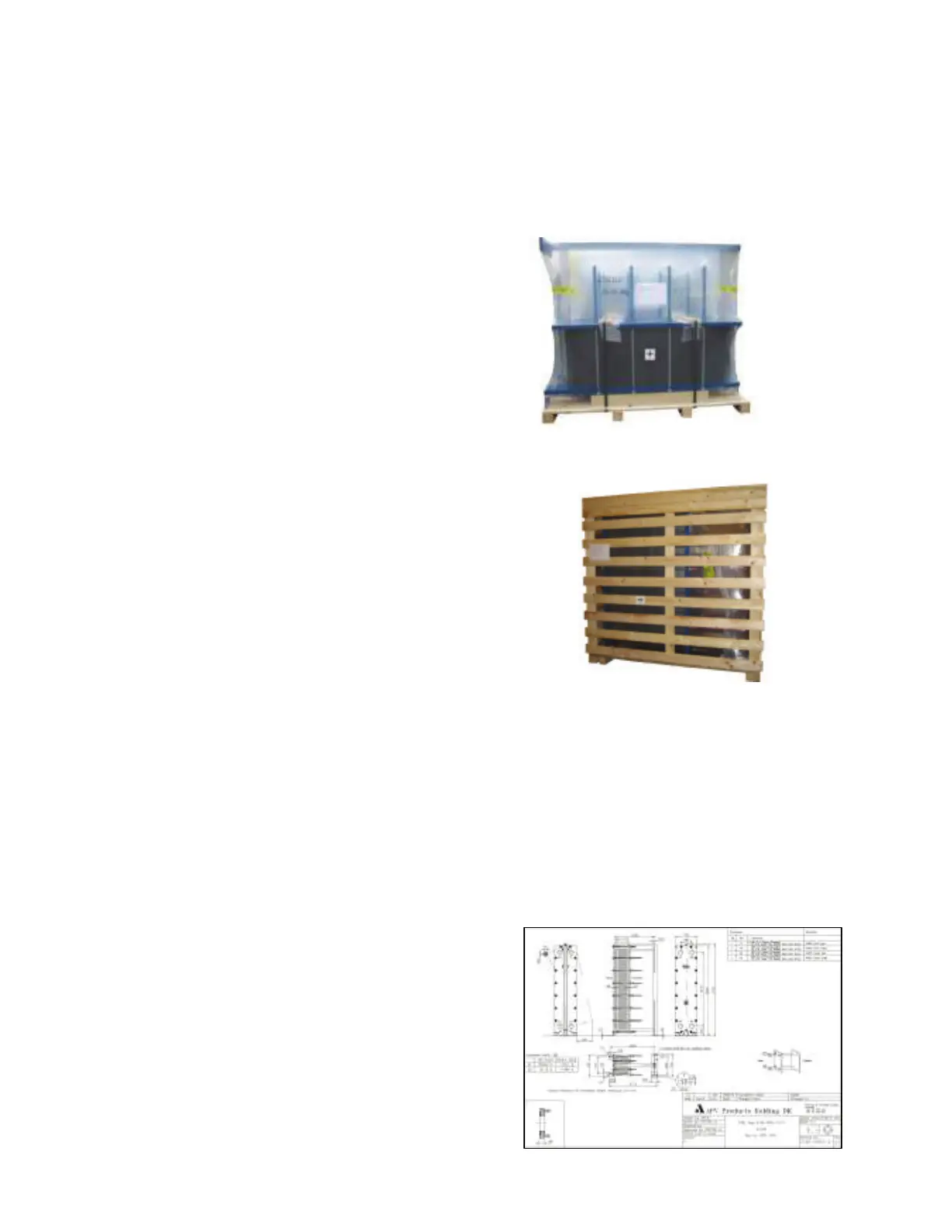

APV Plate Heat Exchangers may be shipped
fully assembled and skid mounted. The PHE
is normally mounted on pallets and wrapped
in protective plastic. Other wrappings could
be in open box or seaworthy packaging.
Prior to unpacking, check the packing for any
defects and the equipment for possible
damage that might have occurred during
transportation. Any damage as a result of
shipping must be reported immediately.
Check the equipment according to the
documentation provided with the shipment.
Any deviations must be reported
immediately.
4.2 Documents
The following documents are included with
the equipment: including the following
drawings that can be separate or integrated
into one (customer drawing):
• Assembly drawing or General
arrangement drawing
• PHE Plate Arrangement drawing
including part list
• Other order or product specific
documents
4.2.1 Assembly drawing
This drawing provides information
concerning overall dimensions, bolt-down
positions and a connection diagram showing
where external piping will be connected.
