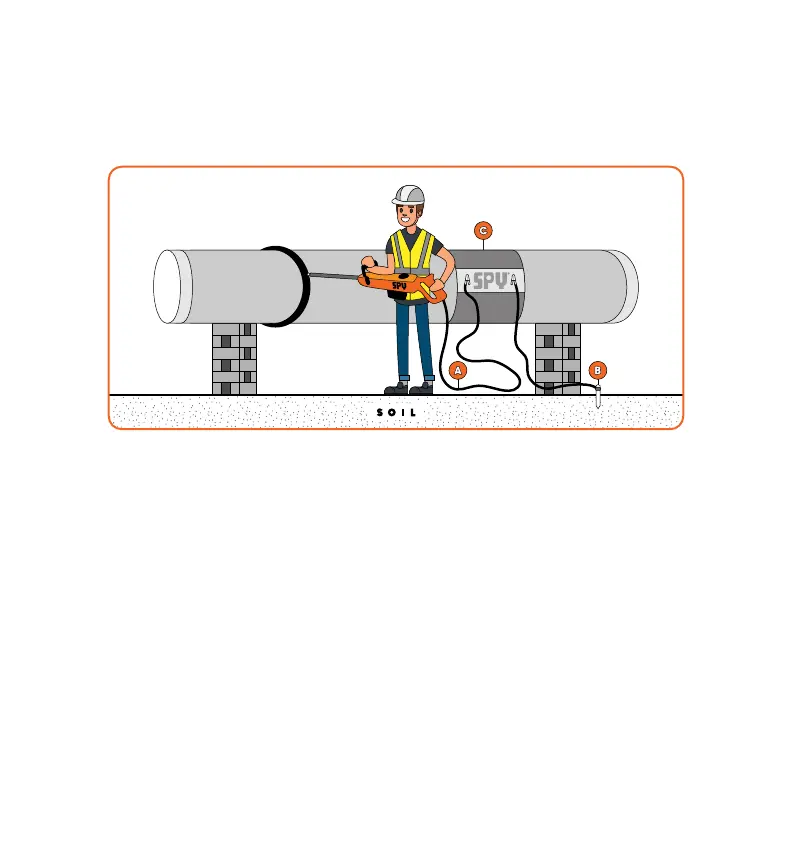

4. CAPACITIVE GROUNDING USING A GROUNDING COLLAR
The grounding collar is used if no direct or indirect grounding is possible. The
grounding collar is also recommended in case of bad conducting or extremely
dry soil. Refer to the Grounding Methods on page 16 for more details.
A. Part #12884 50 ft ground cable (custom lengths available)
Optional Parts needed to ground using this method:
B. Part #14196 Grounding Rod
C. Part #14188 Grounding collar 4”- 8”
Part #14189 Grounding collar 10” - 18”
Part #14190 Grounding collar 20” - 30”
Part #14191 Grounding collar 32” - 42”
Part #14192 Grounding collar 48” - 60”
FOR USE ONLY WITH 785/790 AND 125/135 PULSE DC UNITS
