SPY 790 - Controls and Voltage Adjustments; Setting the Voltage Output

20
controls and vo ltag e
adjustments

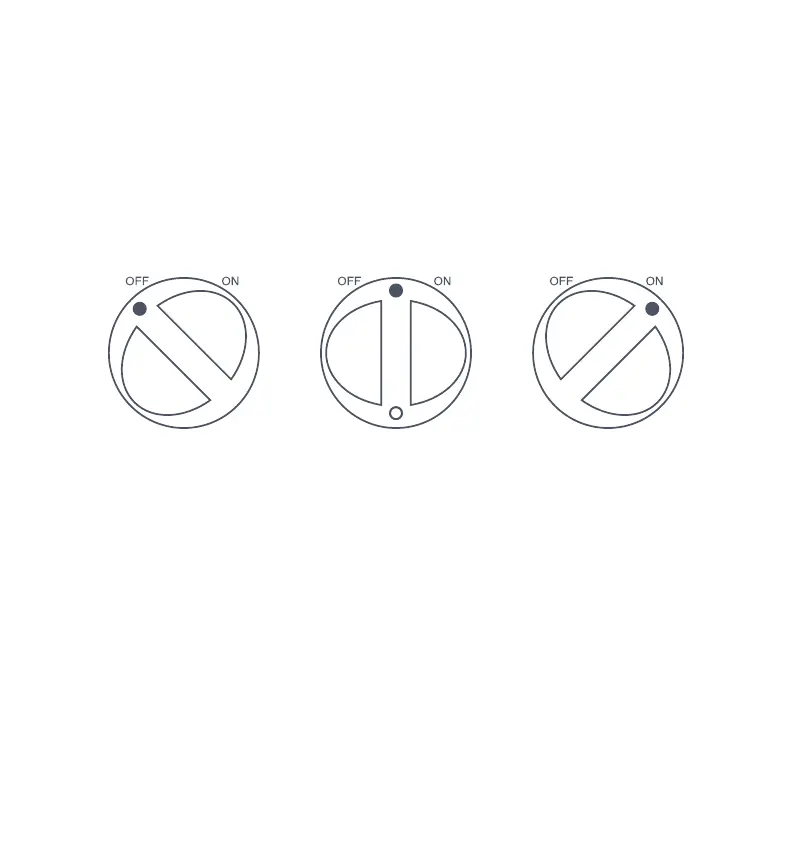

The control knob has three positions: OFF, VOLTAGE SET, and ON.
In the OFF position all power is off, including the high voltage output.
STEP 6. SETTING THE VOLTAGE OUTPUT. Turn the knob
clockwise to the middle position (voltage set) this turns on the high
voltage output and activates the internal JeepMeter (voltage meter), the
LCD display turns on, the red indicator LED light will blink and the horn
tone will pulse on and off.
Using the SPY
®
provided flathead screwdriver place the flat screwdriver
head through the hole on the bottom side of the knob to change
the voltage setting, the voltage (shown on display) is in kilovolts
(thousands of volts). Turning the screwdriver clockwise will increase the
voltage and counter clockwise will decrease the voltage.
POWER ON
RIGHT
POWER OFF
LEFT
VOLTAG E SET
MIDDLE
