connecting
accessories
CAUTION! DO NOT TOUCH. Make sure the switch is in the OFF position
prior to connecting any accessory.

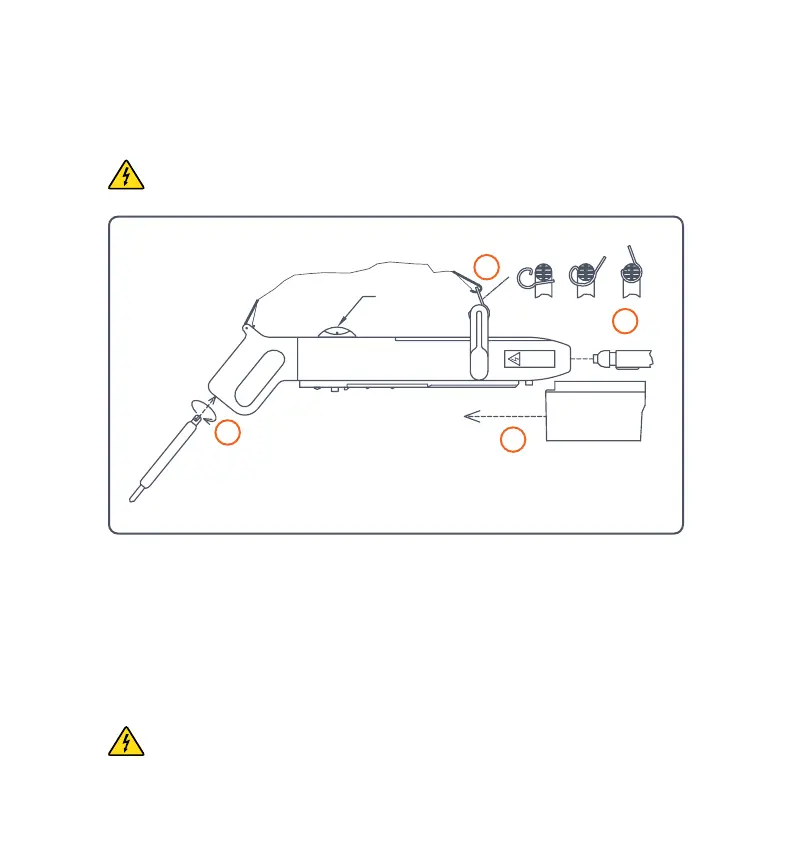

STEP 1. CONNECTING THE ELECTRODE WAND. Plug into the “front”
of the detector. Push the wand in until it locks in place. It can be released by
pressing the release (located near the front / bottom of the unit) upwards until
the wand pops out.
STEP 2. CONNECTING THE ELECTRODES. Connect the electrode to the
wand. The wand comes with the spring adapter attached to the wand. If it is a
spring or full circle brush electrode attach to the pipe.
CAUTION! DO NOT TOUCH THE ELECTRODE WHILE THE DETECTOR
IS OPERATING.
Battery
Control Knob
Shoulder Strap
Electrode Wand
Caution! - High Voltage
Cuidado! - Voltaje Alto
1 2 3
Clip Installation
1
3
4
5
