SR SUNTOUR / HOW TO CHECK & REPLACE / RL , RL-R CARTRIDGES
11

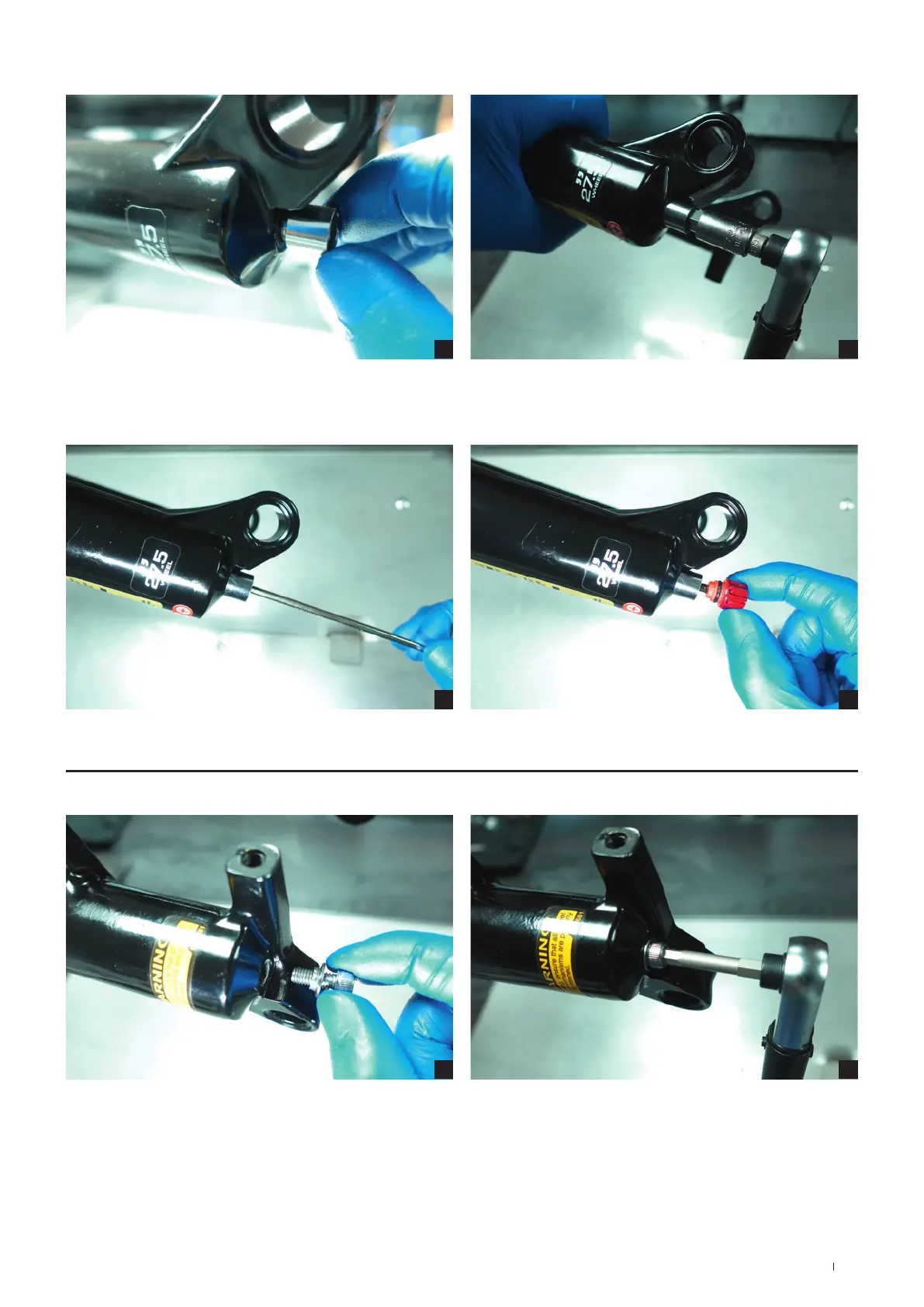

Use a 3mm Allen key to set the rebound to fully-open (turning it counterclockwise) then close it by 1-2 turns
(turning it clockwise). Remove the Allen key and reinstall the rebound adjuster knob by pressing it into the
bolt.
6 7
1 2
AIR SIDE
Install both the washer and bolt. Use a torque wrench with 5mm Allen bit and tighten to 8Nm.
First thread the bolt in by hand then use an 8mm Allen key to tighten the bolt to 12Nm.
4 5
