SR SUNTOUR / HOW TO CHECK & REPLACE / RL , RL-R CARTRIDGES
8

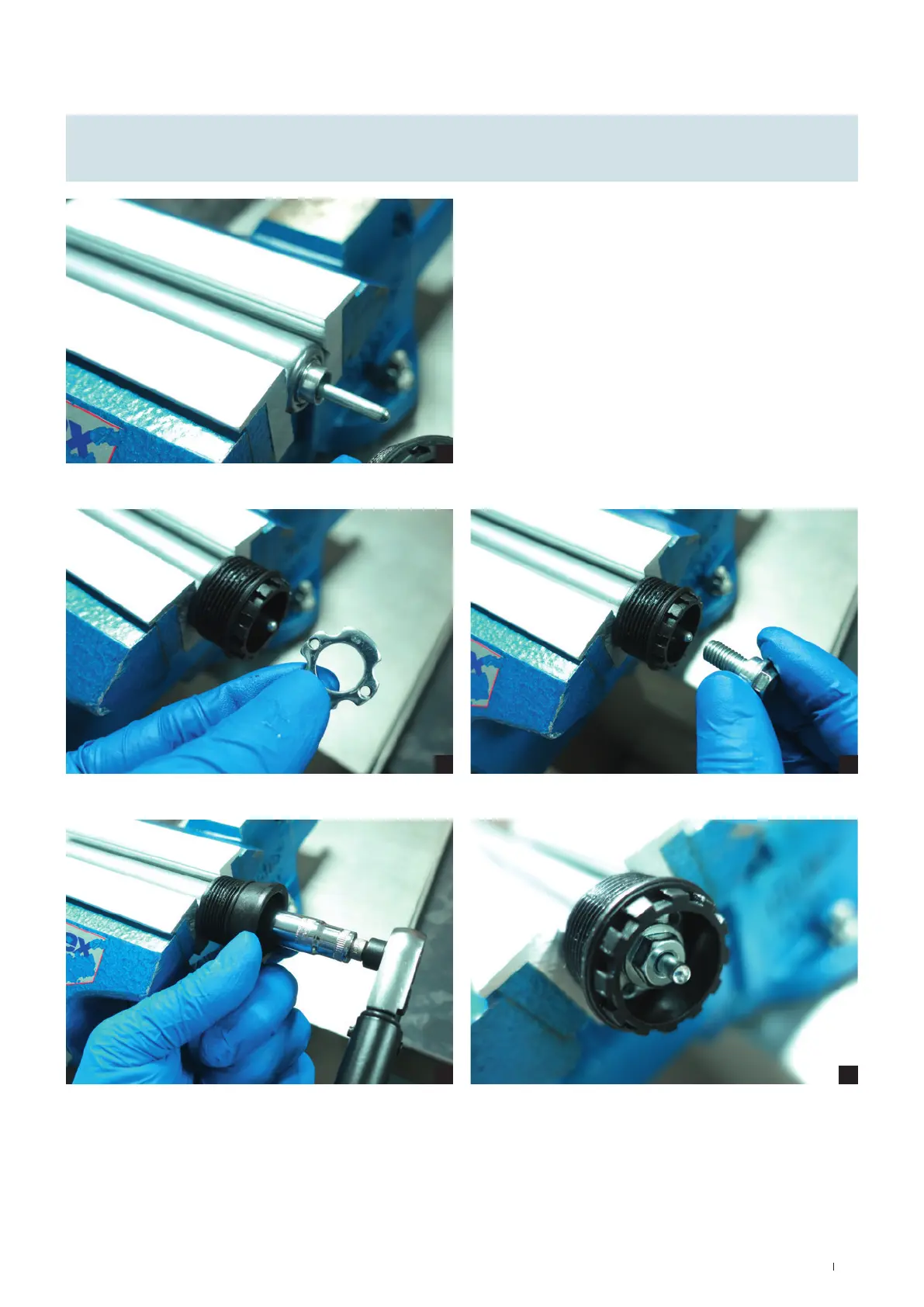

4. Remove the cartridge from the Vise. Position the new cartridge in the aluminium jaws as shown on the
image below.
Position the threaded plastic adjuster, the washer and the steel bolt.
1
2 3
Note: Do not overtighten the cartridge in the vise as this could cause damage. Use only enough force
to keep the cartridge from spinning when tightening the steel bolt.
Use a torque wrench and tighten to 10Nm.
