Instrument Configuration
This webpage allows the user to make changes to the sensor’s configuration. .
Set Date/Time: This option, when pressed, will sync the current time of the main board
to the computer on which the web interface is running.
Web Access Code: This is the code that allows the user to have access to some of the
webpages in which critical setting changes can be made.
Min. Gas%: This reading indicates the point at which anything below will be read as zero
for internal calculations.
N2/NH3/DA/H2 Flow: Gas flow values can be manually entered into these fields for
nitriding calculations such as nitriding potential (Kn), percent dissociation (%DA),
percent ammonia (%NH3), and/or super Kn. These calculations are displayed on the
Main webpage when selected on the SSI Configuration webpage.
CO2 Pres.: This is a special calculation for specific applications. The input should be set
to 0 as a default, unless specifically discussed with SSi.
Sup Neg: (Suppress Negative) When activated, any negative readings will be treated as
zero.

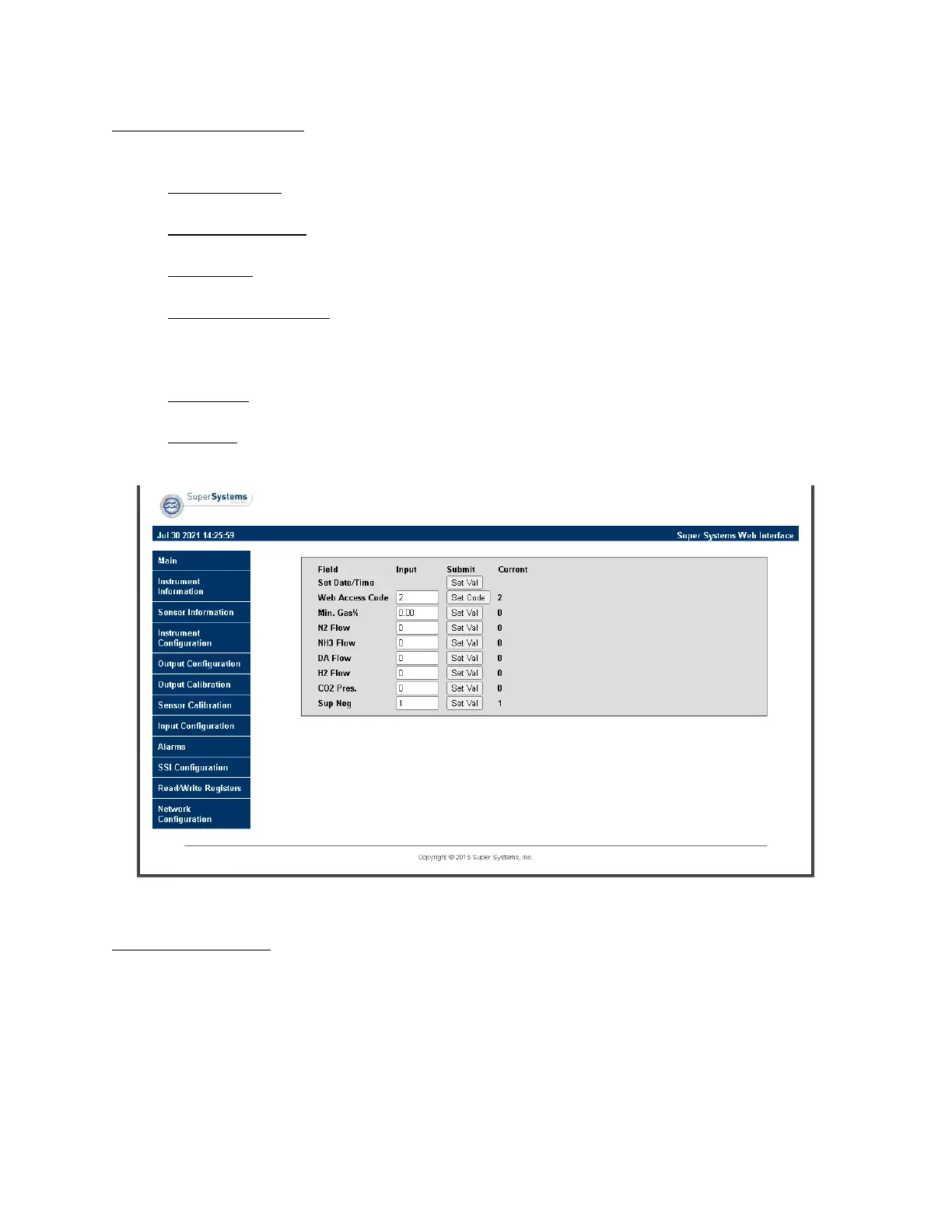

Figure 10- Instrument Configuration Page
Output Configuration
The Output Configuration options allow the user to set up an analog output milliamp signal from
the SGSM to a chart recorder or other device for recording or controlling another
process. There are two outputs that can be set up for the gas being measured or a calculated
value based on the gas measurements. The options include:
H2: Percent hydrogen reading from the sensor.
