Ssl DD999ACPW - Wiring and Connections; Power and SWC Wiring

3030
Connecons
Power and Steering Wheel Control (SWC) Wiring
CAUTION
Always replace the faulty fuse with the same
type and rang (15A).
Constant/Accessory power input is rated at 12V.
Antenna output is rated at 500mA max. It is
recommended to use a relay if addional power
is required.
NOTE
Unused input/output wires need to be insulated
with tape, heat shrink, or crimp connectors.
Never use wire nuts.
Illuminaon input wire (orange) must be
connected to the parking light for screen
dimming adjustment at night.
Reverse Input wire (Purple/white) must be
connected to the reverse light wire for the
backup camera trigger when the gear is
switched to reverse.
A separate interface might be needed for your
vehicle applicaon. It is recommended that you
consult with a professional installer.

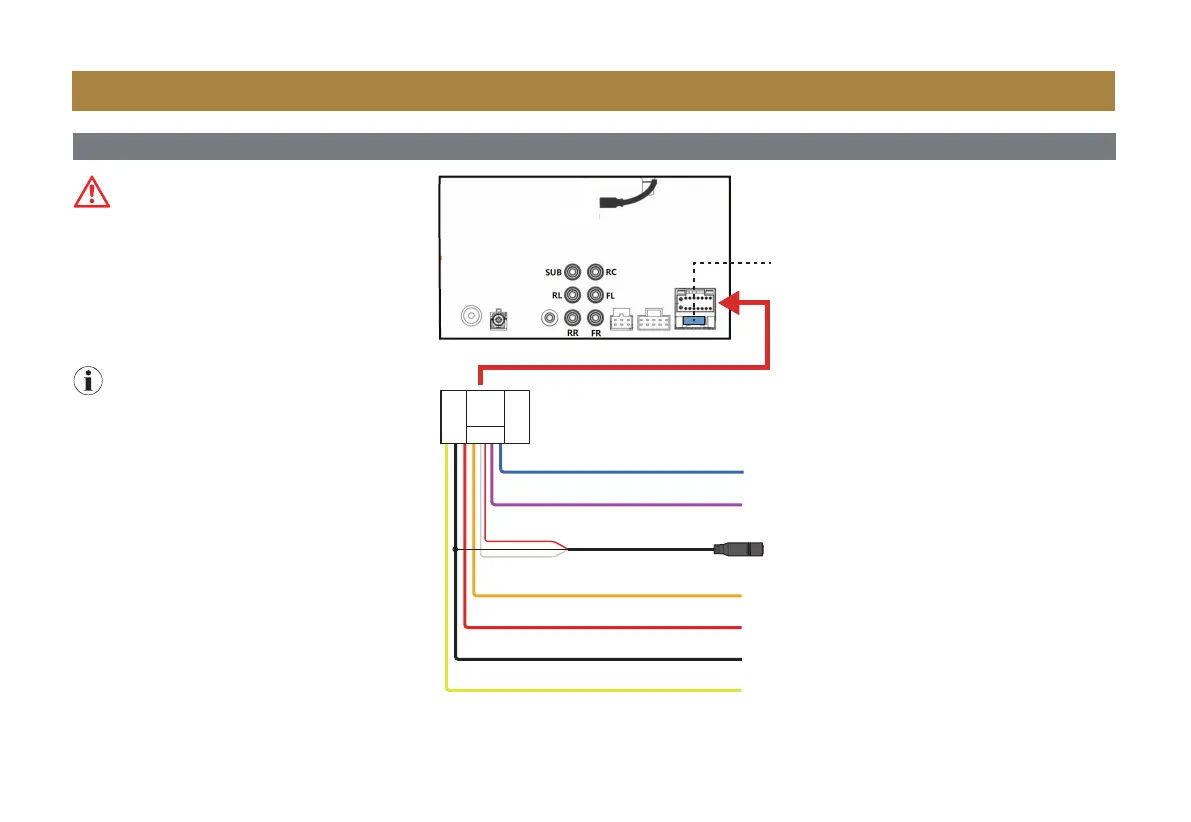

15A Mini ATM Fuse
(Pre-installed)
Antenna Output (Blue)
Reverse Input (Purple/white)
SWC Input (Black)
Illuminaon Input (Orange)
Accessory (Red)
Ground (Black)
Constant (Yellow)
To a car antenna (not included)
To reverse light for backup camera trigger
To a steering wheel control adapter (not included)
To vehicle’s parking light
To ignion key switch (+12V)
To vehicle’s metal frame/car chassis
To posive car baery terminal (+12V)
Red
White
