st model Fox - Test the Elevator

NOTE: If the movement of aileron works in opposite position, please check the
aileron reverse switch on the transmitter and make necessary alignment.
5
(1)、Move the rudder control stick to the left, the rudder turns to the left .
(2)、Move the rudder control stick to the right, the rudder turns to the right
.
(3)、Move the rudder control stick to its neutral position, the rudder returns its
neutral position .
NOTE: If the movement of rudder works in opposite position, please check the rudder
reverse switch on the transmitter and make necessary alignment.
、Test the rudder:

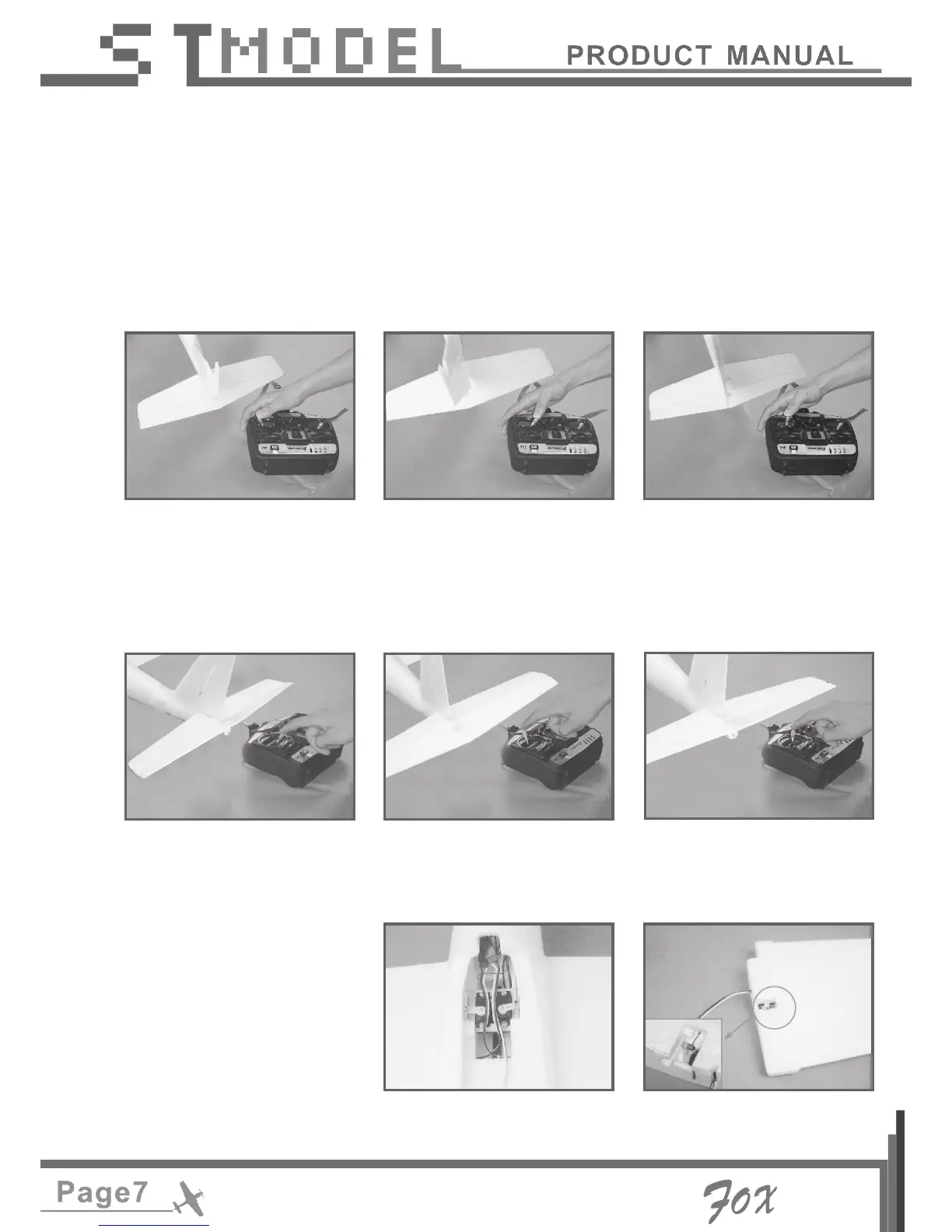

(PIC.36)
(PIC.37)
(PIC.38)
6
(1)、Move the elevator control stick backward, the elevator will be up .
(2)、Move the stick forward, the elevator will be down .
(3)、Move the stick to its neutral position, the elevator returns its neutral position
.
NOTE: If the movement of elevator works in opposite position, please check the
elevator reverse switch on the transmitter and make necessary alignment.
、Test the elevator:
(PIC.39)
(PIC.40)
(PIC.41)
WARMNING: Please check if the aileron, rudder, elevator can be neutral position while the
stick & trim is at the neutral. If not, then, untie each adjuster screw of the servo
horns, adjust the length of the pushrod, and then tighten the screws to avoid the
pushrod loose .
If loose of the pushrod,
then lead the airplane to
unstable, and result in
crash.
(PIC.42,PIC.43)
(PIC.36)
(PIC.41)
(PIC.37) (PIC.38)
(PIC.39) (PIC.40)
(PIC.43)(PIC.42)
