6.1 STM32H5 Nucleo-144 board layout

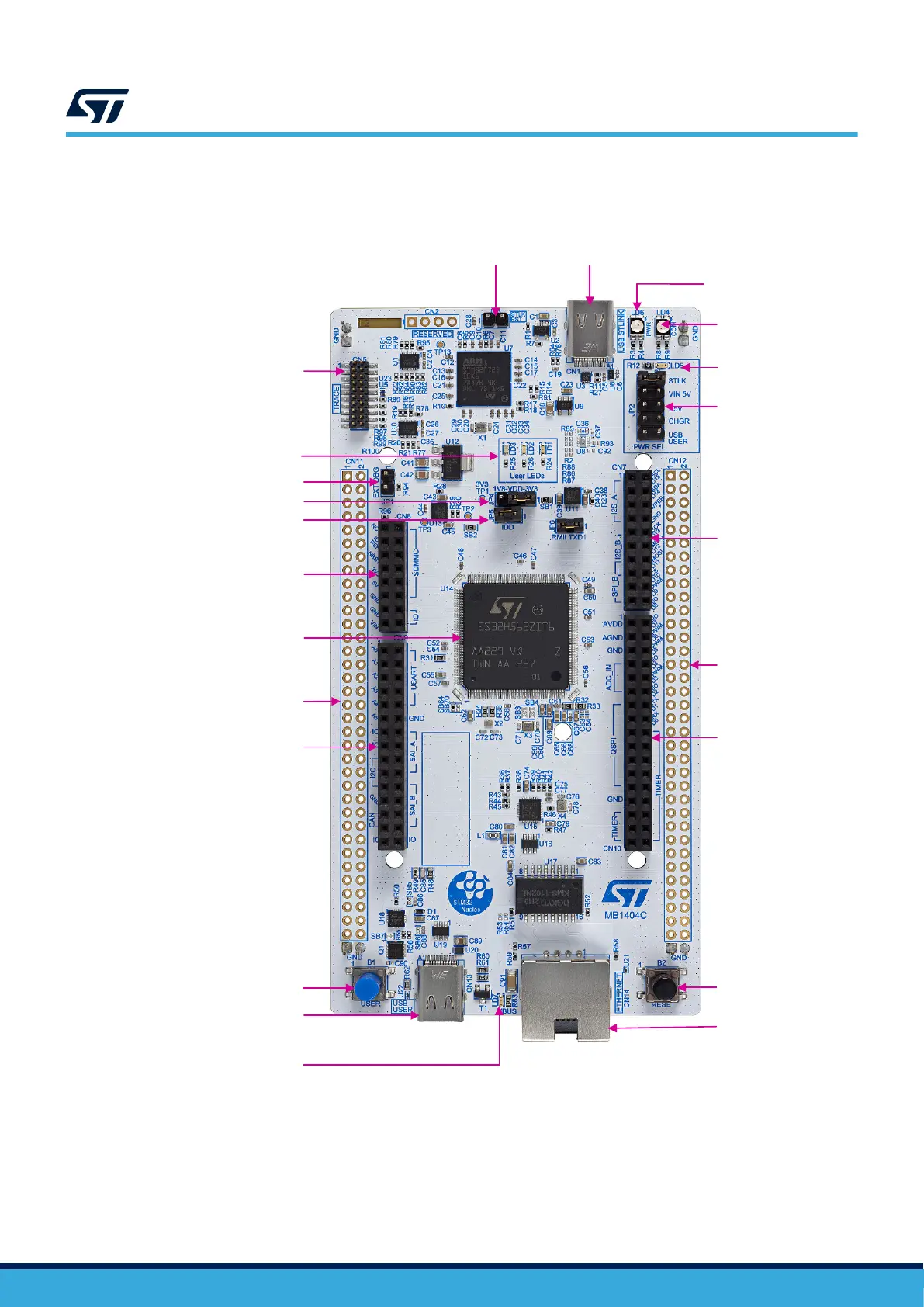

Figure 4. STM32H5 Nucleo-144 board top layout
DT59061V1
ST-LINK RST (JP3)
User USB connector (CN13)
ST-LINK USB Type-C
®
connector (CN1)
ST-LINK COM LED (LD4)
ST-LINK power status LED (LD6)
Power LED (LD5) (green)
Power source selection (JP2)
ZIO connector (CN7)
ST morpho pin header (CN12)
ZIO connector (CN10)
Reset button (B2)
Ethernet RJ45 connector
(CN14)
User button (B1)
USB V
BUS
LED (LD7)
ZIO connector (CN9)
ST morpho pin header (CN11)
STM32 microcontroller (U14)
ZIO connector (CN8)
VDD_MCU power selection (JP4)
IDD measurement (JP5)
External debug (JP1)
User LEDs (LD1-LD3)
MIPI20 connector (CN5)
UM3115
STM32H5 Nucleo-144 board layout
UM3115 - Rev 1
page 8/43
